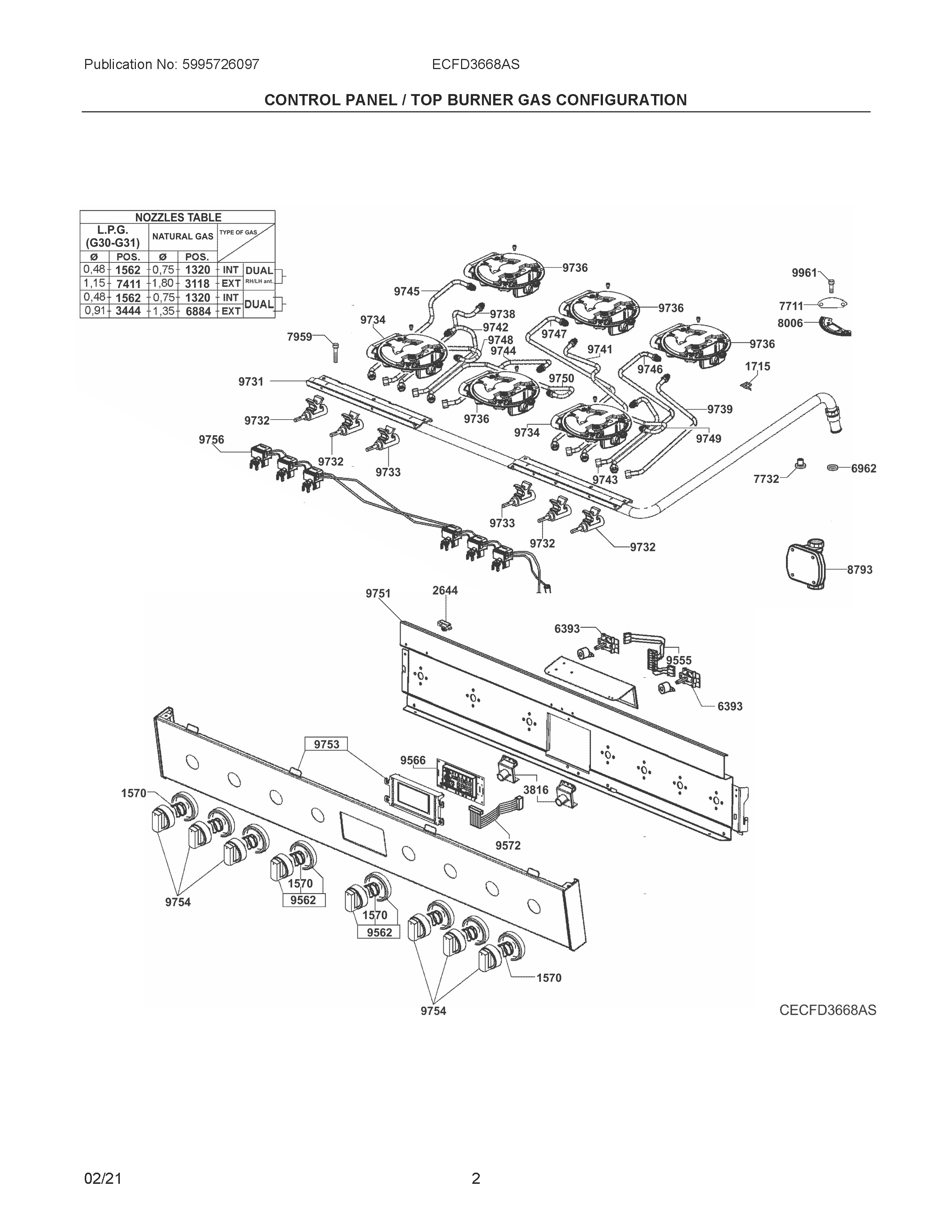

ECFD3668AS 02 – CONTROL PANEL / TOP BURNER GAS CONFIGURATION

ECFD3668AS 02 – CONTROL PANEL / TOP BURNER GAS CONFIGURATION

Written by

in

ECFD3668AS 02 – CONTROL PANEL / TOP BURNER GAS CONFIGURATION

Products

PositionProduct
13205304527459 Frigidaire Orifice
15625304527467 Frigidaire Orifice
15705304527483 Frigidaire Spring
1715SPRING CLIP, BURNER
2644CLAMP, CABLE, (2)
3118ORIFICE, NATURAL GAS, D.1, 80-18K BTU, EXTERNAL, (2), DUAL BURNER
34445304527696 Frigidaire Orifice
38165304527472 Frigidaire Support
63935304527476 Frigidaire Switch
6884ORIFICE, NATURAL GAS, D.1, 35-12K BTU
69625304527447 Frigidaire Seal
74115304527438 Frigidaire Orifice
7711PLATE, BURNER
7732CAP, GAS PIPE
7959SCREW
80065304527505 Frigidaire Gasket
87935304527531 Frigidaire Regulator
95555304527536 Frigidaire Harness
95625304527537 Frigidaire Knob Assembly
95665304527538 Frigidaire Appliance Controller
95725304532116 Frigidaire Harness
97315304527749 Frigidaire Manifold
97325304527750 Frigidaire Valve
97335304527544 Frigidaire Valve
97345304527545 Frigidaire Holder Assembly
97365304527751 Frigidaire Assembly Holder
9738WCI 5304527752
9739WCI 5304527753
9741WCI 5304527754
9742WCI 5304527755
9743WCI 5304527756
9744WCI 5304527757
9745WCI 5304527758
9746WCI 5304527759
9747WCI 5304527760
9748WCI 5304527761
9749WCI 5304527762
9750WCI 5304527763
9751WCI 5304527764
97535304527765 Frigidaire Control Panel
9754WCI 5304527549
9756WCI 5304527767
9961WCI 5304527449
