ECFD3668AS 03 – BODY

ECFD3668AS 03 – BODY

Written by

in

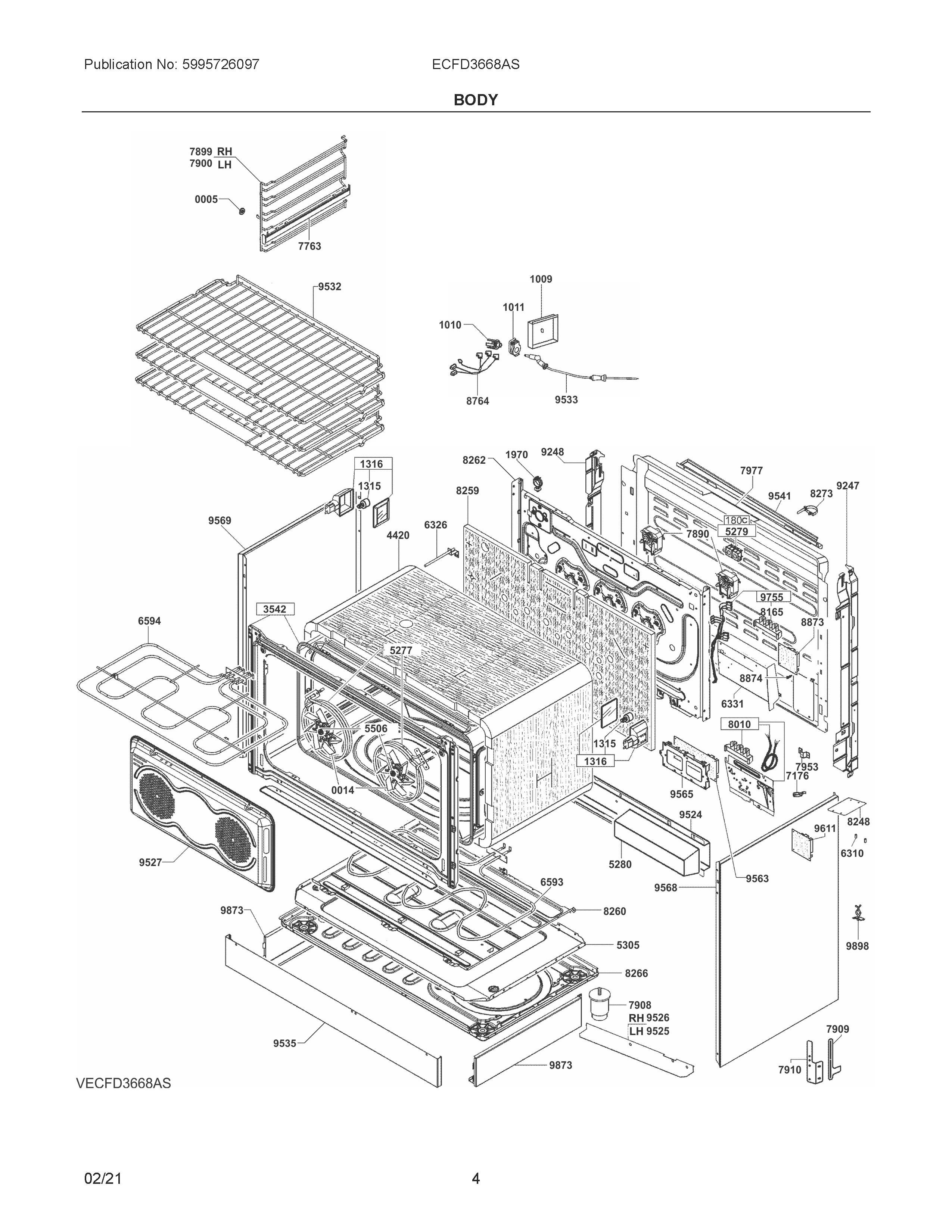

ECFD3668AS 03 – BODY

Products

PositionProduct
5BUSHING, RACK SUPPORT, (4)
145304527454 Frigidaire Blade
1009SHIELD, PROBE, PROTECTION BOX
10105304527481 Frigidaire Receptacle Assembly
1011COVER, RECEPTACLE, MEAT PROBE
1315BULB, OVEN LAMP, HALOGEN, 40W, 120V, (2)
1316LAMP ASSEMBLY, HALOGEN, OVEN, 40W, 120V, (2), W/BULB
1970CLAMP, CABLE, (6)
3542LINER, OVEN CAVITY
4420INSULATION, OVEN WRAPPER
5277ELEMENT, CONVECTION, 3380W, (2)
52795304527474 Frigidaire Thermostat
5280COUNTERWEIGHT, (2)
5305SHIELD, HIDDEN BAKE, LOWER
55065304527436 Frigidaire Nut
6310SPACER, (4)
63265304527492 Frigidaire Probe
63315304527494 Frigidaire Power Electronics
6593ELEMENT, HIDDEN BAKE, 3300W, LOWER
6594ELEMENT, BROIL, UPPER, 3300W
7176CLAMP, HOSE, RTE12000
77635304527498 Frigidaire Glide Kit
7890WCI 5304527722
7899LADDER SUPPORT, OVEN RACK, RH
7900LADDER SUPPORT, OVEN RACK, LH
79085304527725 Frigidaire Foot Assembly
79095304533551 Frigidaire Bracket and Hook Assembly
7953BRACKET, ATTACHMENT
7977PANEL, MAIN BACK
8010FEEDER CABLE, ASSEMBLY, W/WIRING-PANEL
81655304527478 Frigidaire Block Terminal
8248SHIELD, FEEDER BOARD
8259INSULATION, OVEN BACK
8260BURNER BOX, SUPPORT, HIDDEN BAKE
8262PANEL, OVEN BACK, SUPPORT
82665304527703 Frigidaire Base Assembly
8273WCI 5304527697
87645304527530 Frigidaire Harness
88735304531582 Frigidaire PC Board
8874SPACER, PC BOARD, (5)
9247WCI 5304527457
9248WCI 5304527458
95245304528981 Frigidaire Support
9525WCI 5304527731
9526WCI 5304527732
9527WCI 5304527733
95325304527737 Frigidaire Rack
95335304527535 Frigidaire Probe
95355304527738 Frigidaire Panel
9541WCI 5304527740
95635304527742 Frigidaire PC Board
9565WCI 5304527743
95685304527744 Frigidaire Panel
95695304527745 Frigidaire Panel
96115304527540 Frigidaire PC Board
9755WCI 5304527766
98735304527771 Frigidaire Cover Kit
9898WCI 5304527444
