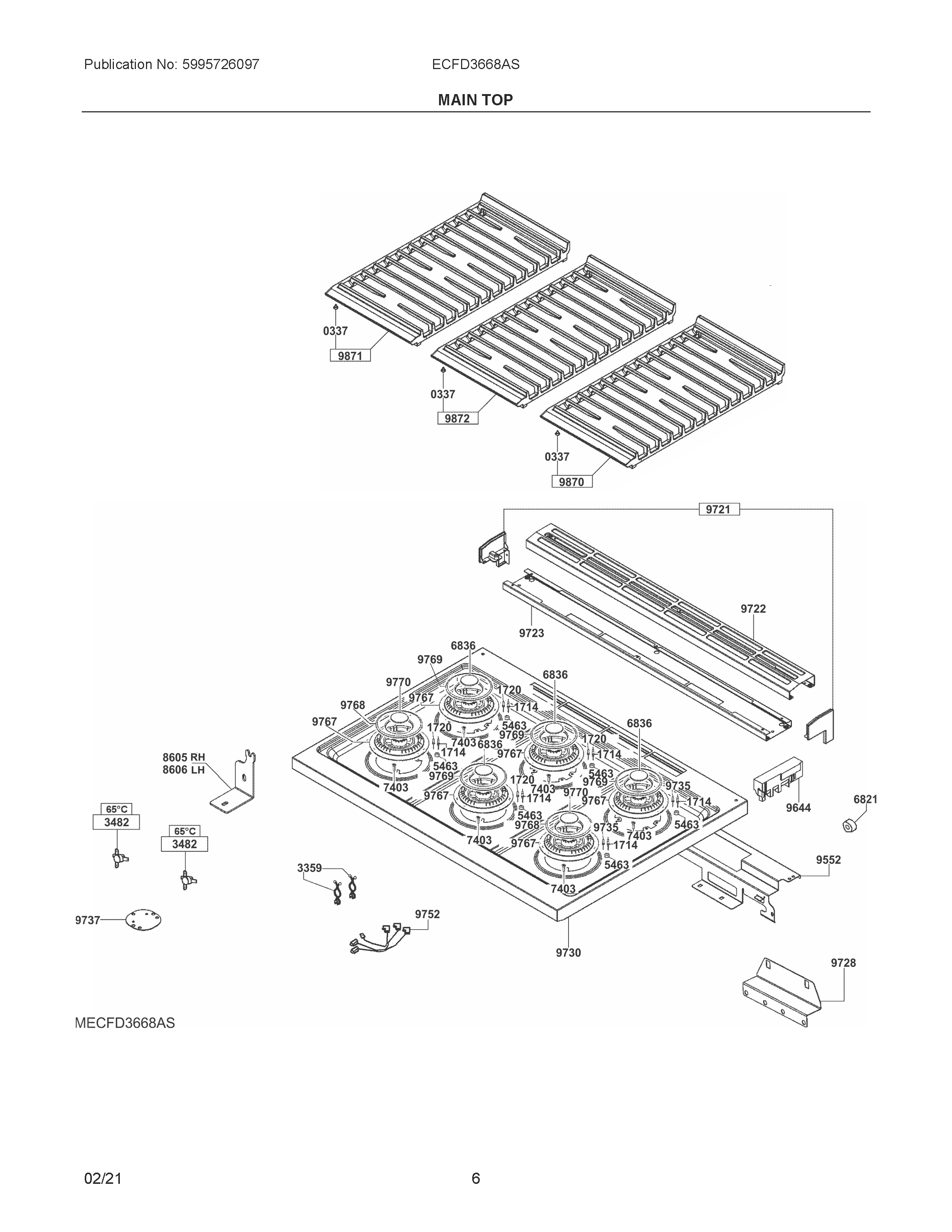

ECFD3668AS 04 – MAIN TOP

ECFD3668AS 04 – MAIN TOP

Written by

in

ECFD3668AS 04 – MAIN TOP

Products

PositionProduct
3375304531583 Frigidaire Foot
17145304527484 Frigidaire Thermocouple Sensor
17205304527715 Frigidaire Igniter
3359CLIP, WIRING, SPARK IGNITOR
34825304527486 Frigidaire Thermostat
5463NUT, THERMOCOUPLE, TOP BURNER
6821SPACER, FRAME, REAR, (2)
68365304527495 Frigidaire Cap
7403SCREW, BURNER, M4 X 8
8605BRACKET, RH
86065304527729 Frigidaire Bracket
9552SUPPORT, COOK TOP, REAR
96445304527443 Frigidaire Module
97215304527541 Frigidaire Bracket Side
97225304527746 Frigidaire Trim
97235304530061 Frigidaire Trim Assemblyy
9728BRACKET, SUPPORT, (2)
97305304527748 Frigidaire Maintop
97355304527546 Frigidaire Igniter
9737PLATE, COOK TOP, (2)
97525304527548 Frigidaire Harness Assembly
97675304527550 Frigidaire Burner Assembly
97685304527551 Frigidaire Burner Cap
97695304527552 Frigidaire Burner Cap
97705304527553 Frigidaire Cap
98705304527768 Frigidaire Grate
98715304527769 Frigidaire Grate
98725304527770 Frigidaire Grate
