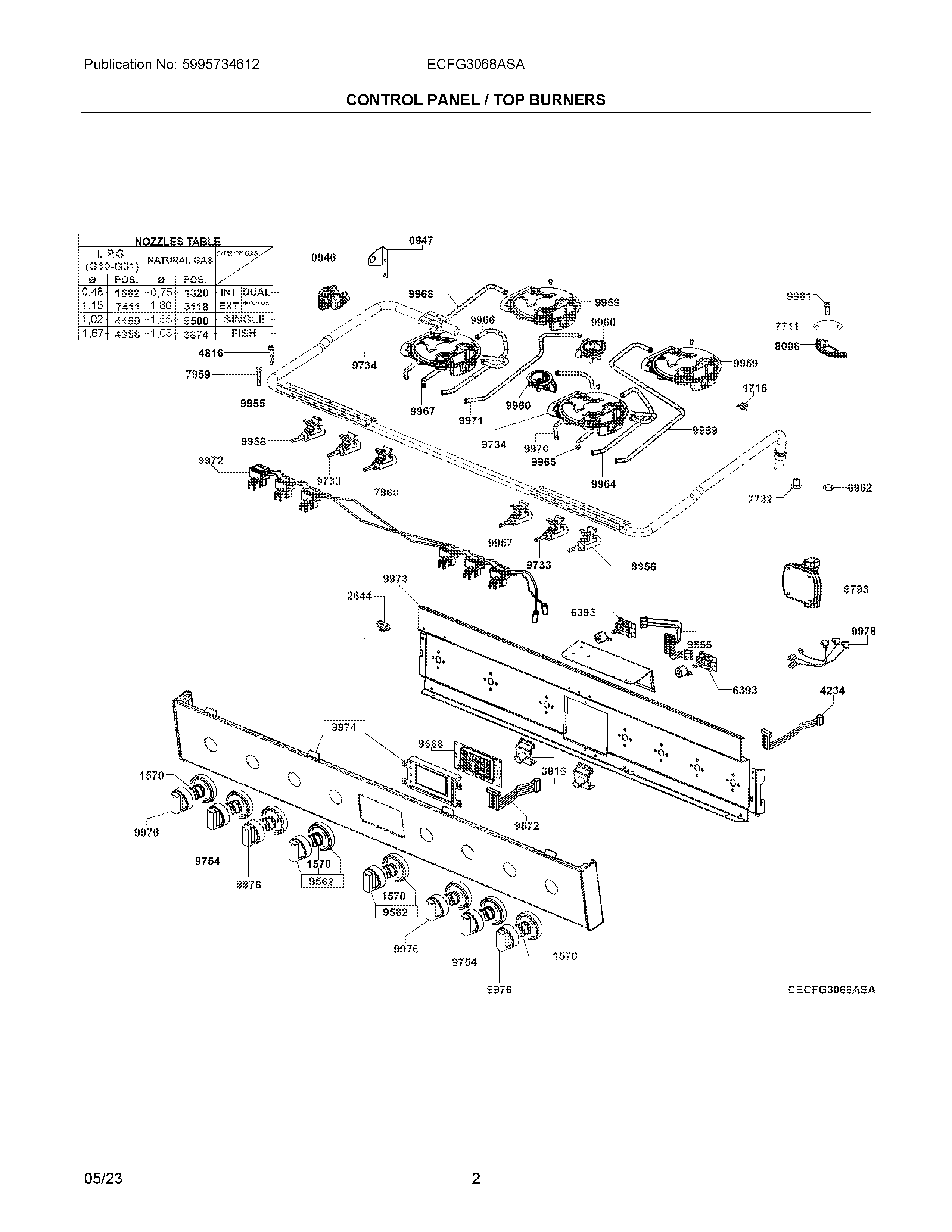

ECFG3068ASA 02 – CONTROL PANEL / TOP BURNERS

ECFG3068ASA 02 – CONTROL PANEL / TOP BURNERS

Written by

in

ECFG3068ASA 02 – CONTROL PANEL / TOP BURNERS

Products

PositionProduct
946VALVE, SOLENOID, 2 WAY
947BRACKET, VALVE SUPPORT
13205304527459 Frigidaire Orifice
15625304527467 Frigidaire Orifice
1570SPRING, KNOB, BURNER
1715SPRING CLIP, BURNER
2644CLAMP, CABLE, (2)
3118ORIFICE, NATURAL GAS, D.1, 80-18K BTU, EXTERNAL, (2), DUAL BURNER
38165304527472 Frigidaire Support
3874ORIFICE, NATURAL GAS, D.1, 08-10K BTU, (2), SINGLE BURNER
42345304527487 Frigidaire Harness
4460ORIFICE, LP GAS, D.1, 02-12K BTU, (2), SINGLE BURNER
4816SCREW, VALVE MTG.
4956ORIFICE, LP GAS, D.0, 67-10K BTU, (2), SINGLE BURNER
63935304527476 Frigidaire Switch
69625304527447 Frigidaire Seal
74115304527438 Frigidaire Orifice
7711PLATE, BURNER
7732CAP, GAS PIPE
7959SCREW
79605304527477 Frigidaire Valve
80065304527505 Frigidaire Gasket
87935304527531 Frigidaire Regulator
9500ORIFICE, NATURAL GAS, D.1, 55-12K BTU, (2), SINGLE BURNER
95555304527536 Frigidaire Harness
95625304527537 Frigidaire Knob Assembly
95665304527538 Frigidaire Appliance Controller
95725304532116 Frigidaire Harness
97335304527544 Frigidaire Valve
97345304527545 Frigidaire Holder Assembly
9754WCI 5304527549
9955WCI 5304532715
99565304527584 Frigidaire Valve
99575304527585 Frigidaire Valve
99585304527586 Frigidaire Valve
9959WCI 5304527587
9960WCI 5304527588
9961WCI 5304527449
9964WCI 5304527592
9965WCI 5304527593
9966WCI 5304527594
9967WCI 5304527595
9968WCI 5304532716
9969WCI 5304527597
9970WCI 5304527598
9971WCI 5304527599
99725304527600 Frigidaire Harness Assembly
9973WCI 5304532717
99745304527602 Frigidaire Control Panel
99765304527603 Frigidaire Knob Assembly
99785304532699 Frigidaire Harness
