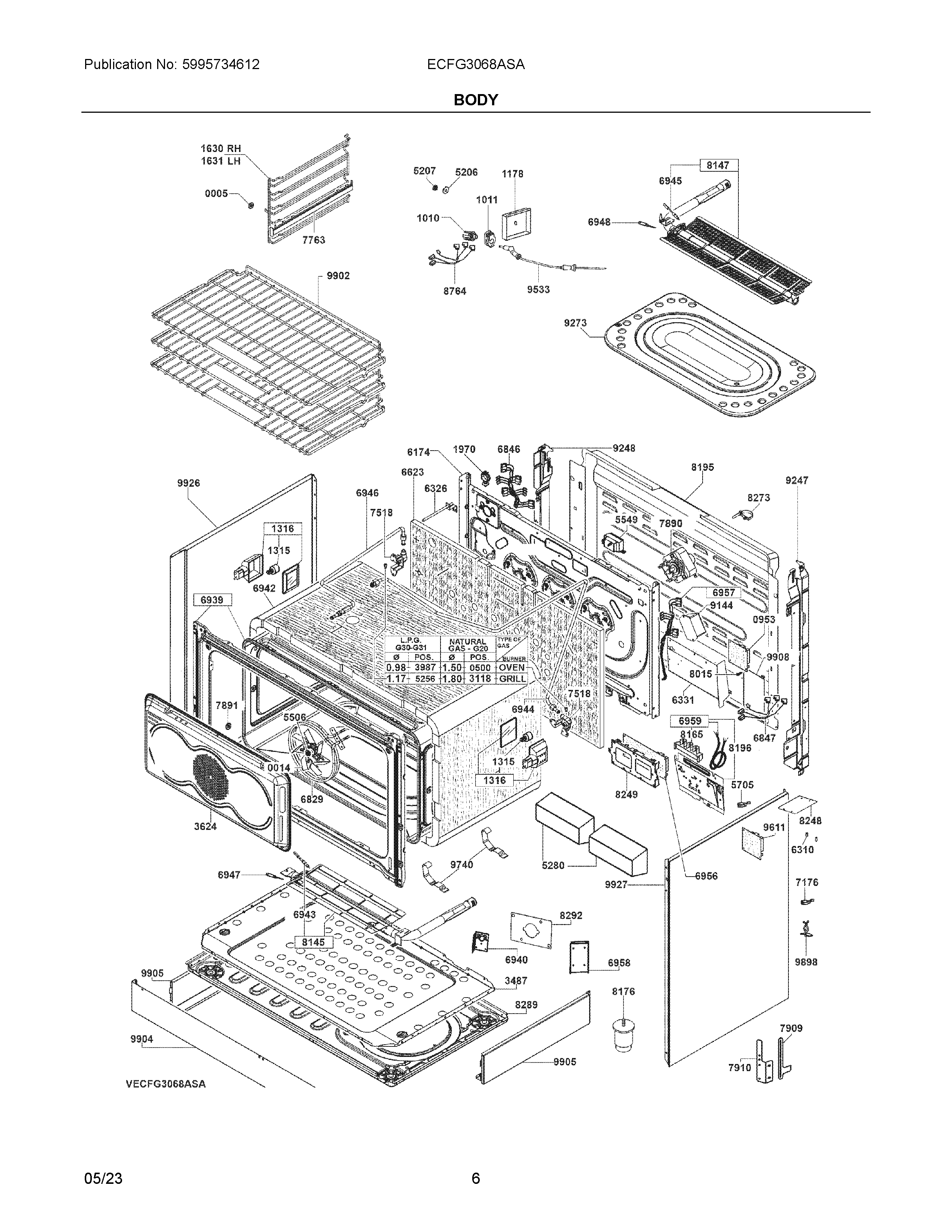

ECFG3068ASA 03 – BODY

ECFG3068ASA 03 – BODY

Written by

in

ECFG3068ASA 03 – BODY

Products

PositionProduct
5BUSHING, RACK SUPPORT, (4)
145304527454 Frigidaire Blade
500NOZZLE, NATURAL GAS, D. 1.50, OVEN BAKE
9535304532685 Frigidaire Pc Board
10105304527481 Frigidaire Receptacle Assembly
1011COVER, RECEPTACLE, MEAT PROBE
11785304531579 Frigidaire Housing
1315BULB, OVEN LAMP, HALOGEN, 40W, 120V, (2)
1316LAMP ASSEMBLY, HALOGEN, OVEN, 40W, 120V, (2), W/BULB
1630TRACK, OVEN RACK, RH
1631TRACK, OVEN RACK, LH
1970CLAMP, CABLE, (6)
3118ORIFICE, NATURAL GAS, D.1, 80-18K BTU, EXTERNAL, (2), DUAL BURNER
3487BURNER BOX, BAKE, BAKE
3624COVER, COVECTION FAN
3987NOZZLE, LP GAS, D. .098, OVEN BAKE
5206WASHER
5207NUT
5256ORIFICE, LP GAS, 1.17, OVEN BURNER
5280COUNTERWEIGHT, (2)
55065304527436 Frigidaire Nut
5549THERMOSTAT
5705CLAMP, WIRING
6174PANEL, BACK, MAIN
6310SPACER, (4)
63265304527492 Frigidaire Probe
63315304527494 Frigidaire Power Electronics
6623INSULATION, OVEN BACK
6829ELEMENT, CONVECTION
6846HARNESS, WIRING, LH SIDE
6847HARNESS, WIRING
6939LINER, OVEN CAVITY
6940GUIDE, OVEN BURNER
6940ACOVER, PROTECTION
6942INSULATION, OVEN WRAPPER
6943IGNITOR, OVEN BURNER
6944TUBE, SUPPLY, OVEN BURNER
6945IGNITOR, GRILL BURNER
6946TUBE, SUPPLY, GRILL BURNER
6947THERMOCOUPLE, OVEN BURNER
6948THERMOCOUPLE, GRILL B
69565304532720 Frigidaire PC Board
6957WCI 5304532721
6958WCI 5304532722
6959WCI 5304532723
7176CLAMP, HOSE, RTE12000
7518WCI 5304532673
77635304527498 Frigidaire Glide Kit
7890WCI 5304527722
7891WCI 5304531574
79095304533551 Frigidaire Bracket and Hook Assembly
8015SPACER, ELECTRONIC UNIT, (3)
8145WCI 5304532687
8147WCI 5304532688
81655304527478 Frigidaire Block Terminal
81765304527518 Frigidaire Assembly Foot
8195PANEL, MAIN BACK
81965304527520 Frigidaire Support
8248SHIELD, FEEDER BOARD
8249WCI 5304532690
8273WCI 5304527697
8289BASE, OVEN BOTTOM
8292WCI 5304532691
87645304527530 Frigidaire Harness
9144WCI 5304527783
9247WCI 5304527457
9248WCI 5304527458
9273WCI 5304532692
95335304527535 Frigidaire Probe
96115304527540 Frigidaire PC Board
9740WCI 5304532681
9898WCI 5304527444
99025304527563 Frigidaire Rack
99045304527564 Frigidaire Plinth
9905WCI 5304527565
9908WCI 5304527568
9926WCI 5304527573
9927PANEL
