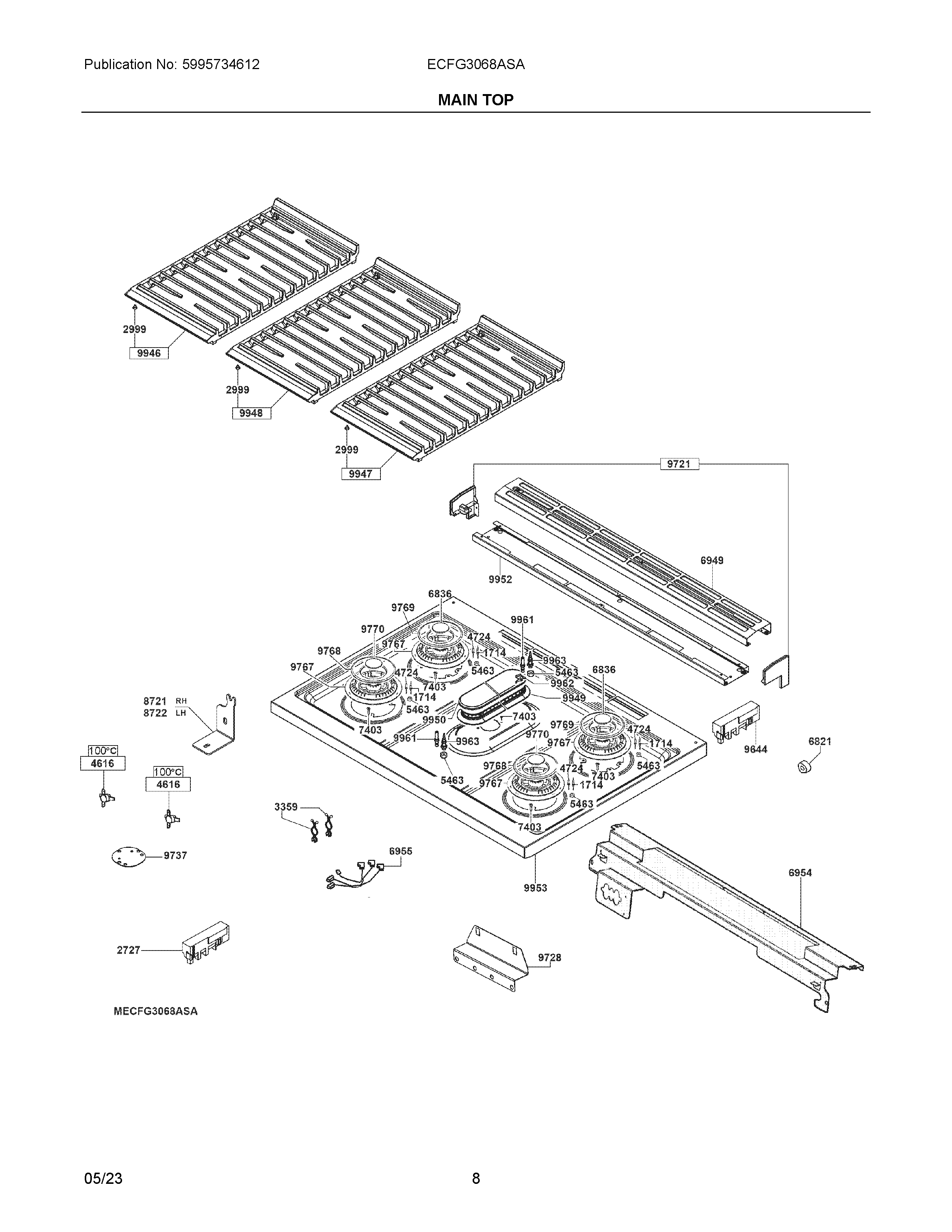

ECFG3068ASA 04 – MAIN TOP

ECFG3068ASA 04 – MAIN TOP

Written by

in

ECFG3068ASA 04 – MAIN TOP

Products

PositionProduct
17145304527484 Frigidaire Thermocouple Sensor
27275304532680 Frigidaire Module
29995304531583 Frigidaire Foot
3359CLIP, WIRING, SPARK IGNITOR
4616THERMOSTAT, SAFETY, 100 DEG C
4724IGNITOR, SPARK, TOP BURNER
5463NUT, THERMOCOUPLE, TOP BURNER
6821SPACER, FRAME, REAR, (2)
68365304527495 Frigidaire Cap
6949TRIM, VENT COVER, REAR
6954SUPPORT, COOKTOP, REAR
6955HARNESS, CABLE, THERMOSTAT
7403SCREW, BURNER, M4 X 8
8721BRACKET, RH
8722BRACKET, LH
96445304527443 Frigidaire Module
97215304527541 Frigidaire Bracket Side
9728BRACKET, SUPPORT, (2)
9737PLATE, COOK TOP, (2)
97675304527550 Frigidaire Burner Assembly
97685304527551 Frigidaire Burner Cap
97695304527552 Frigidaire Burner Cap
97705304527553 Frigidaire Cap
99465304527575 Frigidaire Grate
99475304527576 Frigidaire Grate
9948GRATE, TOP BURNER, BLACK, CENTER, W/BUMPERS
9949BURNER, SUPPORT, CENTER, (2), FLAME SPREADER
9950BURNER CAP
9952BRACKET, REAR TRIM
99535304527582 Frigidaire Maintop
9961IGNITOR, SPARK, CENTER, (2)
9962CLIP, SPRING, (5)
99635304527591 Frigidaire Thermocouple
