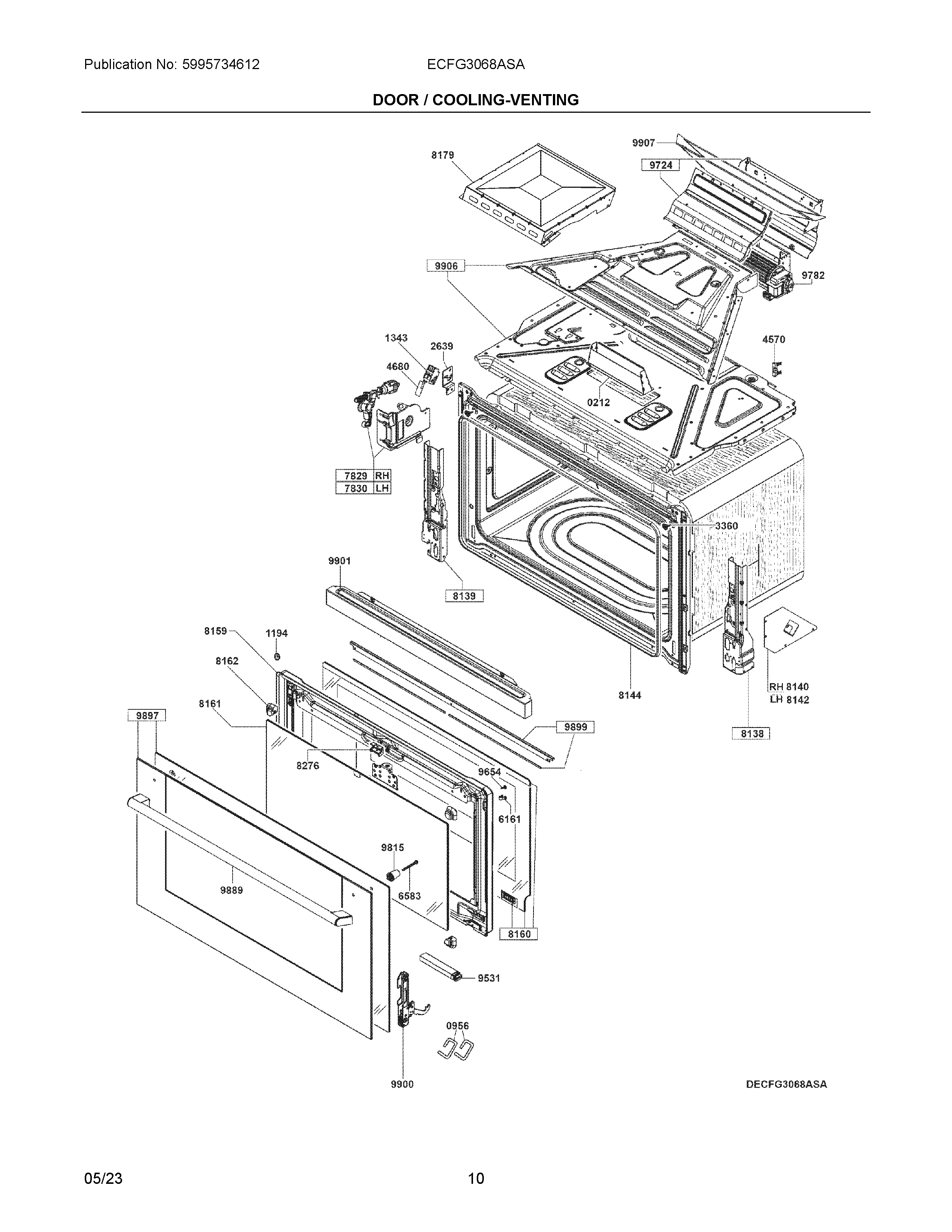

ECFG3068ASA 05 – DOOR / COOLING-VENTING

ECFG3068ASA 05 – DOOR / COOLING-VENTING

Written by

in

ECFG3068ASA 05 – DOOR / COOLING-VENTING

Products

PositionProduct
212CHIMNEY, OVEN VENT
9565304527463 Frigidaire Hook
1194WASHER, DOOR, (2)
13435304527456 Frigidaire Switch
2639BRACKET, MICROSWITCH, DOOR
33605304527471 Frigidaire Bumper
45705304527488 Frigidaire Heater
46805304527473 Frigidaire Lever
6161SPRING, PIVOT FIXING, DOOR, (4)
6583SCREW, TSC ZINC, M5 X 45, (2), DOOR HANDLE
7829SHOCK ABSORBER, ASSEMBLY, DOOR-RH, W/BRACKET
78305304527500 Frigidaire Shock Absorber
8138BRACKET, COLUMN, RH FRONT
8139BRACKET, COLUMN, LH FRONT
8140REINFORCEMENT, COLUMN, RH
8142REINFORCEMENT, COLUMN, LH
8144GASKET, OVEN DOOR
8159FRAME
81605304527515 Frigidaire Door Glass
81615304527516 Frigidaire Glass
81625304527517 Frigidaire Grommet
8179DUCT, COOLING FAN, UPPER
8276CATCH, DOOR LATCH, INNER
9531REINFORCEMENT, DOOR, (2)
96545304527448 Frigidaire Bumper Assembly
9724SUPPORT, ASSEMBLY, COOLING MOTOR
97825304527479 Frigidaire Blower
9815SPACER, DOOR HANDLE, INNER, (2)
9889HANDLE, OVEN DOOR, STAINLESS
98975304527558 Frigidaire Door Assembly
98995304527560 Frigidaire Trim Assembly
9900HINGE, OVEN DOOR, (2)
99015304527562 Frigidaire Toe Plate
9906HOUSING, AIR DUCT
9907EXTENSION, AIR DUCT
