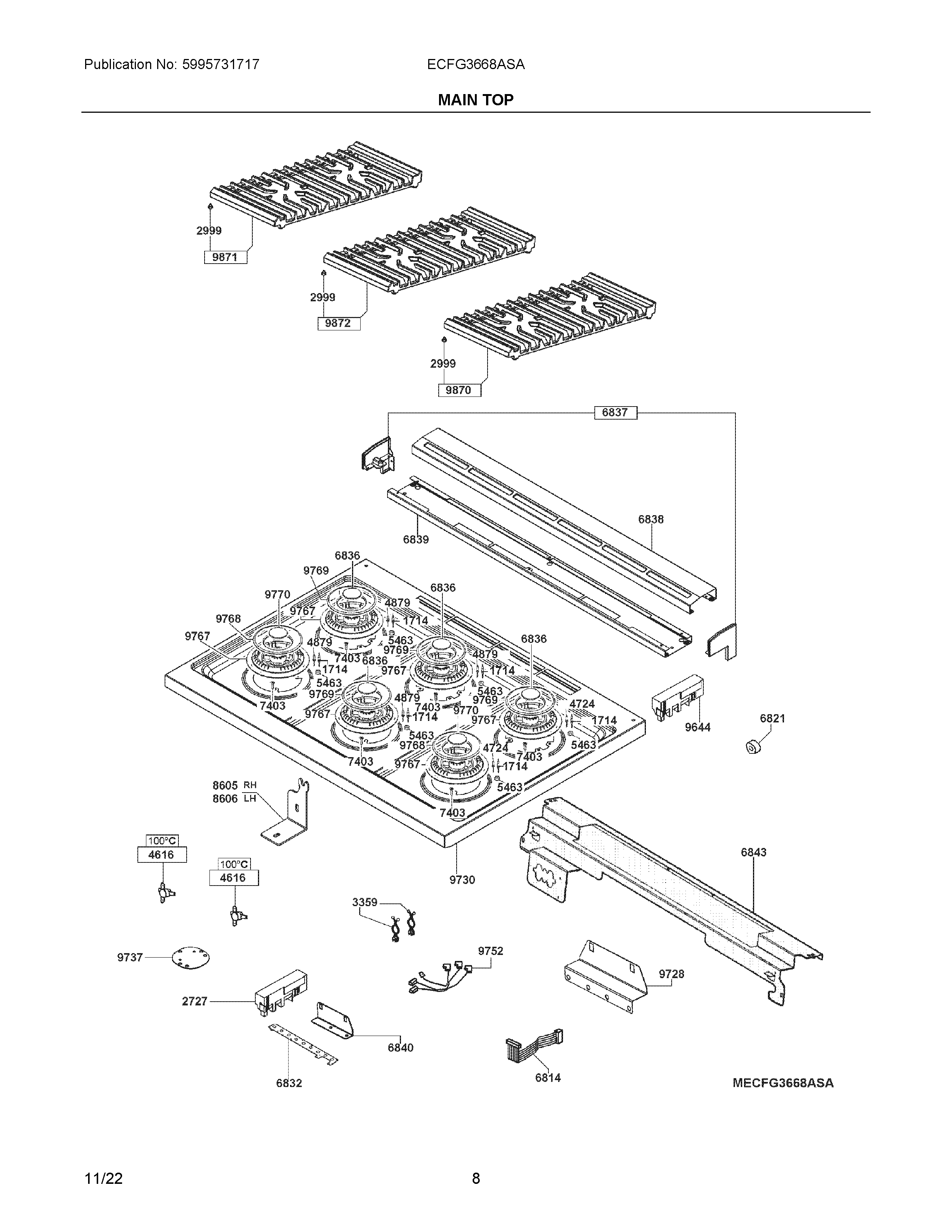

ECFG3668ASA 04 – MAIN TOP

ECFG3668ASA 04 – MAIN TOP

Written by

in

ECFG3668ASA 04 – MAIN TOP

Products

PositionProduct
17145304527484 Frigidaire Thermocouple Sensor
27275304532680 Frigidaire Module
29995304531583 Frigidaire Foot
3359CLIP, WIRING, SPARK IGNITOR
4616THERMOSTAT, SAFETY, 100 DEG C
4724IGNITOR, SPARK, TOP BURNER
4879IGNITOR
5463NUT, THERMOCOUPLE, TOP BURNER
68145304532699 Frigidaire Harness
6821SPACER, FRAME, REAR, (2)
6832BRACKET, MODULE
68365304527495 Frigidaire Cap
6837SIDE BRACKET, ASSEMBLY, REAR TRIM
68385304532752 Frigidaire Trim
68395304532753 Frigidaire Bracket Assembly
68405304532754 Frigidaire Bracket
6843SUPPORT, BACK PANEL
7403SCREW, BURNER, M4 X 8
8605BRACKET, RH
86065304527729 Frigidaire Bracket
96445304527443 Frigidaire Module
9728BRACKET, SUPPORT, (2)
97305304527748 Frigidaire Maintop
9737PLATE, COOK TOP, (2)
97525304527548 Frigidaire Harness Assembly
97675304527550 Frigidaire Burner Assembly
97685304527551 Frigidaire Burner Cap
97695304527552 Frigidaire Burner Cap
97705304527553 Frigidaire Cap
98705304527768 Frigidaire Grate
98715304527769 Frigidaire Grate
98725304527770 Frigidaire Grate
