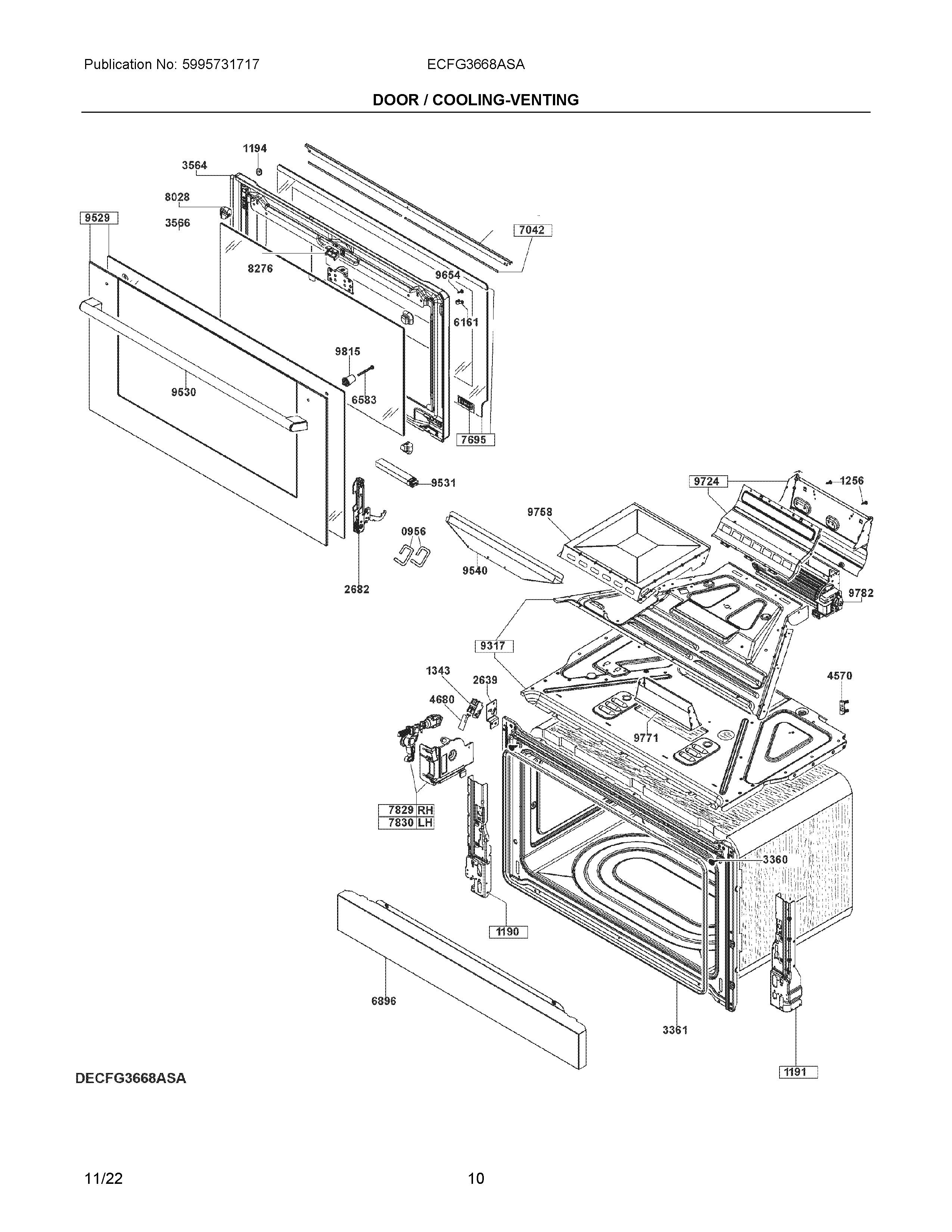

ECFG3668ASA 05 – DOOR / COOLING-VENTING

ECFG3668ASA 05 – DOOR / COOLING-VENTING

Written by

in

ECFG3668ASA 05 – DOOR / COOLING-VENTING

Products

PositionProduct
9565304527463 Frigidaire Hook
1190BRACKET, COLUMN, LH FRONT
1191BRACKET, COLUMN, RH FRONT
1194WASHER, DOOR, (2)
1256BUMPER, RUBBER, REAR, (2), AIR DUCT
13435304527456 Frigidaire Switch
2639BRACKET, MICROSWITCH, DOOR
2682HINGE, OVEN DOOR
33605304527471 Frigidaire Bumper
33615304527709 Frigidaire Gasket
3564FRAME, INNER DOOR
35665304527718 Frigidaire Glass
45705304527488 Frigidaire Heater
46805304527473 Frigidaire Lever
6161SPRING, PIVOT FIXING, DOOR, (4)
6583SCREW, TSC ZINC, M5 X 45, (2), DOOR HANDLE
68965304532761 Frigidaire Panel
7042TRIM ASSEMBLY, DOOR, UPPER
76955304527721 Frigidaire Door Glass
7829SHOCK ABSORBER, ASSEMBLY, DOOR-RH, W/BRACKET
78305304527500 Frigidaire Shock Absorber
8028GROMMET, STOPPER, MIDDLE GLASS, (4)
8276CATCH, DOOR LATCH, INNER
93175304532728 Frigidaire Air Duct
95295304527735 Frigidaire Range Door Assembly
9530HANDLE, OVEN DOOR, STAINLESS
9531REINFORCEMENT, DOOR, (2)
9540EXTENSION, AIR DUCT
96545304527448 Frigidaire Bumper Assembly
9724SUPPORT, ASSEMBLY, COOLING MOTOR
9758AIR DUCT, COOLING MOTOR, UPPER
9771WCI 5304532731
97825304527479 Frigidaire Blower
9815SPACER, DOOR HANDLE, INNER, (2)
