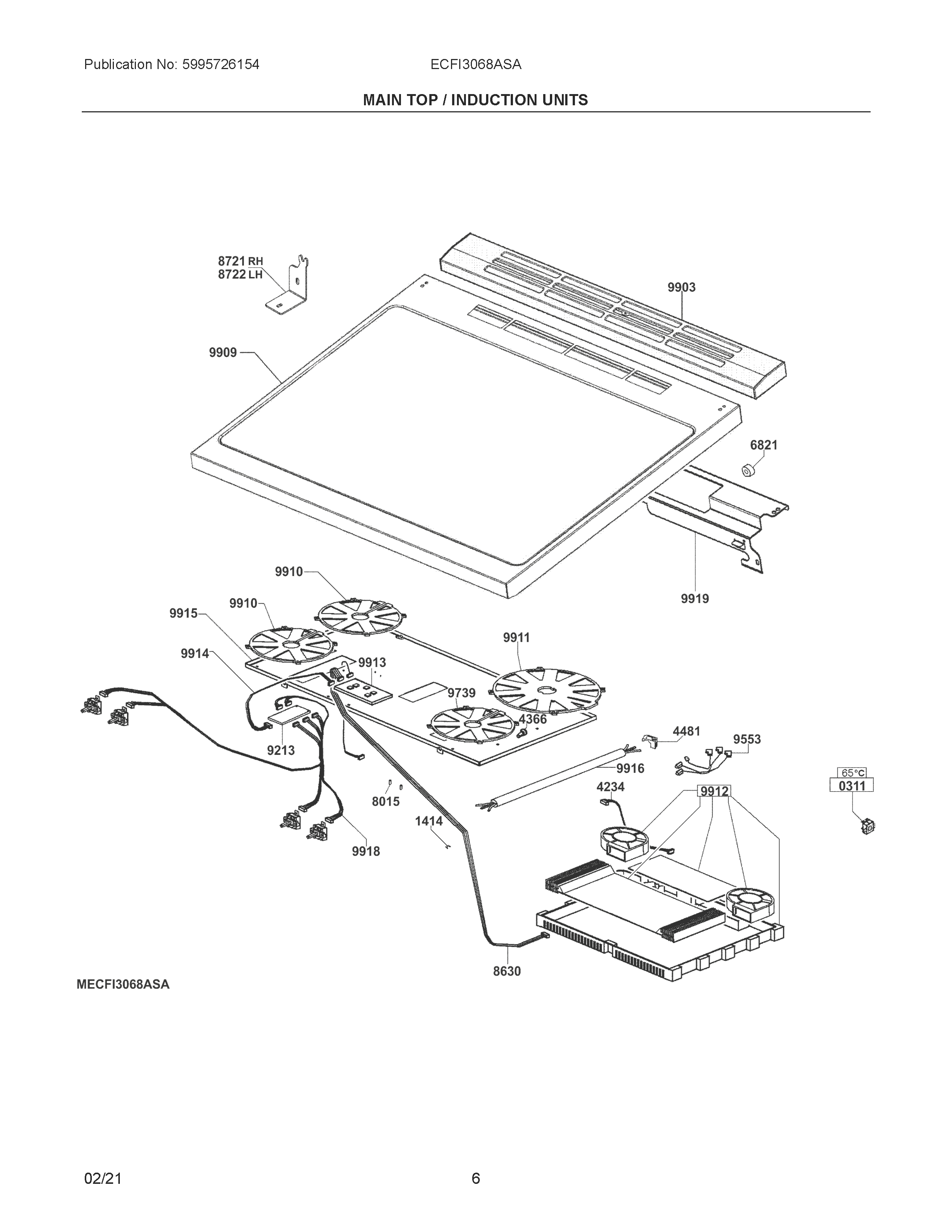

ECFI3068ASA 04 – MAIN TOP / INDUCTION UNITS

ECFI3068ASA 04 – MAIN TOP / INDUCTION UNITS

Written by

in

ECFI3068ASA 04 – MAIN TOP / INDUCTION UNITS

Products

PositionProduct
3115304527778 Frigidaire Thermostat
1414LINK, JUNCTION BOX
42345304527487 Frigidaire Harness
4366SPACER, (7)
4481CLAMP, CABLE
6821SPACER, FRAME, REAR, (2)
8015SPACER, ELECTRONIC UNIT, (3)
86305304527780 Frigidaire Harness
8721BRACKET, RH
8722BRACKET, LH
92135304527777 Frigidaire Pc Board
95535304527786 Frigidaire Harness
9739ELEMENT, INDUCTION, 5 7/10", 1400/2200 WATTS
99035304527790 Frigidaire Trim
9909SMOOTH TOP, ASSEMBLY, GLASS/STEEL, BLACK/STAINLESS
9910ELEMENT
9911ELEMENT, INDUCTION, 8 3/10", 2300/3700 WATTS, (2)
99125304527794 Frigidaire Generator Assembly
99135304527795 Frigidaire PC Board
99145304527796 Frigidaire Harness
9915CARRIER PANEL, INDUCTION UNITS
9916HARNESS, WIRING
99185304527800 Frigidaire Harness
9919SUPPORT, COOK TOP, REAR
