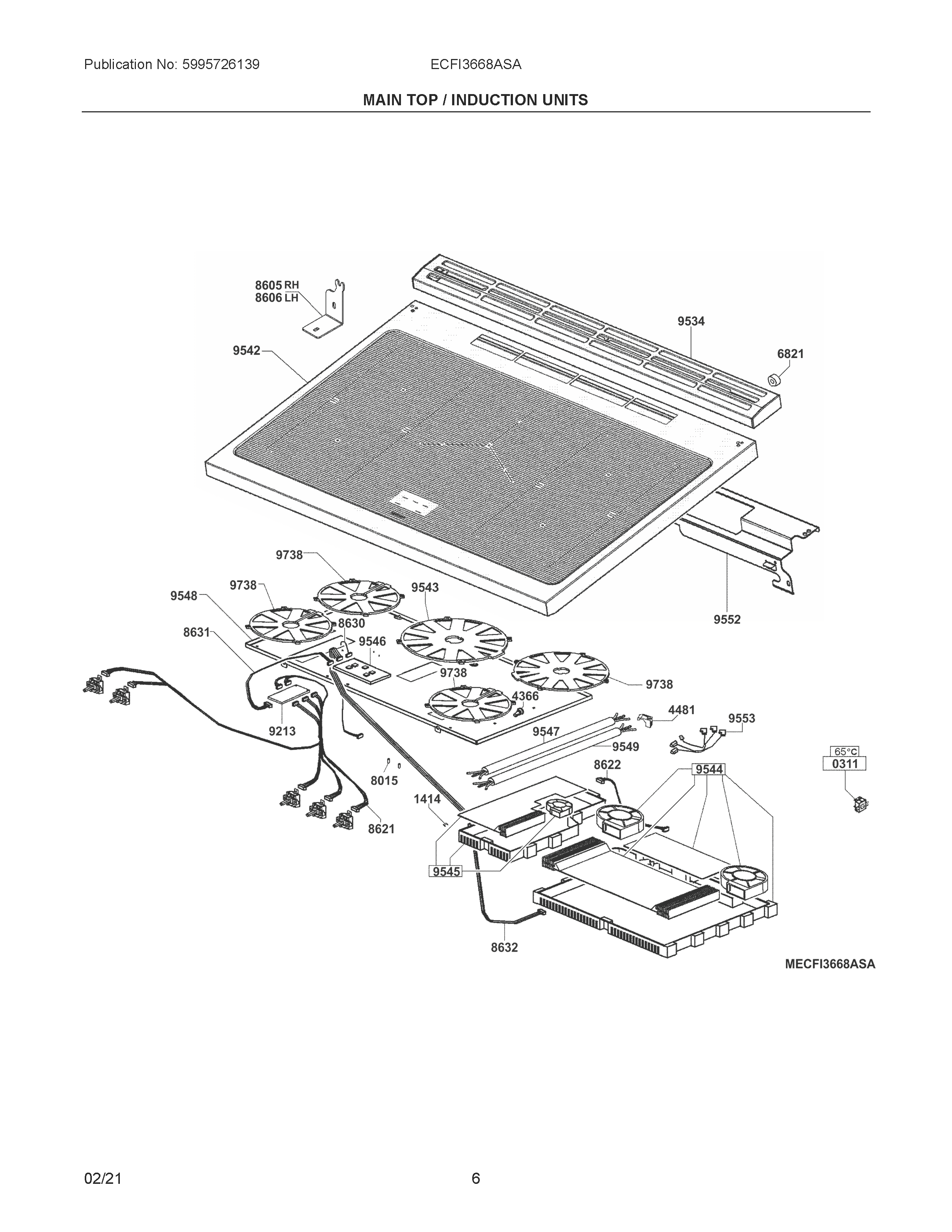

ECFI3668ASA 04 – MAIN TOP / INDUCTION UNITS

Products

PositionProduct
3115304527778 Frigidaire Thermostat
1414LINK, JUNCTION BOX
4366SPACER, (7)
4481CLAMP, CABLE
6821SPACER, FRAME, REAR, (2)
8015SPACER, ELECTRONIC UNIT, (3)
8605BRACKET, RH
86065304527729 Frigidaire Bracket
86215304527805 Frigidaire Harness
8622HARNESS, WIRING, GENERATOR, TO GENERATOR
86305304527780 Frigidaire Harness
86315304527807 Frigidaire Harness
8632HARNESS, WIRING, ELEC. BOARD, TO GENERATOR
92135304527777 Frigidaire Pc Board
95345304527809 Frigidaire Trim
95425304527810 Frigidaire Smooth Top
95435304527811 Frigidaire Element
95445304527812 Frigidaire Generator Assembly
95455304527813 Frigidaire Generator Assembly
95465304527814 Frigidaire PCB Board
95475304527815 Frigidaire Harness
9548CARRIER PANEL, INDUCTION UNITS
95495304527817 Frigidaire Harness
9552SUPPORT, COOK TOP, REAR
95535304527786 Frigidaire Harness
97385304527804 Frigidaire Element
