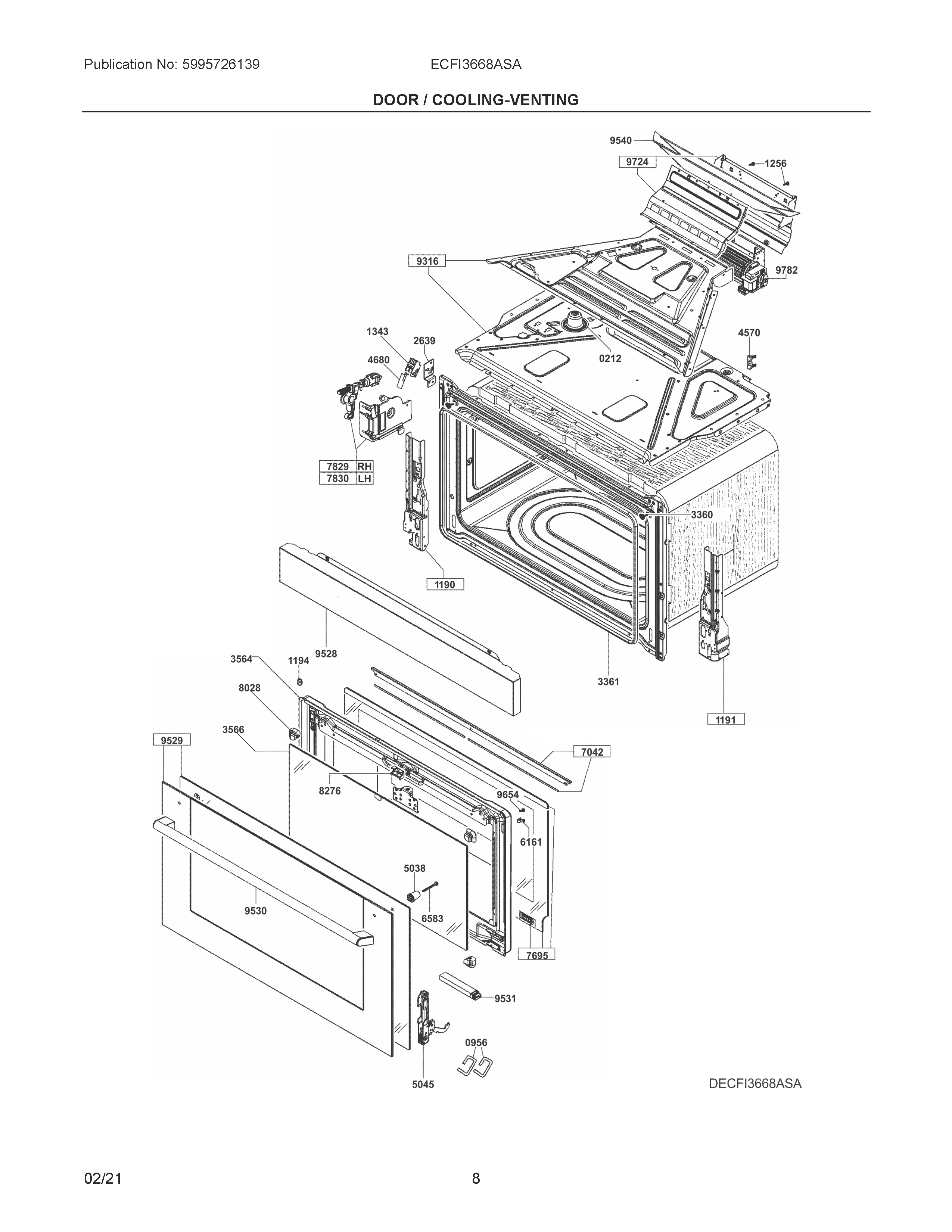

ECFI3668ASA 05 – DOOR / COOLING-VENTING

ECFI3668ASA 05 – DOOR / COOLING-VENTING

Written by

in

ECFI3668ASA 05 – DOOR / COOLING-VENTING

Products

PositionProduct
212CHIMNEY, OVEN CATALYST
9565304527463 Frigidaire Hook
1190BRACKET, COLUMN, LH FRONT
1191BRACKET, COLUMN, RH FRONT
1194WASHER, DOOR, (2)
1256BUMPER, RUBBER, REAR, (2), AIR DUCT
13435304527456 Frigidaire Switch
2639BRACKET, MICROSWITCH, DOOR
33605304527471 Frigidaire Bumper
33615304527709 Frigidaire Gasket
3564FRAME, INNER DOOR
35665304527718 Frigidaire Glass
45705304527488 Frigidaire Heater
46805304527473 Frigidaire Lever
5038SPACER, DOOR HANDLE, INNER, (2)
5045HINGE, OVEN DOOR, (2)
6161SPRING, PIVOT FIXING, DOOR, (4)
6583SCREW, TSC ZINC, M5 X 45, (2), DOOR HANDLE
7042TRIM ASSEMBLY, DOOR, UPPER
76955304527721 Frigidaire Door Glass
7829SHOCK ABSORBER, ASSEMBLY, DOOR-RH, W/BRACKET
78305304527500 Frigidaire Shock Absorber
8028GROMMET, STOPPER, MIDDLE GLASS, (4)
8276CATCH, DOOR LATCH, INNER
9316AIR DUCT, ASSEMBLY, COOLING FAN
95285304532761 Frigidaire Panel
95295304527735 Frigidaire Range Door Assembly
9530HANDLE, OVEN DOOR, STAINLESS
9531REINFORCEMENT, DOOR, (2)
9540EXTENSION, AIR DUCT
96545304527448 Frigidaire Bumper Assembly
9724SUPPORT, ASSEMBLY
97825304527479 Frigidaire Blower
