| WP489069 Whirlpool Compactor Screw |
| WPL LIT628107 |
| WP2158826 Whirlpool Refrigerator Dampener |
| WP488163 Whirlpool Refrigerator Screw |
| WP488366 Whirlpool Refrigerator Clamp |
| WPW10141625 Whirlpool Refrigerator Screw Assembly |
| WP488878 Whirlpool Refrigerator Tube Clamp |
| 4387491 Whirlpool Refrigerator Insert |
| W10823511 Whirlpool Refrigerator Water Tube |
| WP627018 Whirlpool Refrigerator Nut |
| Clamp Tube |
| Nut, Valve |
| Tube, Water Inlet |
| Parts List |
| WP1106508 Whirlpool Refrigerator Gasket |
| Instruction Booklet |
| WP2196157 Whirlpool Fill Tube |
| xWiring Grommet |
| xxAccessory Bag, Inside Parts |
| Tube, Inlet Valve |
| Washer |
| Accessory Bag, Outside Parts |
| Clamp |

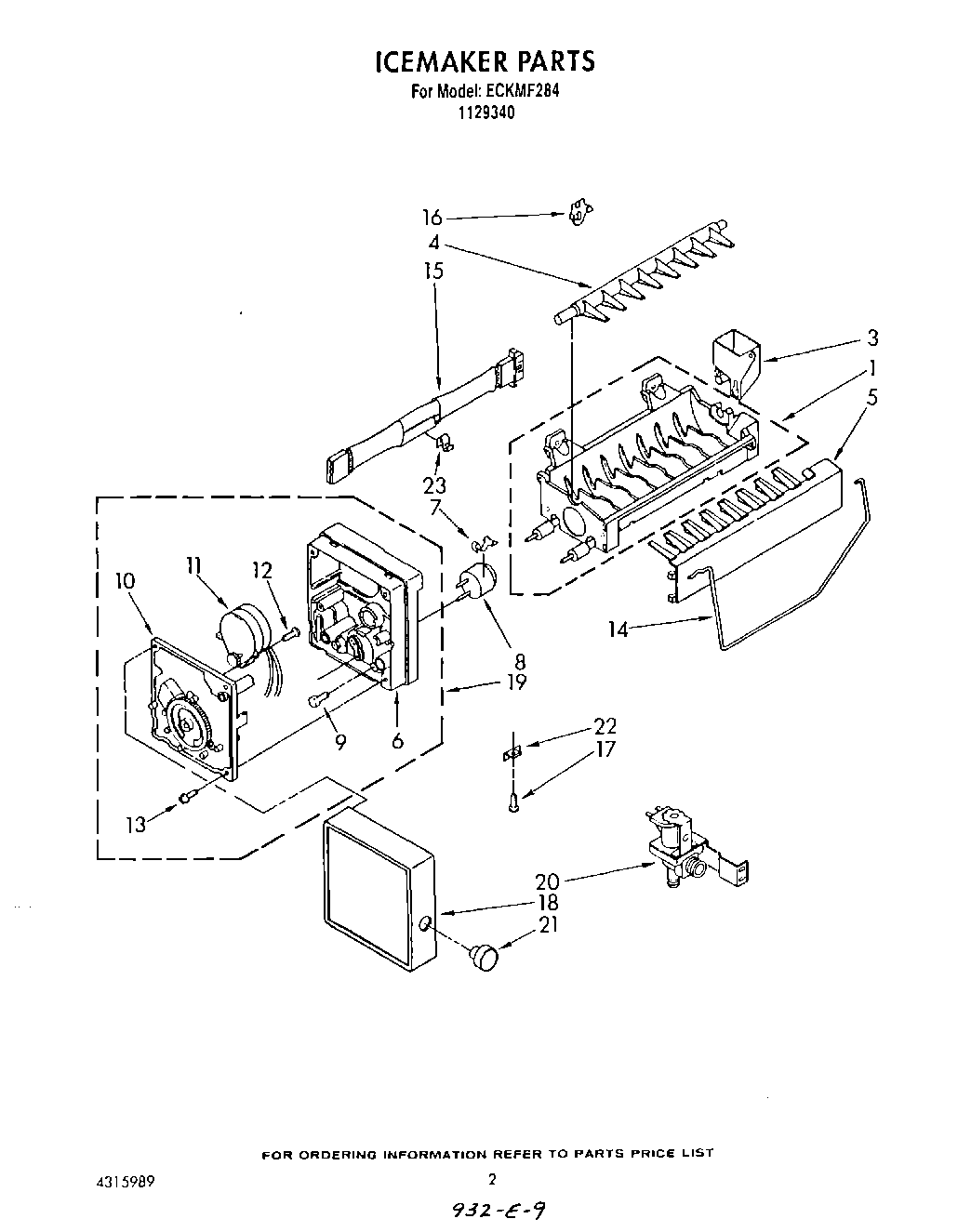

| 1 | WPW10190929 Whirlpool Refrigerator Ice Maker Mold |
| 3 | WP628356 Whirlpool Refrigerator Fill Cup |
| 4 | WP627843 Whirlpool Refrigerator Ejector Arm |
| 5 | WP2182124 Whirlpool Refrigerator Stripper Arm |
| 6 | WP2195914 Whirlpool Refrigerator Ice Maker Housing |
| 7 | WP2315522 Whirlpool Refrigerator Clip |
| 8 | WP627985 Whirlpool Icemaker Cycling Thermostat |
| 9 | 8533917 Whirlpool Refrigerator Screw |
| 12 | 489136 Whirlpool Refrigerator Screw |
| 13 | WP681249 Whirlpool Screw Assembly |
| 14 | WP627792 Whirlpool Refrigerator Shut Off Arm |
| 15 | Wiring, Harness |
| 16 | Support Clip |
| 17 | WP489128 Whirlpool Refrigerator Screw |
| 18 | WPW10289690 Whirlpool Ice Maker Cover |
| 19 | W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly |
| 20 | 4318047 Whirlpool Water Valve |
| 21 | Knob, Water |
| 22 | WP2256087 Whirlpool Refrigerator Bracket |
| 23 | Wiring Assembly, Icemaker |
| 23 | Trim, Ice Pan |
| 23 | PAN-ICE |
| 23 | WP628379 Whirlpool Refrigerator Clip |
