ECKMF64 02 – SECTION

Products

PositionProduct
Parts List
W10823511 Whirlpool Refrigerator Water Tube
WP627018 Whirlpool Refrigerator Nut
WPW10141625 Whirlpool Refrigerator Screw Assembly
Clamp Tube
WPL LIT628107
Clip
Nut, Valve
Washer
xGrommet, Screw (2)
Tube, Inlet Valve
Hole Plug
Accessory Bag, Outside Parts
Accessory Bag, Inside Parts
Instruction Booklet
4387491 Whirlpool Refrigerator Insert
WP488878 Whirlpool Refrigerator Tube Clamp
WP489069 Whirlpool Compactor Screw
WP488366 Whirlpool Refrigerator Clamp
WP2158826 Whirlpool Refrigerator Dampener
SCREW
Tube, Water Inlet

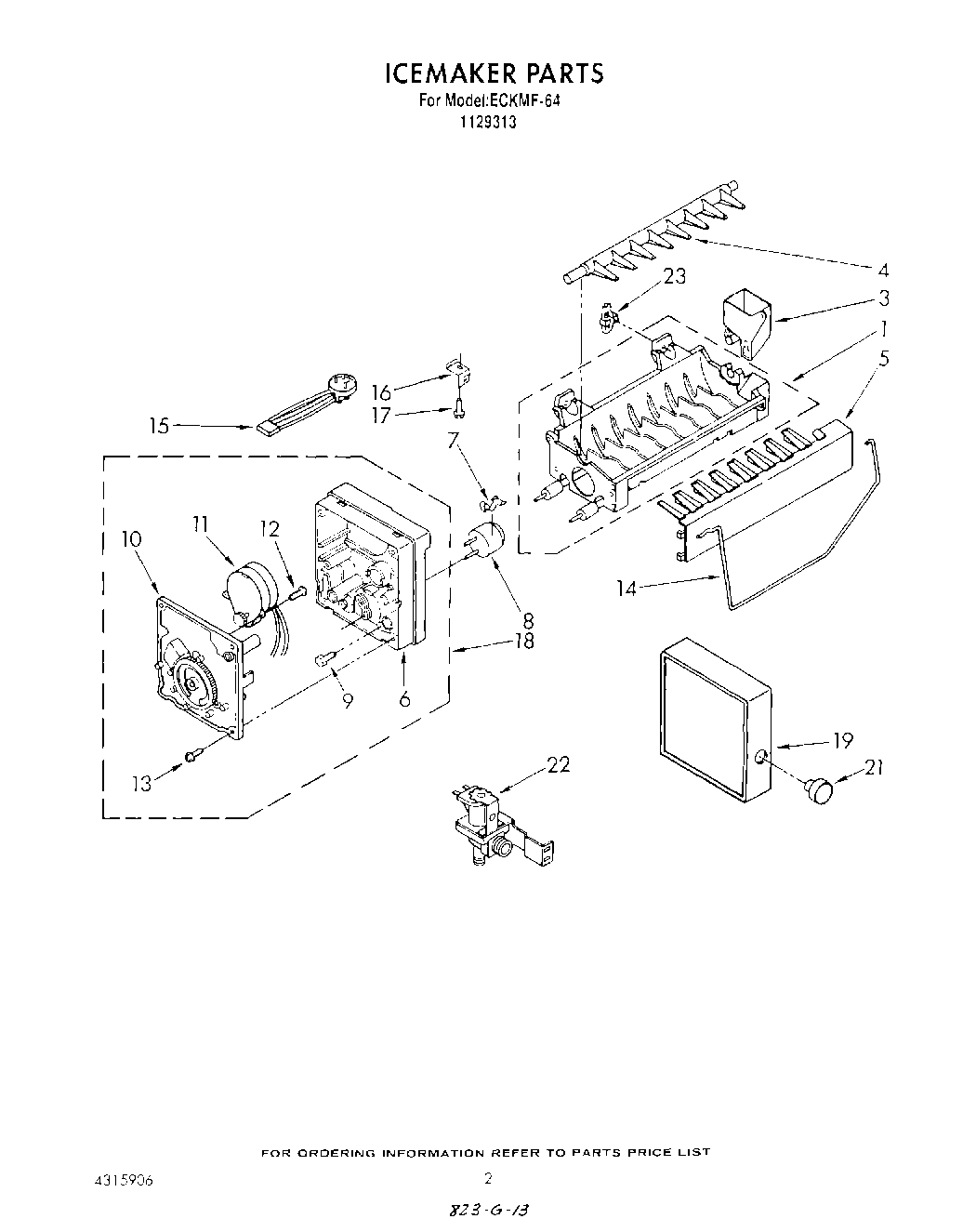

1WPW10190929 Whirlpool Refrigerator Ice Maker Mold
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP627985 Whirlpool Icemaker Cycling Thermostat
98533917 Whirlpool Refrigerator Screw
12489136 Whirlpool Refrigerator Screw
13WP681249 Whirlpool Screw Assembly
14WP627792 Whirlpool Refrigerator Shut Off Arm
15WP628172 Whirlpool Refrigerator Wire Harness
16WP2256087 Whirlpool Refrigerator Bracket
17WP489128 Whirlpool Refrigerator Screw
18W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
19WPW10289690 Whirlpool Ice Maker Cover
21Knob, Water
224318047 Whirlpool Water Valve
23Trim, Ice Pan
23PAN-ICE
23WP627712 Whirlpool Refrigerator Mounting Clip
