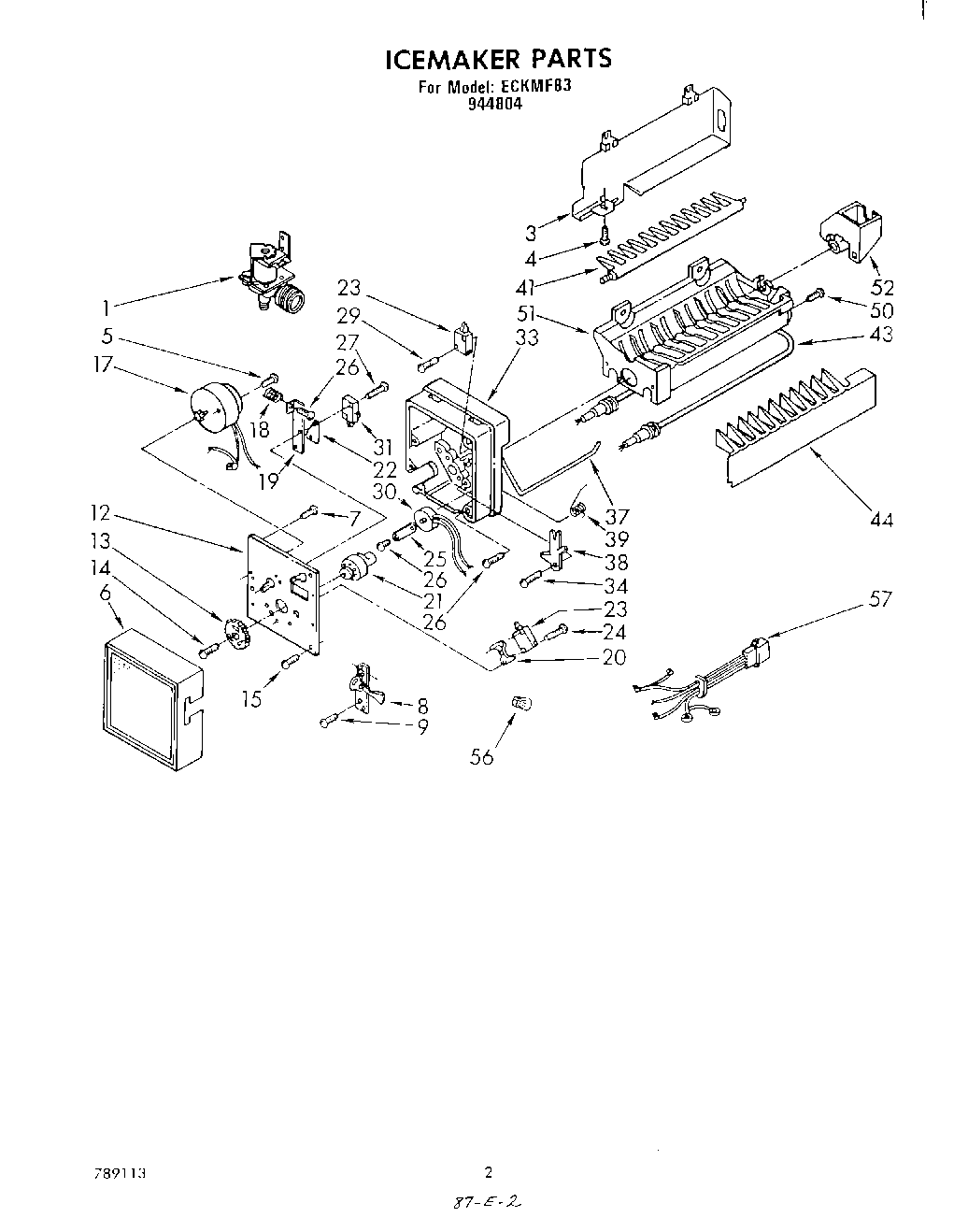

ECKMF83 02 – SECTION

Products

Position	Product
	WP489069 Whirlpool Compactor Screw
	WP2196157 Whirlpool Fill Tube
	Clamp Tube
	WPW10141625 Whirlpool Refrigerator Screw Assembly
	Tube, Inlet Valve
	WP2187501 Whirlpool Refrigerator Wire Harness
	Nut, Valve
	Instruction Booklet
	Tube, Water Inlet
	xxAccessory Bag, Inside
	Accessory Bag, Outside
	WP2158826 Whirlpool Refrigerator Dampener
	549193 Whirlpool Refrigerator Power Clamp
	WP488878 Whirlpool Refrigerator Tube Clamp
	4387491 Whirlpool Refrigerator Insert
	W10823511 Whirlpool Refrigerator Water Tube
	WP627018 Whirlpool Refrigerator Nut
	WP16123 Whirlpool Washer
	WP488366 Whirlpool Refrigerator Clamp
1	4318047 Whirlpool Water Valve
3	Shield, Heat
6	Cover
7	Screw, Ground
8	Lever & Plate Assembly
9	Screw (Use W/Motor 627106)
12	Plate, Mounting
13	Gear
14	Screw
15	WP488787 Whirlpool Refrigerator Screw
17	Motor
18	Spring
19	Plate, Valve Switch
20	Spacer, Switch (2)
21	Cam
22	Tube, Inlet Valve
23	Switch, S.P.D.T. (2)
24	Screw, 4-40 x 1
25	Clamp, Thermostat
26	Screw, 8-32 x 1
27	Screw
29	Screw, 4-24 x 3/4
30	Thermostat
31	Switch, S.P.S.T.
33	Support
34	Screw, Shoulder
37	Arm, Shut-Off
38	Lever, Arm
39	Spring, Shut-Off Arm
41	Ejector
43	Heater, Mold
44	Stripper, Ice
50	Screw, 8-16 x 3/8
51	Mold & Heater Assembly (Includes Illus. 15)
52	Beraing & Inlet
56	Wire Connector
57	PAN-ICE
57	WPL 627750
57	Trim, Ice Pan
