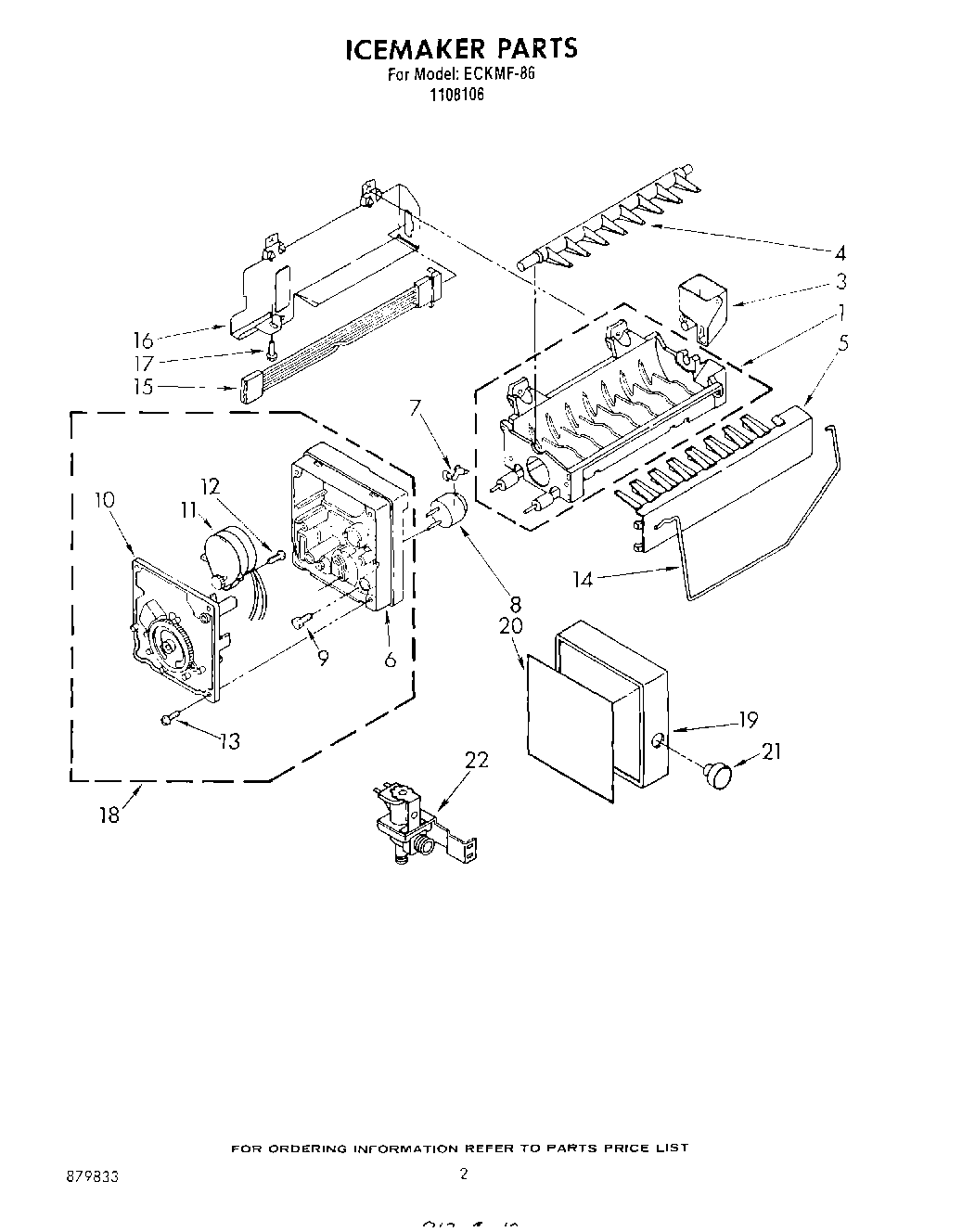

ECKMF86 02 – SECTION

Products

PositionProduct
WP489069 Whirlpool Compactor Screw
WP488366 Whirlpool Refrigerator Clamp
549193 Whirlpool Refrigerator Power Clamp
WP2196157 Whirlpool Fill Tube
WP488878 Whirlpool Refrigerator Tube Clamp
4387491 Whirlpool Refrigerator Insert
W10823511 Whirlpool Refrigerator Water Tube
WP627018 Whirlpool Refrigerator Nut
WPL LIT628107
WPW10141625 Whirlpool Refrigerator Screw Assembly
WP2158826 Whirlpool Refrigerator Dampener
WP16123 Whirlpool Washer
Nut, Valve
Parts List
Tube, Inlet Valve
Instruction Booklet
xxAccessory Bag, Inside
Accessory Bag, Outside Parts
Tube, Water Inlet
Clamp Tube
1WPW10190929 Whirlpool Refrigerator Ice Maker Mold
3WP628356 Whirlpool Refrigerator Fill Cup
4WP627843 Whirlpool Refrigerator Ejector Arm
5WP2182124 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP627985 Whirlpool Icemaker Cycling Thermostat
9WPL 489163
12489136 Whirlpool Refrigerator Screw
13WP681249 Whirlpool Screw Assembly
14WP627792 Whirlpool Refrigerator Shut Off Arm
15WP2187464 Whirlpool Refrigerator Wire Harness
16Shield, Heat
17WP489128 Whirlpool Refrigerator Screw
18W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
20WPW10289690 Whirlpool Ice Maker Cover
21Knob, Water
22Trim, Ice Pan
22WP2187501 Whirlpool Refrigerator Wire Harness
22PAN-ICE
224318047 Whirlpool Water Valve
