ECKMF90 01 – SECTION

Products

Position	Product
	Instruction Booklet
	Modular Icemaker Service Sheet

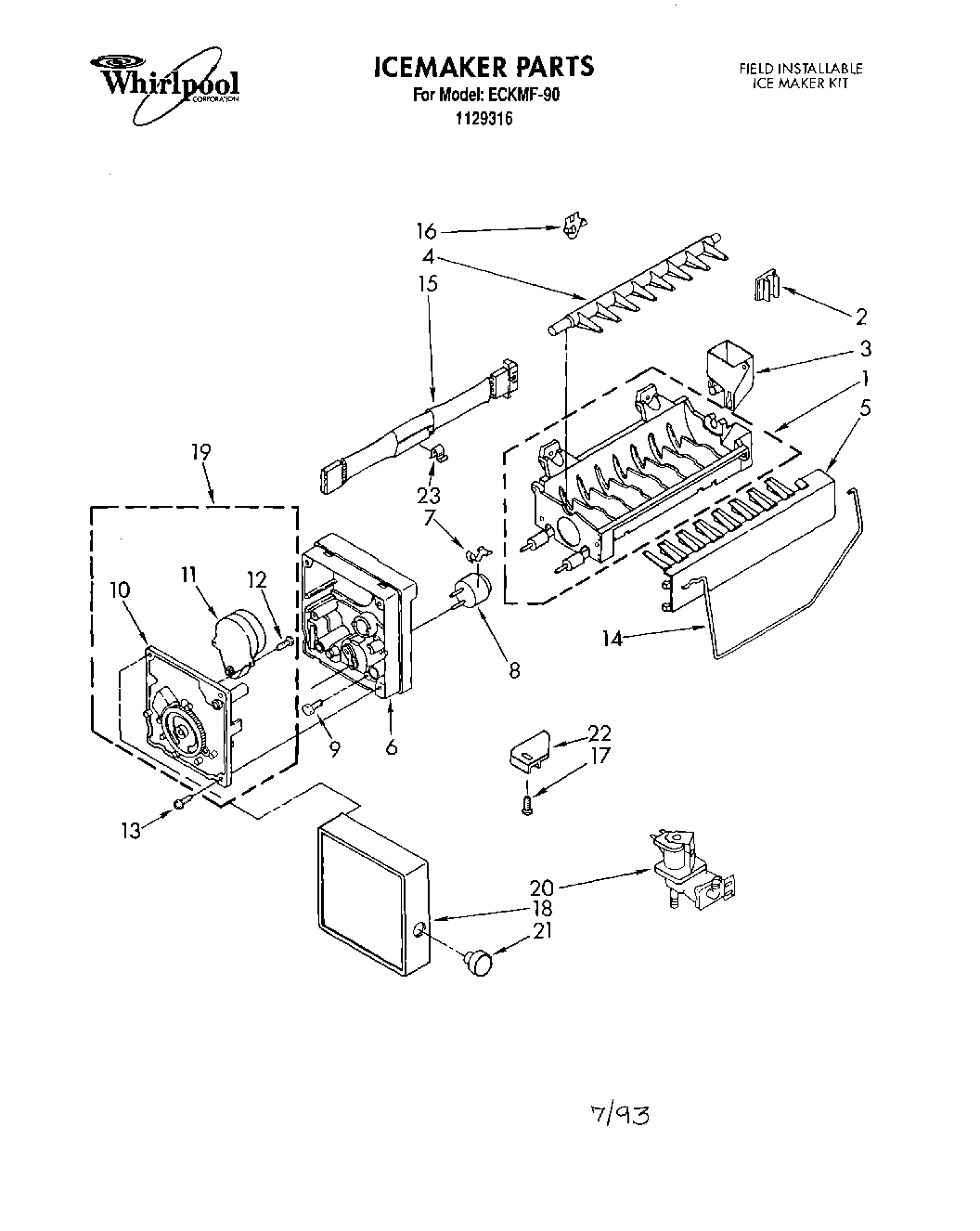

	Parts List
1	WPW10190929 Whirlpool Refrigerator Ice Maker Mold
2	W11501419 Whirlpool Refrigerator Clip
3	WP628356 Whirlpool Refrigerator Fill Cup
4	WP627843 Whirlpool Refrigerator Ejector Arm
5	WP2182124 Whirlpool Refrigerator Stripper Arm
6	WP2195914 Whirlpool Refrigerator Ice Maker Housing
7	WP2315522 Whirlpool Refrigerator Clip
8	WP627985 Whirlpool Icemaker Cycling Thermostat
8	Cement Alumilastic)
9	8533917 Whirlpool Refrigerator Screw
11	W10190935 Whirlpool Refrigerator Icemaker Motor Module Assembly
12	489136 Whirlpool Refrigerator Screw
13	WP681249 Whirlpool Screw Assembly
14	WP627792 Whirlpool Refrigerator Shut Off Arm
15	WP2187464 Whirlpool Refrigerator Wire Harness
16	WP627712 Whirlpool Refrigerator Mounting Clip
17	Screw, 8-32 x 27/64
18	WPW10289690 Whirlpool Ice Maker Cover
20	VALVE-INLT
21	Knob, Water
22	W11500948 Whirlpool Refrigerator Bracket
23	WP2187501 Whirlpool Refrigerator Wire Harness
23	Nut, Valve
23	Tube, Water Inlet
23	WPW10141625 Whirlpool Refrigerator Screw Assembly
23	Tube, Inlet Valve
23	Trim, Ice Pan
23	Accessory Bag, Inside Parts
23	Accessory Bag, Outside Parts
23	Clamp Tube
23	WP2196157 Whirlpool Fill Tube
23	PAN-ICE
23	WP628379 Whirlpool Refrigerator Clip
23	WP1106508 Whirlpool Refrigerator Gasket
23	WP489478 Whirlpool Refrigerator Screw
23	WP16123 Whirlpool Washer
23	WP2158826 Whirlpool Refrigerator Dampener
23	WP488163 Whirlpool Refrigerator Screw
23	549193 Whirlpool Refrigerator Power Clamp
23	WP488878 Whirlpool Refrigerator Tube Clamp
23	4387491 Whirlpool Refrigerator Insert
23	W10823511 Whirlpool Refrigerator Water Tube
23	WP627018 Whirlpool Refrigerator Nut
23	WP488366 Whirlpool Refrigerator Clamp
23	WP489069 Whirlpool Compactor Screw
