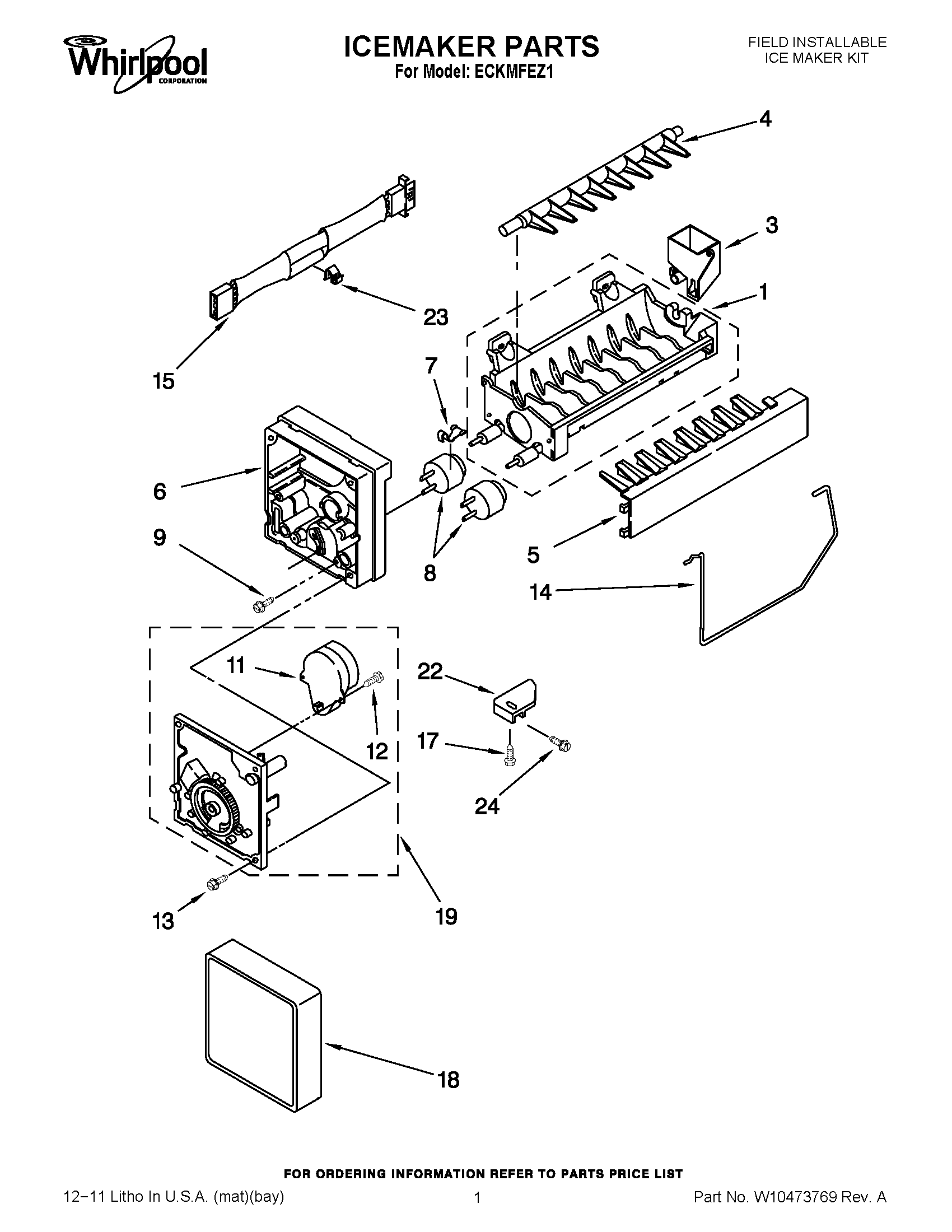

ECKMFEZ1 01 – ICEMAKER PARTS

ECKMFEZ1 01 – ICEMAKER PARTS

Written by

in

ECKMFEZ1 01 – ICEMAKER PARTS

Products

PositionProduct
NIINSTRUCTION BOOKLET
NIICE MAKER FIELD INSTALLABLE, ASSEMBLY (ECKMFEZ1)
NIPAN-ICE
1WPW10190929 Whirlpool Refrigerator Ice Maker Mold
3W10122561 Whirlpool Refrigerator Cup Fill
4WP627843 Whirlpool Refrigerator Ejector Arm
5WPW10122563 Whirlpool Refrigerator Stripper Arm
6WP2195914 Whirlpool Refrigerator Ice Maker Housing
7WP2315522 Whirlpool Refrigerator Clip
8WP627985 Whirlpool Icemaker Cycling Thermostat
98533917 Whirlpool Refrigerator Screw
11CABINET (NOT A SERVICEABLE PART)
12489136 Whirlpool Refrigerator Screw
14WP627792 Whirlpool Refrigerator Shut Off Arm
15WPW10360140 Whirlpool Refrigerator Wire Harness
17WP489478 Whirlpool Refrigerator Screw
18WPW10289690 Whirlpool Ice Maker Cover
198201515 Whirlpool Refrigerator Motor and Gear Module Kit
22W11500948 Whirlpool Refrigerator Bracket
23WP628379 Whirlpool Refrigerator Clip
24WP681249 Whirlpool Screw Assembly
