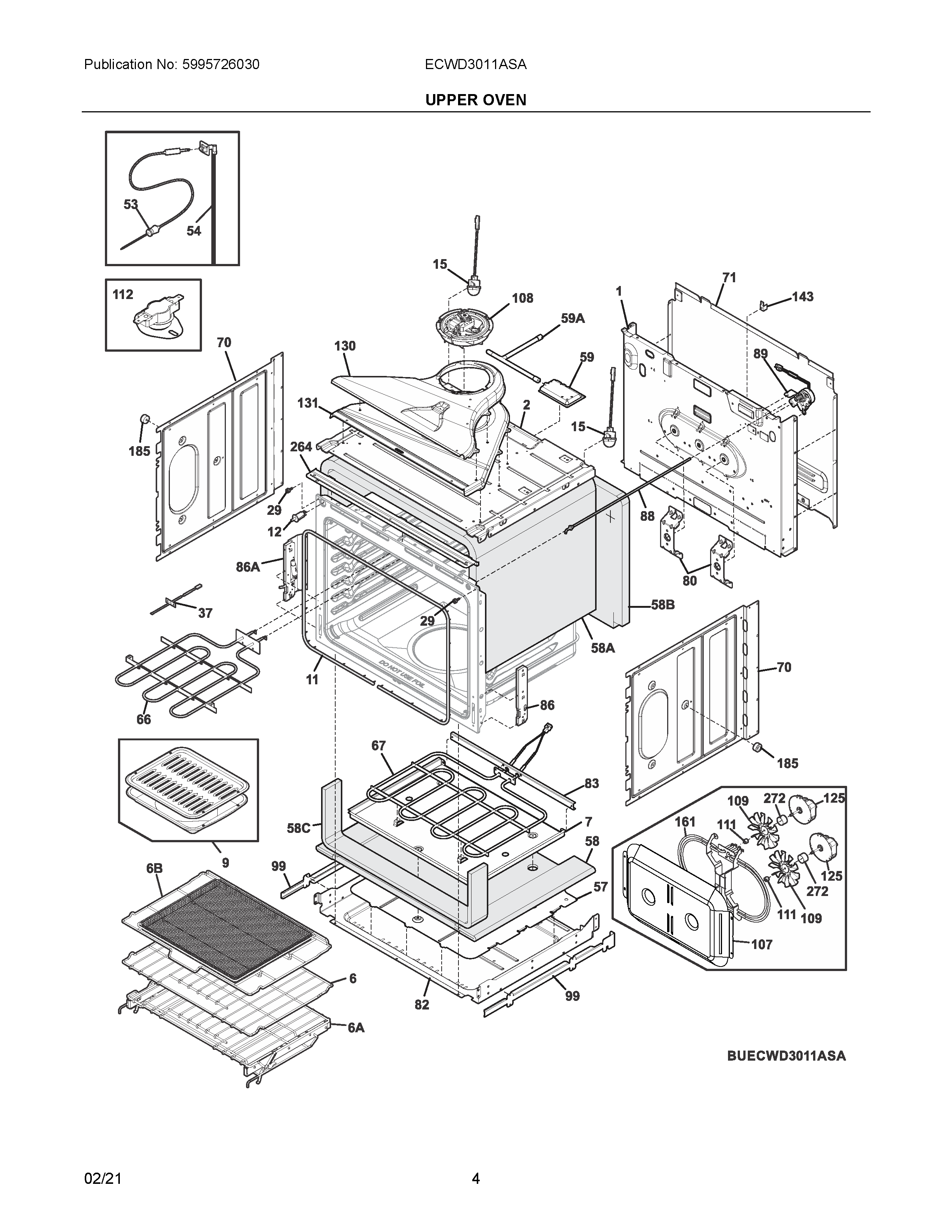

ECWD3011ASA 03 – UPPER OVEN

ECWD3011ASA 03 – UPPER OVEN

Written by

in

ECWD3011ASA 03 – UPPER OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIAA5304500643 Frigidaire Bracket
NI5304523578 Frigidaire Harness Assembly
NI316418900 Frigidaire Oven Screw
NI807597603 Frigidaire Oven Screw
NIB5304436864 Frigidaire WASHER
NIA318167300 Frigidaire Clip
NI5303324184 Frigidaire Wall Oven Range Screw
NI316021109 Frigidaire Oven Screw
NIC5303311164 Frigidaire Oven Spring
NI5303289910 Frigidaire Oven Screw
15304525130 Frigidaire Panel
2808651302 Frigidaire Shield
65304514983 Frigidaire Oven Rack
6BWO AIR FRY TRAY KIT
6A5304518864 Frigidaire Rack Assembly
7BOX, BAKE ELEMENT
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
11139036700 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
535304504202 Frigidaire Red Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
575304521752 Frigidaire Shield
58AINSULATION, OVEN WRAPPER
58808816501 Frigidaire Insulation
58B808905101 Frigidaire Insulation
58C807887503 Frigidaire Insulation
59ATUBE, EXTENSION, CATALYST
59808931403 Frigidaire Vent Box Assembly
665304514924 Frigidaire Element
675304516286 Frigidaire Oven Heating Element
70139000601 Frigidaire Oven Shield
71808650302 Frigidaire Shield
80139021101 Frigidaire Bracket Assembly
825304522581 Frigidaire Shield
835304520860 Frigidaire Shield
86808930501 Frigidaire Receptacle
86A807418503 Frigidaire Receptacle
88808721601 Frigidaire Rod
895304528925 Frigidaire Motor Assembly
99808109001 Frigidaire Support
1075304500627 Frigidaire Oven Cover
1085304528825 Frigidaire Assembly Motor Fan
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
1125304494446 Frigidaire Oven Switch
125139008504 Frigidaire Oven Motor
130808651606 Frigidaire Duct
131808651702 Frigidaire Oven Duct
143318172904 Frigidaire Bracket
1615304500622 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
2645304500596 Frigidaire Trim
272139021700 Frigidaire Oven Tube
