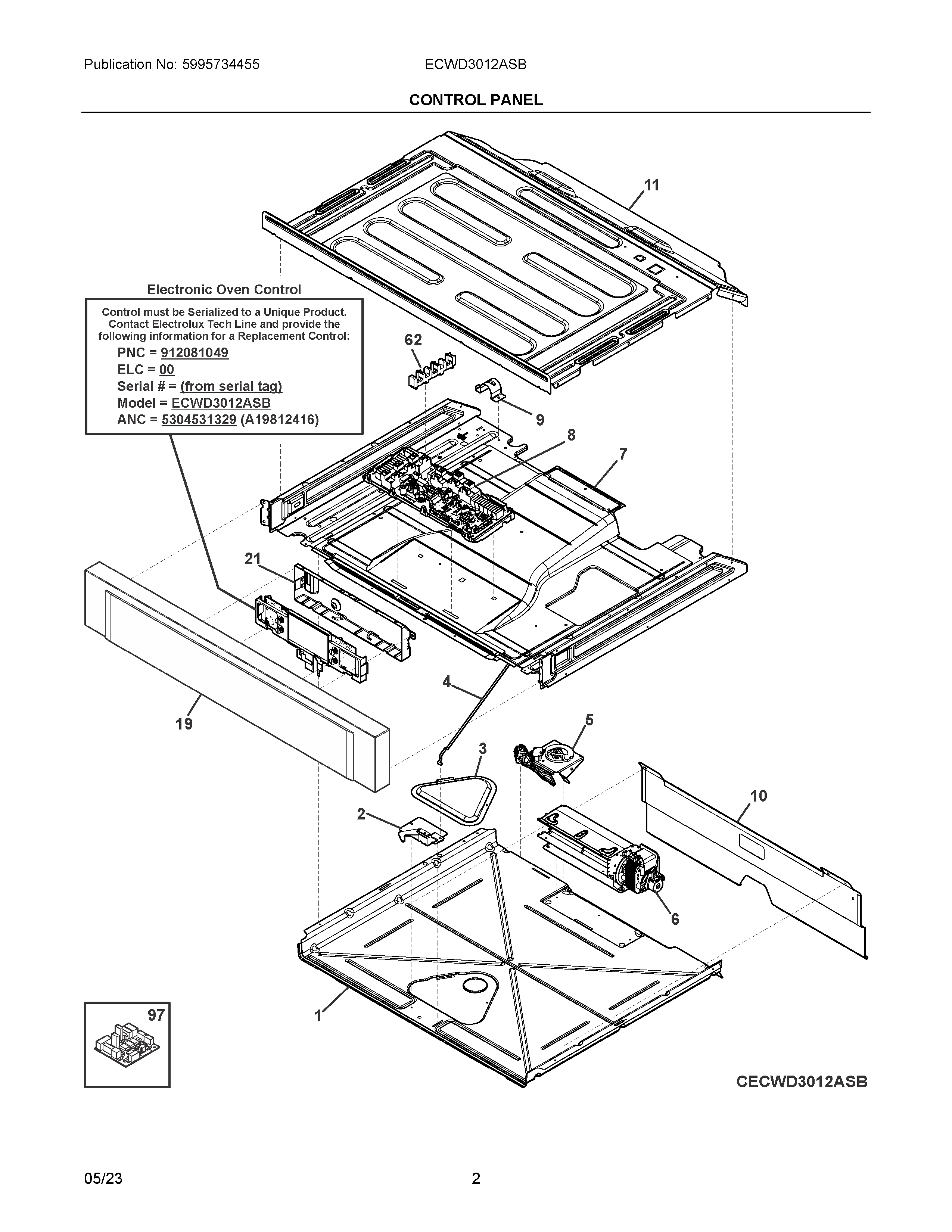

ECWD3012ASB 02 – CONTROL PANEL

ECWD3012ASB 02 – CONTROL PANEL

Written by

in

ECWD3012ASB 02 – CONTROL PANEL

Products

PositionProduct
NIB316205500 Frigidaire Oven Nut
NIHARNESS, WIRING, OVC, TO LOWER CAVITY
NI5304530448 Frigidaire Harness
NIHARNESS, WIRING, MAIN
NI5304532099 Frigidaire Harness
NIHARNESS, WIRING, LOWER CAVITY, OVC/HIGH VOLT
NIHARNESS, WIRING, UPPER OVEN, DS
NI5304535368 Frigidaire Harness
NIHARNESS
NIA316001017 Frigidaire Screw
NI387856311 Frigidaire Screw
NICWCI 5304528293
NIWCI 387872717
1SHIELD, BOTTOM DUCT
25304526367 Frigidaire Latch Door
3COVER, VENT
45304526368 Frigidaire Rod Assembly
55304526552 Frigidaire Motor Assembly
65304530368 Frigidaire Blower Assembly
75304526538 Frigidaire Carrier Plate
85304525432 Frigidaire Board Assembly
9BRACKET, CONDUIT MTG.
10SHIELD, INSULATION, REAR, UPPER
115304532474 Frigidaire Shield Assembly
19CONTROL PANEL, ASSEMBLY, GLASS/STEEL, STAINLESS, OUTER
215304523582 Frigidaire Housing
625304535277 Frigidaire Terminal Block
975304523590 Frigidaire PC Board
