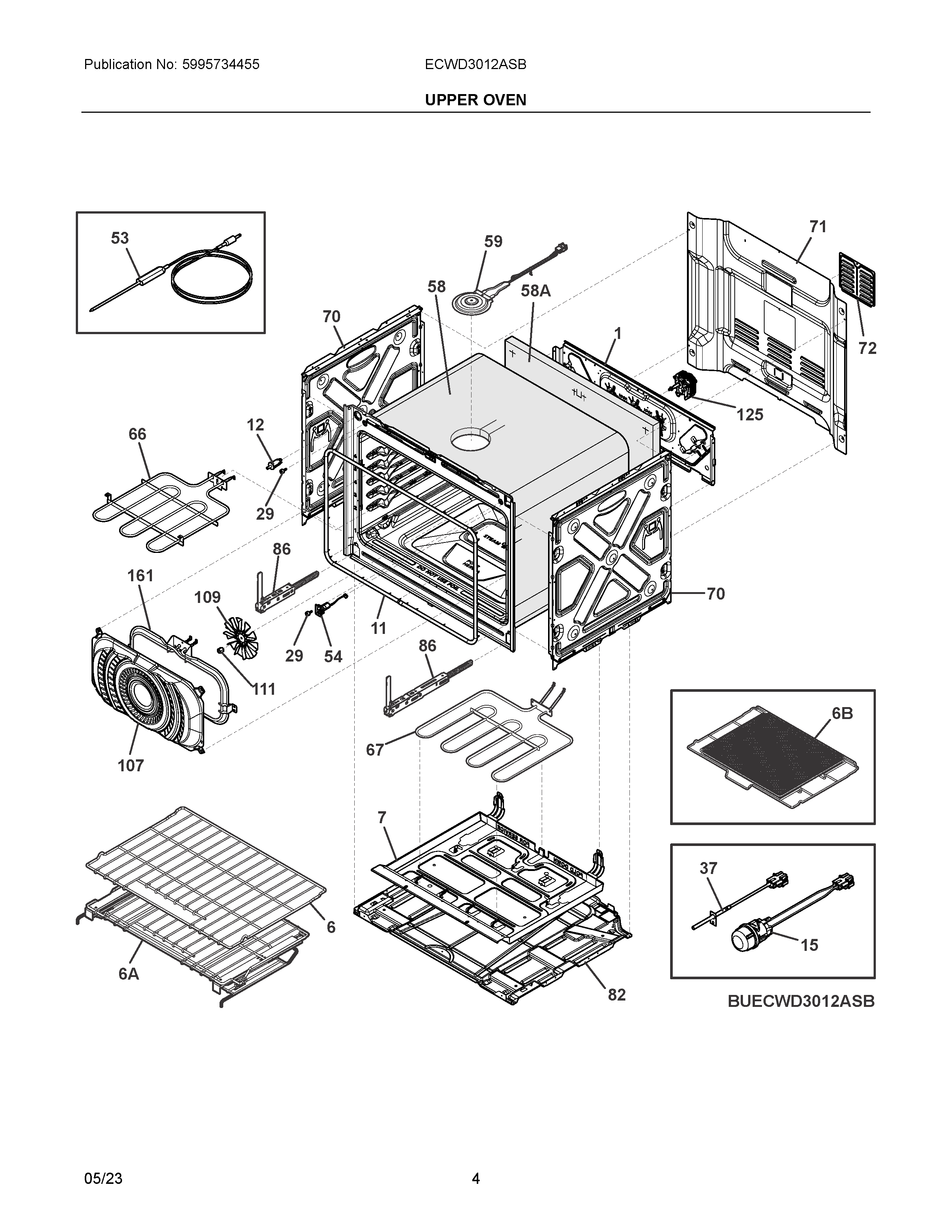

ECWD3012ASB 03 – UPPER OVEN

ECWD3012ASB 03 – UPPER OVEN

Written by

in

ECWD3012ASB 03 – UPPER OVEN

Products

PositionProduct
NISCREW, SELF DRILL, M3.5 X 9.5
NIA5304526234 Frigidaire Screw
NIHARNESS, WIRING, UPPER OVEN, DS
NI387856311 Frigidaire Screw
NIB5304526532 Frigidaire Screw
NI5304530450 Frigidaire Anti Tip
NIAWCI 387872717
1PANEL
6RACK, HANDLED, FLAT
6ARACK ASSEMBLY, GLIDE
6BFRIG AIR FRY TRAY PEREGRINE
7TRAY, HIDDEN BAKE
115304526242 Frigidaire Seal
12808136601 Frigidaire Oven Switch
155304530343 Frigidaire Lamp Assembly
29316517600 Frigidaire Oven Spacer
375304526310 Frigidaire Probe
53807822611 Frigidaire Probe
54RECEPTACLE, MEAT PROBE
58INSULATION, WRAPPER, OVEN
58AINSULATION, OVEN, REAR
59VENT ASSEMBLY, VENT TUBE, HEATED, W/CATALYST
665304536847 Frigidaire Element-Broil 6Pass
675304535239 Frigidaire Element-Hidden Bk 2
70PANEL
715304526329 Frigidaire Shield
725304526588 Frigidaire Cover
82PANEL, EXTERIOR, BOTTOM, UPPER OVEN
865304530350 Frigidaire Hinge
86AHINGE, DOOR, BROWN, DOUBLE SPRING
1075304526365 Frigidaire Cover
1095304525455 Frigidaire Blade
111561231207 Frigidaire Nut
1255304526375 Frigidaire Motor
1615304526565 Frigidaire Element
