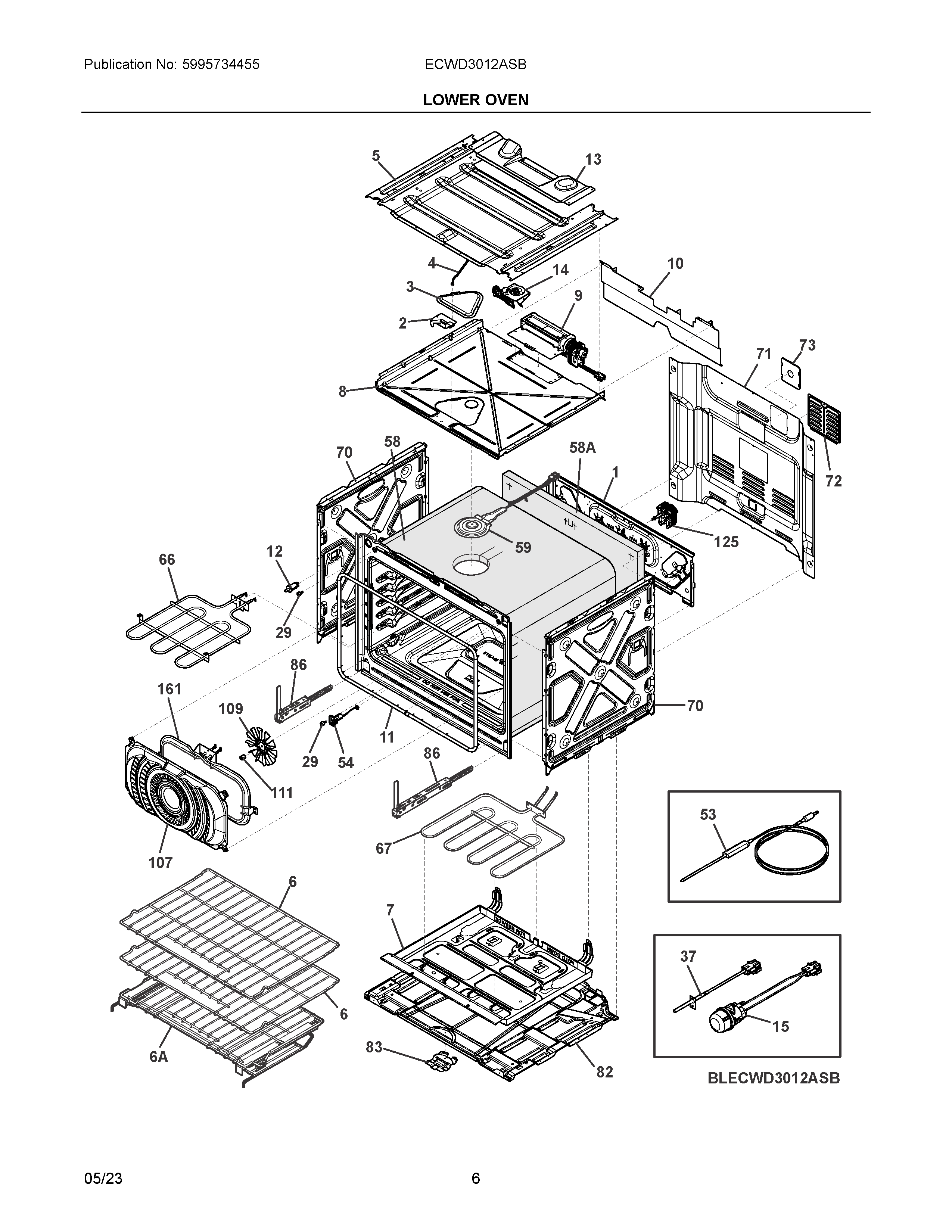

ECWD3012ASB 04 – LOWER OVEN

ECWD3012ASB 04 – LOWER OVEN

Written by

in

ECWD3012ASB 04 – LOWER OVEN

Products

PositionProduct
NI387856311 Frigidaire Screw
NIB5304526532 Frigidaire Screw
NIA5304526234 Frigidaire Screw
NI5304532099 Frigidaire Harness
NISCREW, SELF DRILL, M3.5 X 9.5
NIHARNESS, WIRING, MAIN
NIWCI 5304531337
NI5304530448 Frigidaire Harness
NI5304530450 Frigidaire Anti Tip
NIHARNESS, WIRING, LOWER CAVITY, OVC/HIGH VOLT
NI5304530449 Frigidaire Harness
NIAWCI 387872717
NIHARNESS, WIRING, OVC, TO LOWER CAVITY
NI5304535368 Frigidaire Harness
1PANEL
25304526367 Frigidaire Latch Door
3COVER, VENT
45304526368 Frigidaire Rod Assembly
55304526313 Frigidaire Panel
6RACK, HANDLED, FLAT
6ARACK ASSEMBLY, GLIDE
7TRAY, HIDDEN BAKE
8SHIELD, BOTTOM DUCT
95304530369 Frigidaire Blower Assembly
10SHIELD, INSULATION, LOWER OVEN, DWO
115304526242 Frigidaire Seal
12808136601 Frigidaire Oven Switch
13SHIELD, BAFFLE, LOWER DWO, COOLING
145304526552 Frigidaire Motor Assembly
155304530343 Frigidaire Lamp Assembly
29316517600 Frigidaire Oven Spacer
375304526310 Frigidaire Probe
53807822611 Frigidaire Probe
54RECEPTACLE, MEAT PROBE
58INSULATION, WRAPPER, OVEN
58AINSULATION, OVEN, REAR
59VENT ASSEMBLY, VENT TUBE, HEATED, W/CATALYST
665304536847 Frigidaire Element-Broil 6Pass
675304535239 Frigidaire Element-Hidden Bk 2
70PANEL
715304526330 Frigidaire Shield Assembly
725304526588 Frigidaire Cover
73COVER, ANTI VIBRATION
82PLATE-EXT BOTTOM SC
83BRACKET, BASE PANEL, MOUNT
865304530350 Frigidaire Hinge
86AHINGE, DOOR, BROWN, DOUBLE SPRING
1075304526365 Frigidaire Cover
1095304525455 Frigidaire Blade
111561231207 Frigidaire Nut
1255304526375 Frigidaire Motor
1615304526565 Frigidaire Element
