ECWM3011ASA 03 – MICROWAVE OVEN

ECWM3011ASA 03 – MICROWAVE OVEN

Written by

in

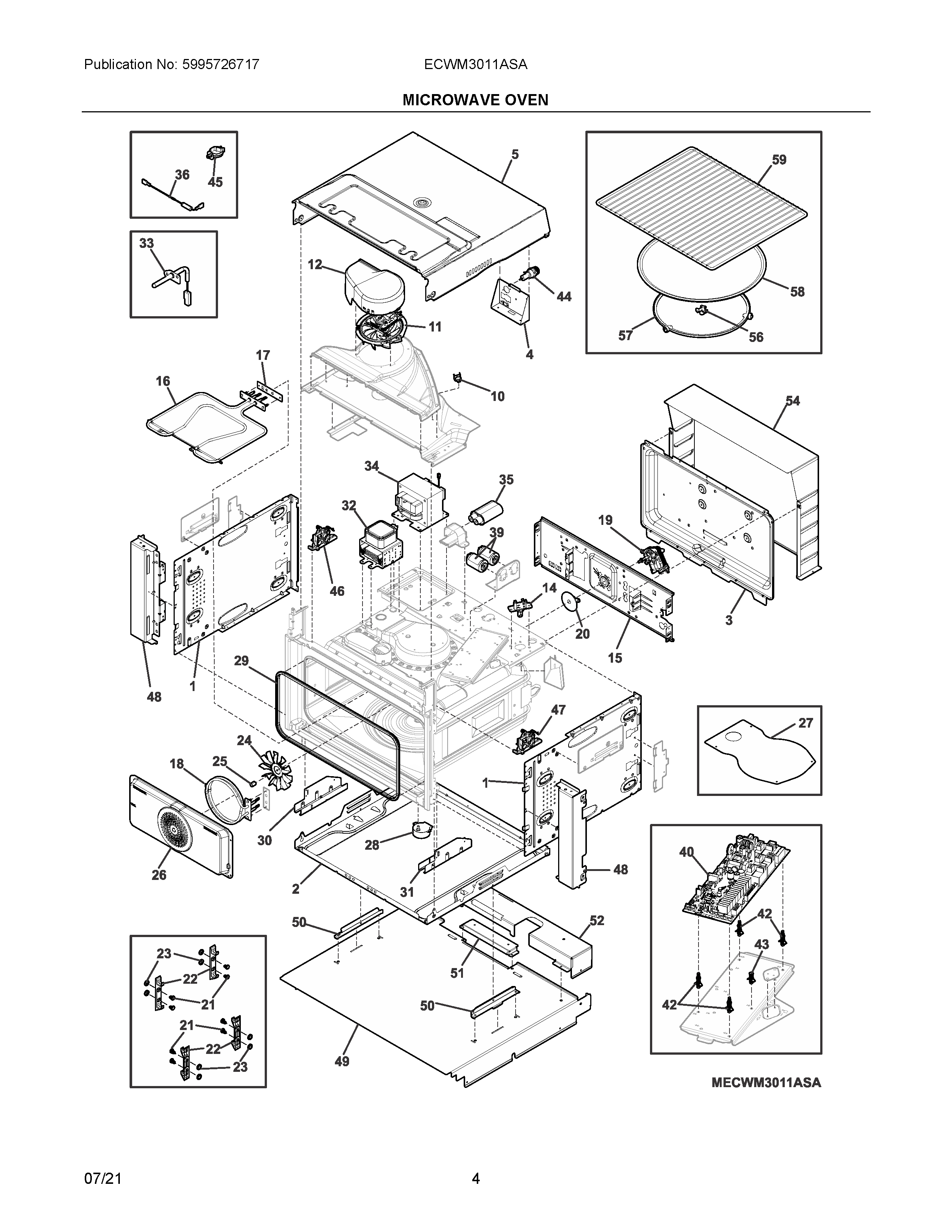

ECWM3011ASA 03 – MICROWAVE OVEN

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NIHARNESS
NI387856311 Frigidaire Screw
NIA17118003 Frigidaire Harness
NIA17118006 Frigidaire Harness
NIA17118016 Frigidaire Harness
NIA17118021 Frigidaire Harness
NI405522329 Frigidaire Screw Kit
NIAWCI 561045004
NIA555031101 Frigidaire Sensor
NIWCI 5029617300
NIWCI 349475501
NIA316021109 Frigidaire Oven Screw
1PANEL, SIDE
2BASE, PLATE, BOTTOM
3PANEL
4SUPPORT, CONNECTION BOX
5A05908717 Frigidaire Housing
10A01802605 Frigidaire Thermostat
11A18653201 Frigidaire Cooling Fan
12A13630003 Frigidaire Duct
14LAMP ASSEMBLY, G9, 40W, 120V
15MOUNTING PLATE, BACK
16ELEMENT, HEATING, UPPER, GRILL
17BRACKET, HEATING ELEMENT
18A08933932 Frigidaire Element
19555027103 Frigidaire Motor
20SHIELD, CONVECTION FAN, CHOKE
21808373901 Frigidaire Range Pin
22A18262002 Frigidaire Range Support Assembly
23A19949501 Frigidaire Range Washer
24555023101 Frigidaire Fan Blade
25561231207 Frigidaire Nut
26COVER, CONVECTION FAN, BACK
27COVER, MICA
28A13805506 Frigidaire Motor
29GASKET, DOOR, MICROWAVE
30SUPPORT, LH HINGE
31SUPPORT, RH HINGE
32555030400 Frigidaire Magnetron
33555044200 Frigidaire Sensor
34555030502 Frigidaire Transformer
35315795903 Frigidaire Capacitor Assembly
36555042802 Frigidaire Diode
39A20022801 Frigidaire Filter
40A18493801 Frigidaire PC Board Assembly
42CLIP, PC BOARD, (4)
43CLIP, PC BOARD, FLAT TOP
44318647300 Frigidaire Microwave Fuse and Holder
45HOLDER, CABLE, ROUND
46A23242801 Frigidaire Interlock
47A23243301 Frigidaire Interlock Component
48FILLER BRACKET, FRONT, BLACK
49SUPPORT PLATE, MICROWAVE, LOWER
50BRACKET, SIDE SUPPORT
51BRACKET, REAR SUPPORT
52COVER, BACK, SUPPORT
54C
56A15654501 Frigidaire Coupler
57A13881201 Frigidaire Roller Assembly
58A13804901 Frigidaire Tray
59A18994801 Frigidaire Range Accessory Kit
