ECWM3011ASA 04 – LOWER OVEN
Written by
in

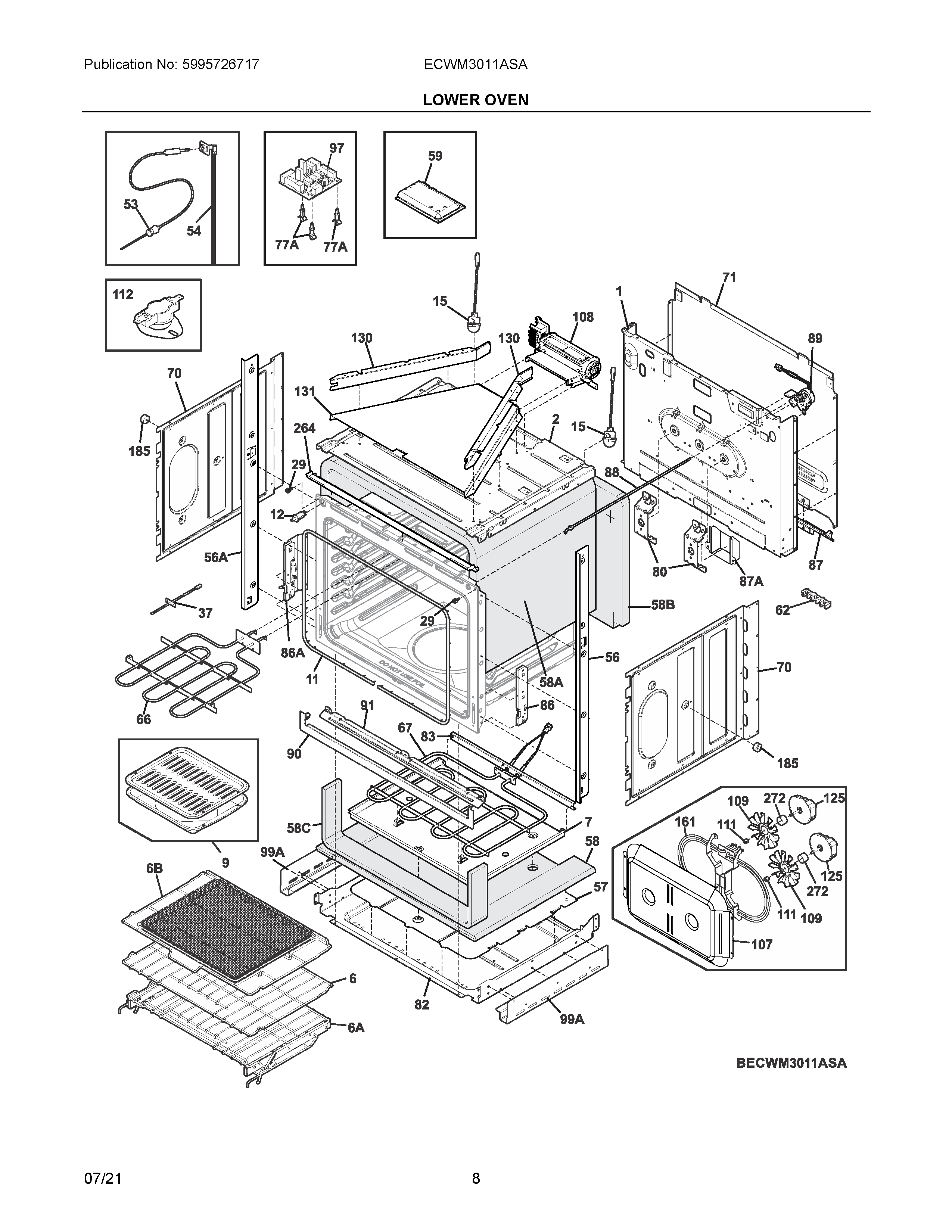

ECWM3011ASA 04 – LOWER OVEN
Products
Position
Product
NI
316021105 Frigidaire Oven Screw
NI
5304506984 Frigidaire Harness Assembly
NI
5304470882 Frigidaire Oven Screw
NI
316418900 Frigidaire Oven Screw
NI
WCI 5304525133
NIC
5304436864 Frigidaire WASHER
NIA
318167300 Frigidaire Clip
NIA
316001017 Frigidaire Screw
NI
807597603 Frigidaire Oven Screw
NIB
316205500 Frigidaire Oven Nut
NI
316021109 Frigidaire Oven Screw
NI
5303289910 Frigidaire Oven Screw
NI
WCI 5304525132
NIB
5303311164 Frigidaire Oven Spring
1
5304525130 Frigidaire Panel
2
808651302 Frigidaire Shield
6
5304514983 Frigidaire Oven Rack
6B
WO AIR FRY TRAY KIT
6A
5304518864 Frigidaire Rack Assembly
7
BOX, BAKE ELEMENT
9
BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
11
139036700 Frigidaire Oven Seal
12
808136601 Frigidaire Oven Switch
15
5304528790 Frigidaire Lamp Assembly Appliance
29
316517600 Frigidaire Oven Spacer
37
SENSOR
53
5304504202 Frigidaire Red Meat Temperature Probe
54
139017203 Frigidaire Assembly Receptacle
56
TRIM, SIDE, BLACK, LH
56A
TRIM, SIDE, BLACK, RH
57
5304521752 Frigidaire Shield
58A
INSULATION, OVEN WRAPPER
58
808816501 Frigidaire Insulation
58B
808905101 Frigidaire Insulation
58C
807887503 Frigidaire Insulation
59
808931401 Frigidaire Vent Box Assembly
62
5304409888 Frigidaire Oven Terminal Block with Hardware
66
5304514924 Frigidaire Element
67
5304516286 Frigidaire Oven Heating Element
70
139000601 Frigidaire Oven Shield
71
808650302 Frigidaire Shield
77A
316114100 Frigidaire Oven Spacer
80
139021101 Frigidaire Bracket Assembly
82
5304522581 Frigidaire Shield
83
5304520860 Frigidaire Shield
86A
807418503 Frigidaire Receptacle
86
808930501 Frigidaire Receptacle
87A
5304520866 Frigidaire Shield
87
5304520557 Frigidaire Bracket
88
808721601 Frigidaire Rod
89
5304528925 Frigidaire Motor Assembly
90
TRIM, LOWER VENT, STAINLESS
91
5304518870 Frigidaire Oven Air Diverter Assembly
97
5304523590 Frigidaire PC Board
99A
5304514974 Frigidaire Support
107
5304500627 Frigidaire Oven Cover
108
5304525125 Frigidaire Refrigerator Motor Assembly
109
318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111
316136600 Frigidaire Oven Range Lock Nut
112
5304494446 Frigidaire Oven Switch
125
139008504 Frigidaire Oven Motor
130
WCI 5304525136
131
WCI 5304525126
161
5304500622 Frigidaire Oven Element
185
318531800 Frigidaire Oven Spacer
264
WCI 5304525124
272
139021700 Frigidaire Oven Tube
←
