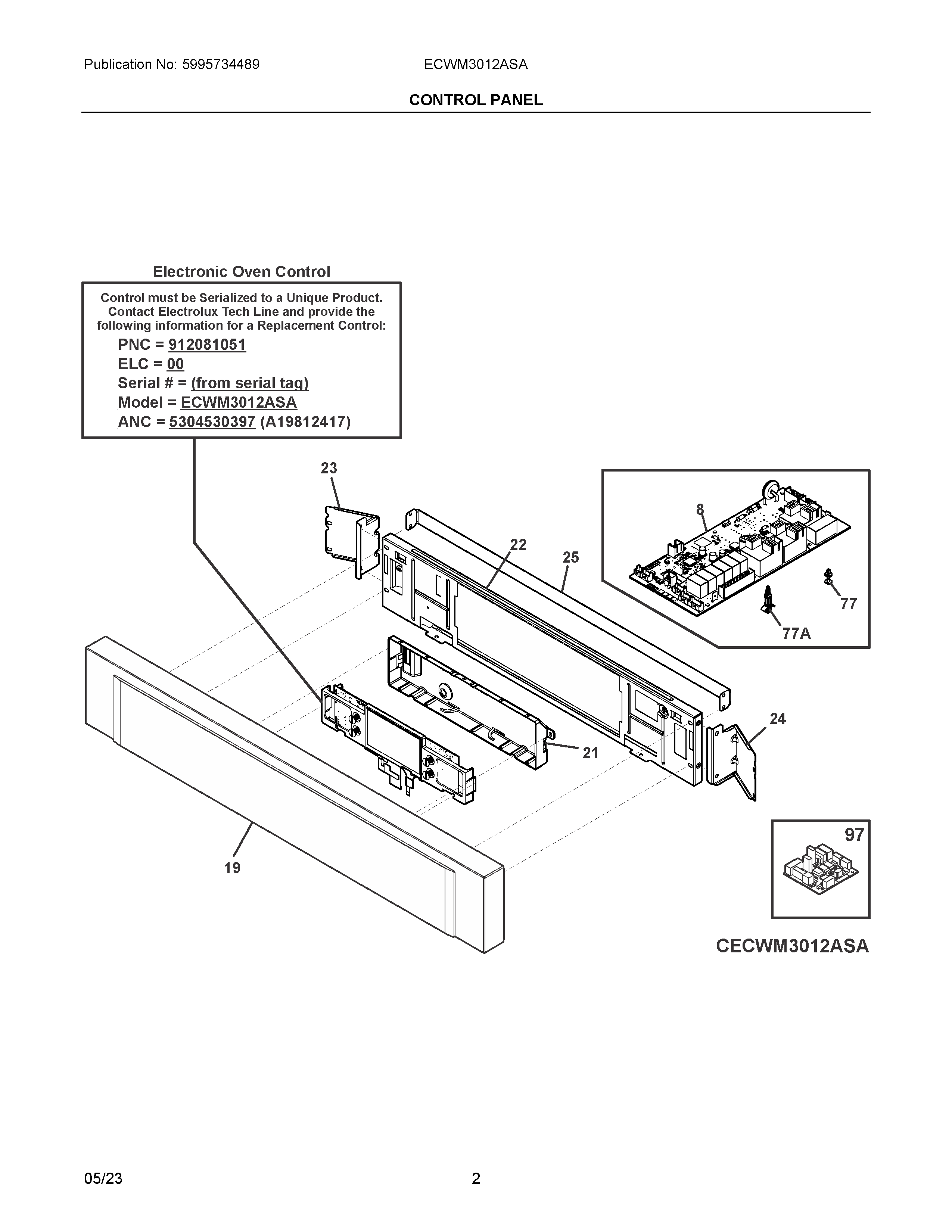

ECWM3012ASA 02 – CONTROL PANEL

ECWM3012ASA 02 – CONTROL PANEL

Written by

in

ECWM3012ASA 02 – CONTROL PANEL

Products

PositionProduct
NIHARNESS, WIRING, LOW VOLTAGE
NIHARNESS, WIRING, MAIN, HIGH VOLTAGE
NIHARNESS, WIRING, MACS
NIHARNESS, WIRING, OVC, TO LOWER CAVITY
NI5304535368 Frigidaire Harness
NI387856311 Frigidaire Screw
NIWCI 387872717
NI5304530448 Frigidaire Harness
85304536546 Frigidaire Board-Ovc M Mc Aria
19CONTROL PANEL, ASSEMBLY, STEEL/GLASS, STAINLESS
215304523582 Frigidaire Housing
22A16358901 Frigidaire Bracket
235304530392 Frigidaire Bracket
245304530393 Frigidaire Bracket
25BRACKET, EMC SHIELD
77SPACER, STANDOFF, OVC
77A316114100 Frigidaire Oven Spacer
975304523590 Frigidaire PC Board
