ECWS3011ASA 03 – BODY

ECWS3011ASA 03 – BODY

Written by

in

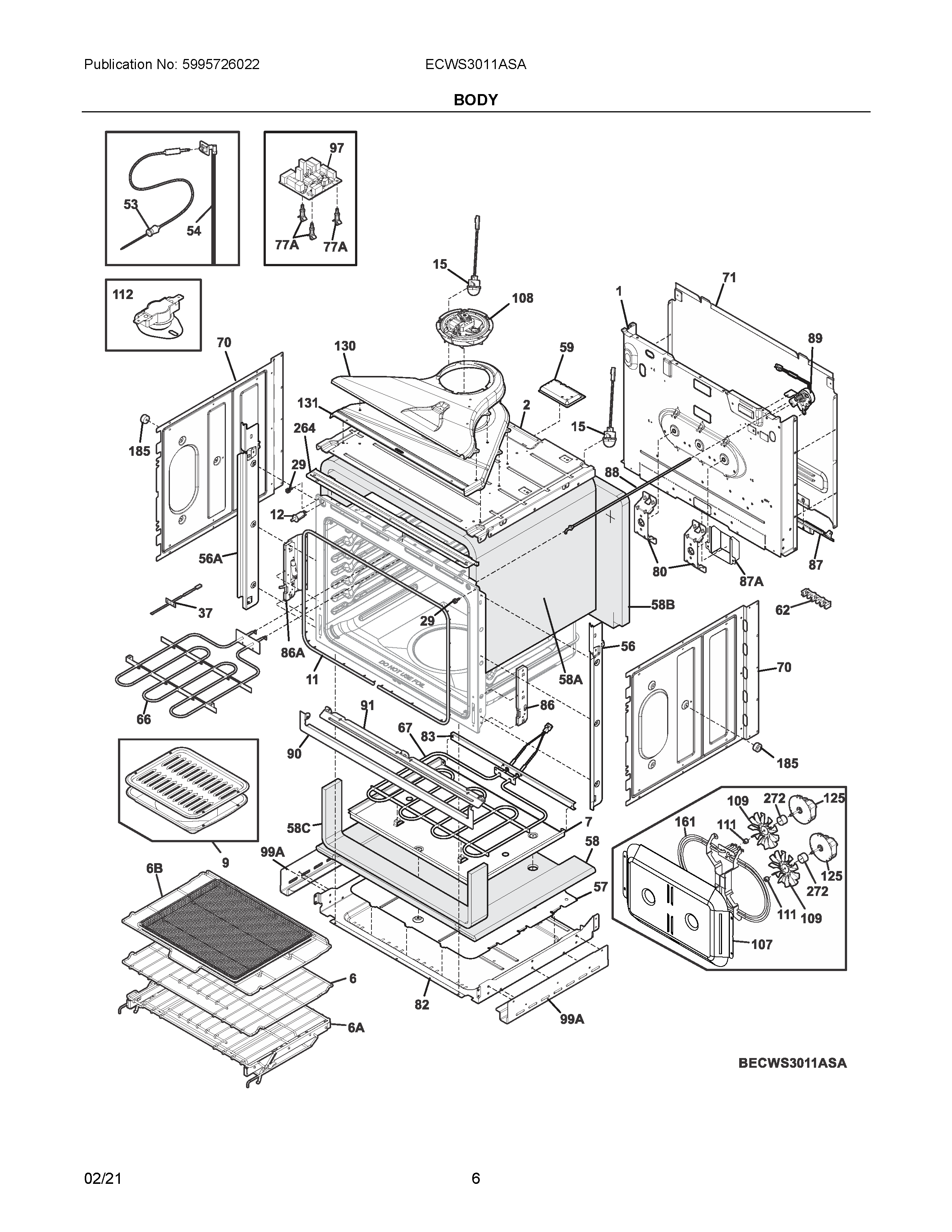

ECWS3011ASA 03 – BODY

Products

PositionProduct
NI316021105 Frigidaire Oven Screw
NI5304523577 Frigidaire Harness
NI316418900 Frigidaire Oven Screw
NI807597603 Frigidaire Oven Screw
NI5304506984 Frigidaire Harness Assembly
NIC5304436864 Frigidaire WASHER
NIA318167300 Frigidaire Clip
NIA316001017 Frigidaire Screw
NI5304470882 Frigidaire Oven Screw
NIB316205500 Frigidaire Oven Nut
NI316021109 Frigidaire Oven Screw
NI5304523591 Frigidaire Harness
NIB5303311164 Frigidaire Oven Spring
NI5303289910 Frigidaire Oven Screw
15304525130 Frigidaire Panel
2808651302 Frigidaire Shield
6BWO AIR FRY TRAY KIT
6A5304518864 Frigidaire Rack Assembly
65304514983 Frigidaire Oven Rack
7BOX, BAKE ELEMENT
9BROIL PAN KIT, PAN & INSERT, SLATE BLUE, OPTIONAL, ACCESSORY
11139036700 Frigidaire Oven Seal
12808136601 Frigidaire Oven Switch
155304528790 Frigidaire Lamp Assembly Appliance
29316517600 Frigidaire Oven Spacer
37SENSOR
535304504202 Frigidaire Red Meat Temperature Probe
54139017203 Frigidaire Assembly Receptacle
565304500598 Frigidaire Trim Assembly
56A5304500597 Frigidaire Trim
575304521752 Frigidaire Shield
58AINSULATION, OVEN WRAPPER
58C807887503 Frigidaire Insulation
58808816501 Frigidaire Insulation
58B808905101 Frigidaire Insulation
59808931401 Frigidaire Vent Box Assembly
625304409888 Frigidaire Oven Terminal Block with Hardware
665304514924 Frigidaire Element
675304516286 Frigidaire Oven Heating Element
70139000601 Frigidaire Oven Shield
71808650302 Frigidaire Shield
77A316114100 Frigidaire Oven Spacer
80139021101 Frigidaire Bracket Assembly
825304522581 Frigidaire Shield
835304520860 Frigidaire Shield
86A807418503 Frigidaire Receptacle
86808930501 Frigidaire Receptacle
87A5304520866 Frigidaire Shield
875304520557 Frigidaire Bracket
88808721601 Frigidaire Rod
895304528925 Frigidaire Motor Assembly
90TRIM, LOWER VENT, STAINLESS
915304518870 Frigidaire Oven Air Diverter Assembly
975304523590 Frigidaire PC Board
99A5304514974 Frigidaire Support
1075304500627 Frigidaire Oven Cover
1085304528825 Frigidaire Assembly Motor Fan
109318398302 Frigidaire Stove Oven Range Convection Motor Fan Blade
111316136600 Frigidaire Oven Range Lock Nut
112THERMOSTAT,SAFETY,125C
125139008504 Frigidaire Oven Motor
130808651606 Frigidaire Duct
131808651702 Frigidaire Oven Duct
1615304500622 Frigidaire Oven Element
185318531800 Frigidaire Oven Spacer
2645304500596 Frigidaire Trim
272139021700 Frigidaire Oven Tube
