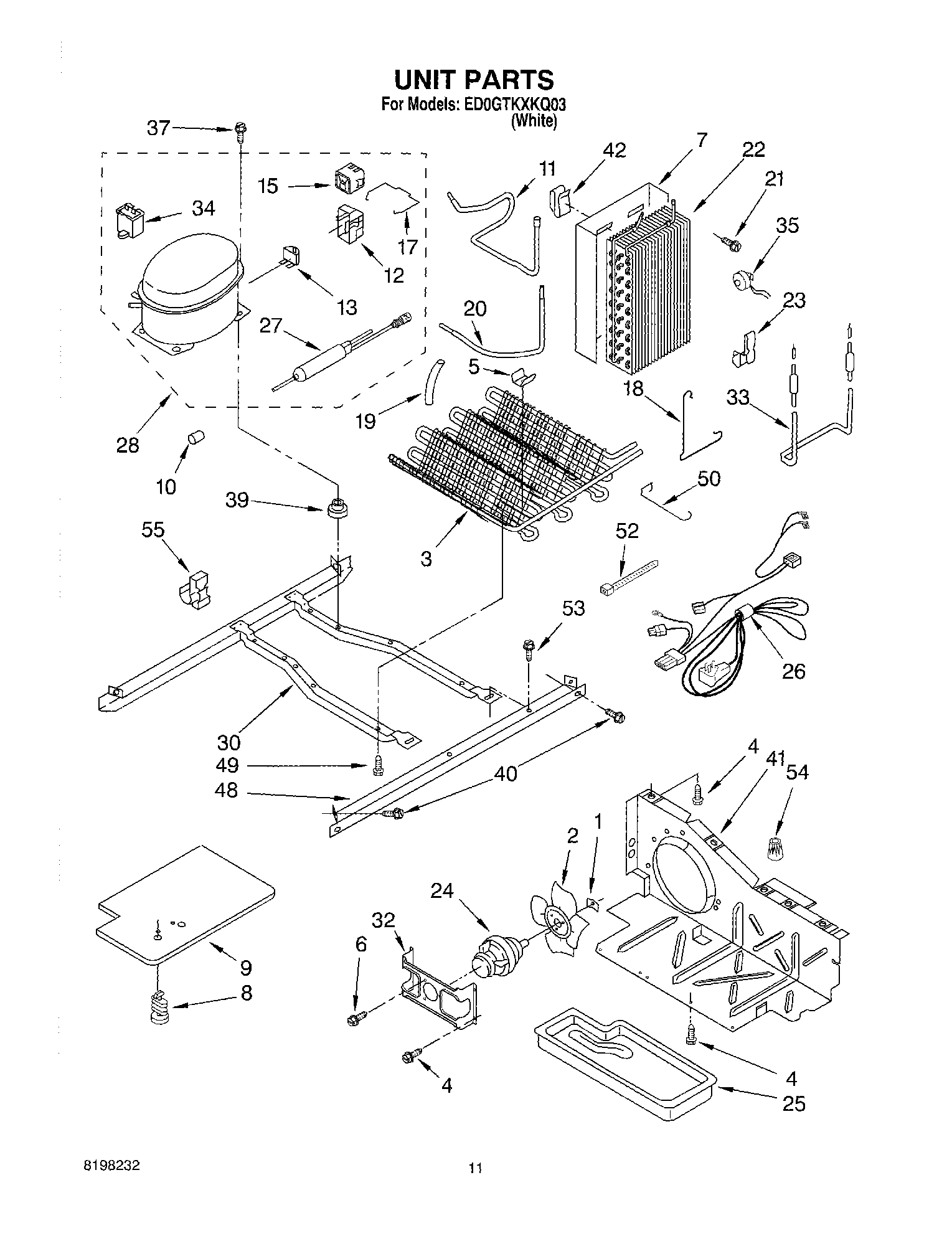

ED0GTKXKQ03 07 – UNIT

Products

Position	Product
1	WP486692 Whirlpool Refrigerator Nut
2	Blade, Fan
3	Condenser Assembly
4	WP489464 Whirlpool Refrigerator Screw
5	W10683556 Whirlpool Refrigerator Clip
6	681390 Whirlpool Refrigerator Screw
7	Heat Shield
8	489396 Whirlpool Refrigerator Clip
9	Unit Cover, Bottom
10	WP2158826 Whirlpool Refrigerator Dampener
11	2220642 Whirlpool Refrigerator Tube
12	WP2162358 Whirlpool Refrigerator Terminal Cover
13	OVERLOAD
15	WP2188831 Whirlpool Refrigerator Start Device
17	2255009 Whirlpool Retainer
18	Clamp
19	SLEEVE
20	Tube, Condenser to Heat Loop
21	WP965173 Whirlpool Dishwasher Screw
22	WP2188822 Whirlpool Refrigerator Evaporator
23	Clip
24	W10822259 Whirlpool Refrigerator Condenser Fan Motor
25	WPW10614158 Whirlpool Refrigerator Evaporator Tray
26	4389202 Whirlpool Wire Harness
27	W10843121 Whirlpool Refrigerator Tube
28	W10309990 Whirlpool Refrigerator Compressor
30	Unit Mounting Frame
32	WP2181929 Whirlpool Refrigerator Bracket
33	WP2323197 Whirlpool Refrigerator Heater
34	WP4387764 Whirlpool Run Capacitor
34	WP65889-4 Whirlpool Refrigerator Capacitor
35	WPW10225581 Whirlpool Refrigerator Defrost Thermostat
39	WP4387558 Whirlpool Refrigerator Compressor Grommet
39	876811 Whirlpool Grommet
40	489340 Whirlpool Refrigerator Screw
41	Air Baffle
42	Clip, Heat Shield
48	Unit Mounting Rail
49	W11544659 Whirlpool Refrigerator Screw
50	1105612 Whirlpool Fan Guard
52	WPW10339879 Whirlpool Wire Tie
53	WP489427 Whirlpool Refrigerator Screw
54	Wire Connector
55	VALVE, ACCESS (1/2“)
55	WP978025 Whirlpool Refrigerator Valve
55	978030 Whirlpool Refrigerator Valve
55	Clip, Wire & Tube
55	VALVE, ACCESS (5/8“)
55	978027 Whirlpool Refrigerator Primary Valve
55	978026 Whirlpool Refrigerator Primary Valve
55	876764 Whirlpool Refrigerator Primary Valve
