ED0GTQXKQ01 07 – FREEZER DOOR

ED0GTQXKQ01 07 – FREEZER DOOR

Written by

in

ED0GTQXKQ01 07 – FREEZER DOOR

Products

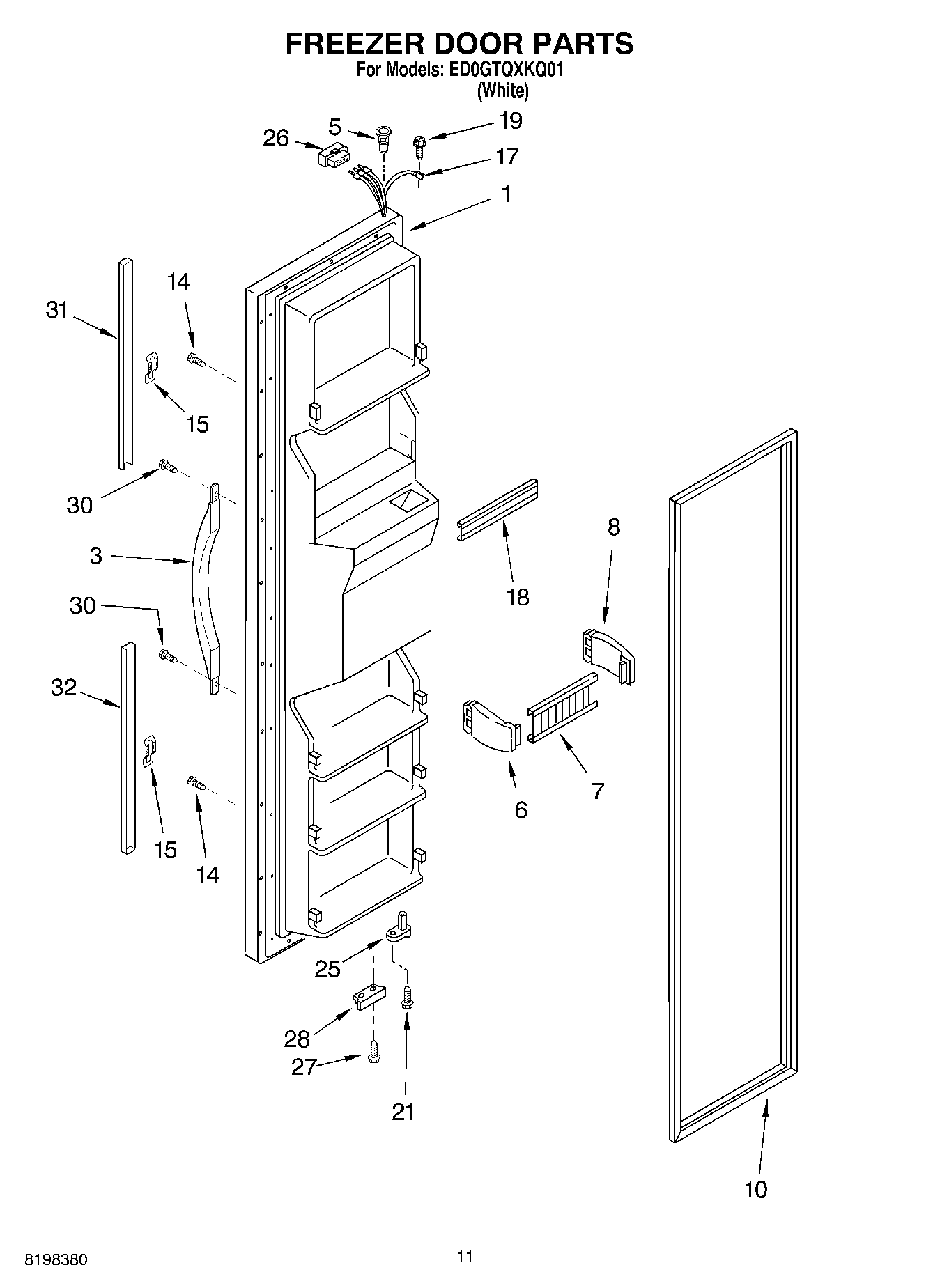

PositionProduct
1Freezer Door (Includes Item No.8 And Dispenser Front Parts) (White)
3Handle, Center (White)
5WP2182181 Whirlpool Refrigerator Thimble
6ENDCAP
7Door, Shelf (4)
8WP2195917K Whirlpool Refrigerator Endcap
102159072 Whirlpool Refrigerator FIP Gasket
14WP3400852 Whirlpool Refrigerator Screw
15WP2195327 Whirlpool Refrigerator Clip
172311642 Whirlpool Refrigerator Wire Harness
18WPW10307490 Whirlpool Door Trim Assembly
19WP489128 Whirlpool Refrigerator Screw
21WP3400012 Whirlpool Refrigerator Screw
25WP2182179 Whirlpool Cam Closer
26WP2154473 Whirlpool Refrigerator Connector
27WP489483 Whirlpool Screw
28WP2206629B Whirlpool Refrigerator Bracket
30WP489491 Whirlpool Refrigerator Screw
31Extension, Top (White)
32Extension, Bottom (White)
