ED19AK1LWR1 02 – CABINET
Written by
in

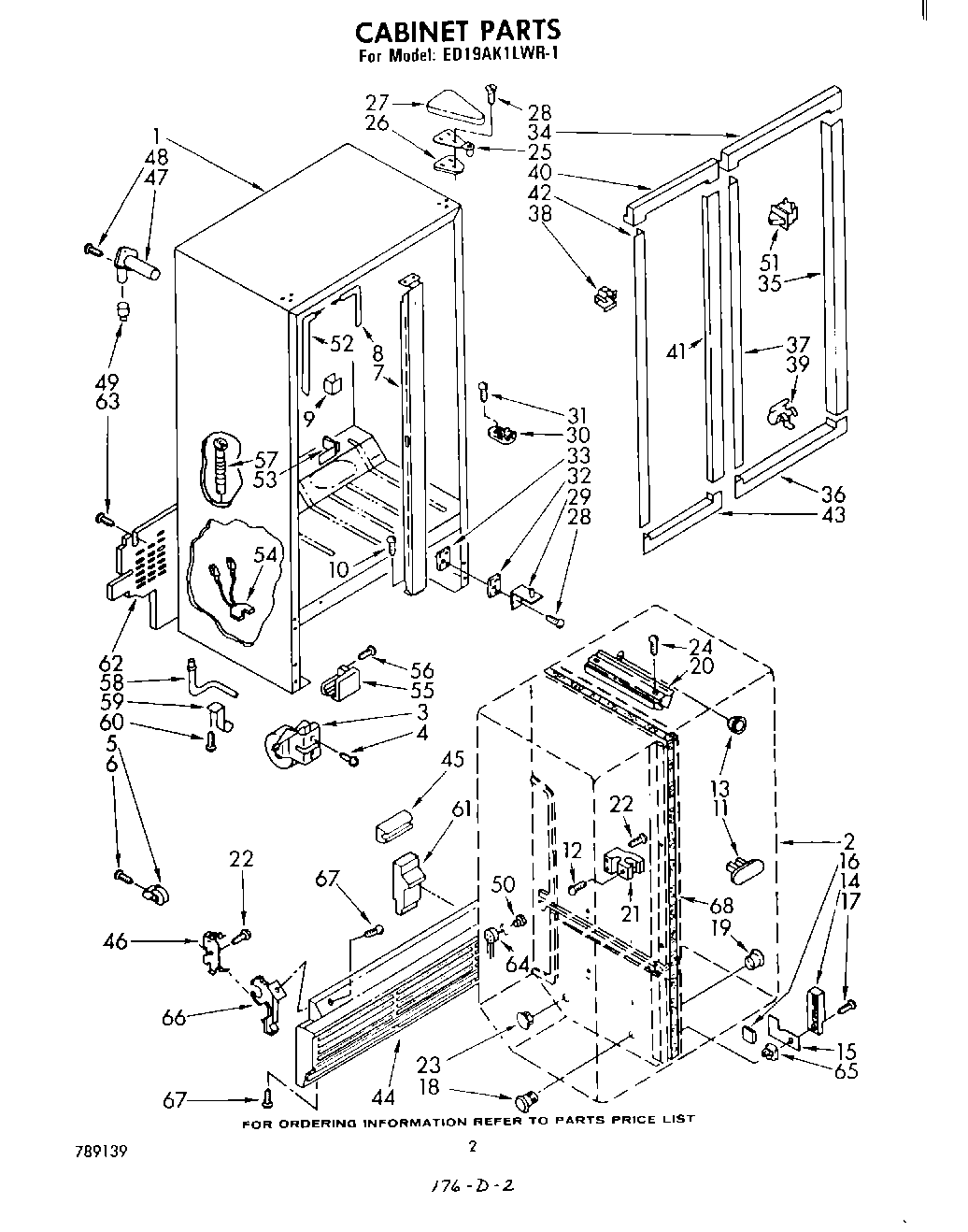

ED19AK1LWR1 02 – CABINET
Products
Position
Product
1
Cabinet (Not A Serviceable Part)
2
Liner (Not A Serviceable Part)
3
Roller, Front
4
Screw, 5/16-24 x 1
5
WPW10250570 Whirlpool Refrigerator Cabinet Roller
6
Screw, 1/4-28 x 1/2 (2)
7
Center Rail & Bracket Assembly (Toast)
7
Center Rail & Bracket Assembly (White)
7
Center Rail & Bracket Assembly (Platinum)
7
Center Rail & Bracket Assembly (Coffee)
7
Center Rail & Bracket Assembly (Golden Harvest)
7
Center Rail & Bracket Assembly (New Avocado)
7
Center Rail & Bracket Assembly (Almond)
8
WPL 851874
9
Clip, Heater (2)
10
WP308685 Whirlpool Microwave Screw
10
Screw, 8 x 3/8
11
WPL 836080
12
Screw (2)
13
Grommet, Wiring
14
Escutcheon Meat
15
Slide, Meat Pan Control
16
Pad, Foam
17
Screw, 8-15 x 1/2 (4)
18
Retainer, Hole Insert
19
Insert, Hole
20
WPL 842435
21
WPL 836079
22
W11624204 Whirlpool Screw
23
Hole Plug (2)
24
WP489069 Whirlpool Compactor Screw
25
Hinge, Top
26
Shim, Hinge
27
1119787 Whirlpool Refrigerator Hinge Cover
27
Hinge, Cover (Coffee)
27
Hinge Cover (Golden Harvest)
27
Hinge Cover (Toast)
27
Hinge Cover (New Avocado)
28
Screw (Repair)
28
WP999367 Whirlpool Refrigerator Screw
29
Hinge, Bottom R.S.
29
Hinge Bottom (L.H)
30
WPW10329686 Whirlpool Door Cam Black
31
WP486579 Whirlpool Air Conditioner Screw
32
Shim, Bottom Hinge
33
Tap Plate
34
WPL 843335
35
WPL 842178
36
WPL 836446
37
WPL 836213
38
Breaker, Clip
39
Clip, Breaker Retainer (2)
40
WPL 843334
41
WPL 836108
42
WPL 836174
43
WPL 836447
44
Exterior, Grille (Platinum)
44
Exterior, Grille (White)
44
Exterior Grille (New Avocado)
44
Exterior, Grille (Golden Harvest)
44
Exterior, Grille (Coffee)
44
Exterior, Grille (Toast)
44
Exterior, Grille (Almond)
45
Bumper, Grille
46
WPL 989068
47
Fitting, Water Tube
48
WP98165 Whirlpool Screw
49
WP487996 Whirlpool Refrigerator Cap Tube
50
Receptacle Cap
51
W11384469 Whirlpool Door Switch
52
Heater, Stile
53
WPL 935663
54
WPL 548734
55
WPL 549947
56
WP488729 Whirlpool Refrigerator Door Screw
57
WPL 836068
58
Extension, Drain Fitting
59
Cup, Drain Extension
60
Screw, 8-15 x 3/8
61
WPL 836372
62
WPL 850457
64
Wiring, Ice Maker
65
Grommet
66
WP944224 Whirlpool Refrigerator Support
67
WPL 489085
68
Div
←
