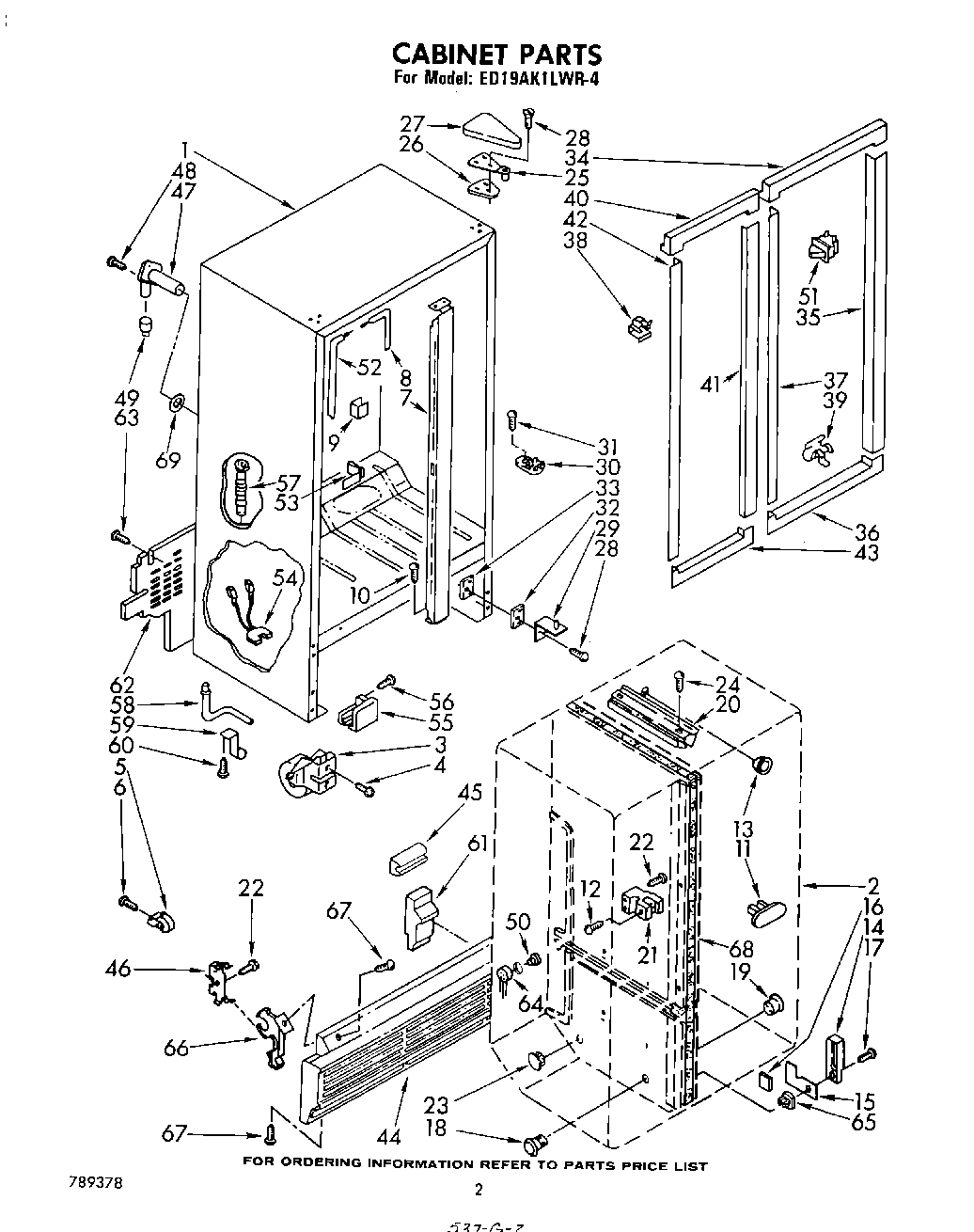

ED19AK1LWR4 02 – CABINET

ED19AK1LWR4 02 – CABINET

Written by

in

ED19AK1LWR4 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Liner (Not A Serviceable Part)
3Roller, Front
4Screw, 5/16-24 x 1
5WPW10250570 Whirlpool Refrigerator Cabinet Roller
6Screw, 1/4-28 x 1/2 (2)
7Center Rail & Bracket Assembly (Platinum)
7Center Rail & Bracket Assembly (Toast)
7Center Rail & Bracket Assembly (Coffee)
7Center Rail & Bracket Assembly (Golden Harvest)
7Center Rail & Bracket Assembly (Almond)
7Center Rail & Bracket Assembly (White)
8WPL 851874
9Clip, Heater (2)
10WP308685 Whirlpool Microwave Screw
10Screw, 8 x 3/8
11WPL 836080
12Screw (2)
13Grommet, Wiring
14Escutcheon Meat
15Slide, Meat Pan Control
16Pad, Foam
17Screw, 8-15 x 1/2 (4)
18Retainer, Hole Insert
19Insert, Hole
20WPL 842435
21WPL 836079
22W11624204 Whirlpool Screw
23Hole Plug (2)
24WP489069 Whirlpool Compactor Screw
25Hinge, Top
26Shim, Hinge
27Hinge Cover (Toast)
27Hinge, Cover (Coffee)
271119787 Whirlpool Refrigerator Hinge Cover
27Hinge Cover (Golden Harvest)
28WP999367 Whirlpool Refrigerator Screw
28Screw (Repair)
29Hinge Bottom (R.H)
29Hinge Bottom (L.H)
30WPW10329686 Whirlpool Door Cam Black
31WP486579 Whirlpool Air Conditioner Screw
32Shim, Bottom Hinge
33Tap Plate
34WPL 843335
35WPL 842178
36WPL 836446
37WPL 836213
38Breaker, Clip
39Clip, Breaker Retainer (2)
40WPL 843334
41WPL 836108
42WPL 836174
43WPL 836447
44Exterior, Grille (Almond)
44Exterior, Grille (Golden Harvest)
44Exterior, Grille (Coffee)
44Exterior, Grille (White)
44Exterior, Grille (Platinum)
44Exterior, Grille (Toast)
45Bumper, Grille
46WPL 989068
47Fitting, Water Tube
48WP98165 Whirlpool Screw
49WP487996 Whirlpool Refrigerator Cap Tube
50Receptacle Cap
51W11384469 Whirlpool Door Switch
52Heater, Stile
53WPL 935663
54WPL 548734
55WPL 549947
56WP488729 Whirlpool Refrigerator Door Screw
57WPL 836068
58Extension, Drain Fitting
59Cup, Drain Extension
60Screw, 8-15 x 3/8
61WPL 836372
62WPL 850457
64Wiring, Ice Maker
65Grommet
66WP944224 Whirlpool Refrigerator Support
67WPL 489085
68Div
69WP1106508 Whirlpool Refrigerator Gasket
