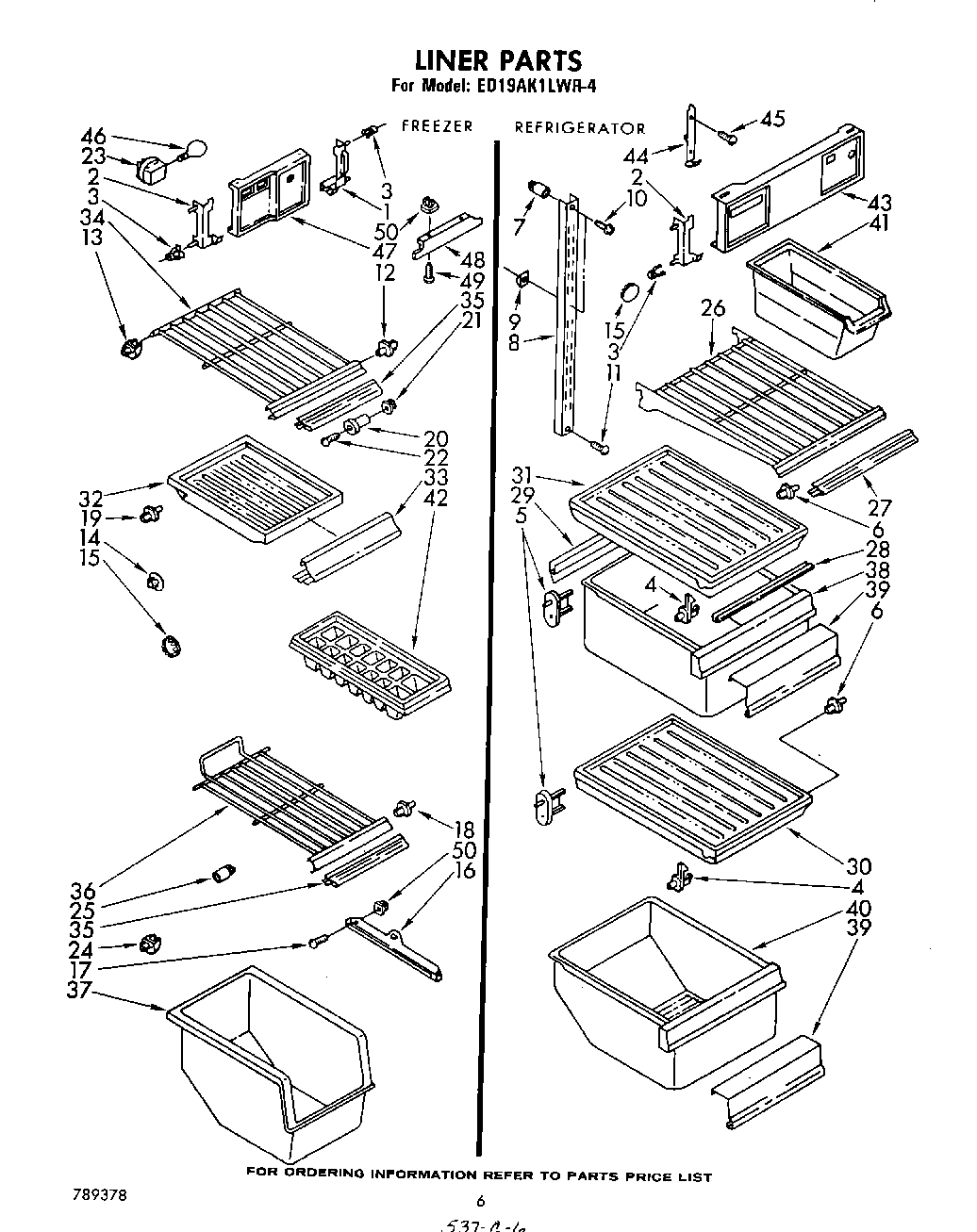

ED19AK1LWR4 04 – LINER

Products

Position	Product
1	Support, Light Lens (R.S.)
2	Support, Light Lens (L.S.)
3	Clip, Tubular
4	Stud, Shelf (2)
5	Stud, Shelf (2)
6	Shelf, Stud
7	Screw, Grommet
8	Shelfladder (2)
9	520965 Whirlpool Refrigerator Support
10	Screw, 8 x 1-1/4 (3)
11	Screw, 8-32 x 1-1/4
11	Screw (Repair)
12	Shelf, Stud (2)
13	Shelf Stud, Saddle
13	Shelf Stud Saddle (R.S.)
14	Hole, Plug
15	Hole, Plug
16	Slide, Freezer Bin
17	Screw, 8 x 1
18	Retainer Stud
19	Stud, Shelf (2)
20	Stud
21	Screw Grommet
22	Screw
23	4387478 Whirlpool Refrigerator Light Socket
24	Shelf Support
25	Grommet
26	Shelf, Cantilever
27	Trim, Shelf Front
28	Crisper Gasket Front
29	Crisper Basket, Rear
30	Slide & Cover Meat Pan (Almond)
30	Slide & Cover
31	Slide & Cover, Crisper Pan (Light Smoke)
32	Shelf, Solid
32	WPL 935318
33	Trim, Shelf
34	Shelf, Freezer
35	Trim, Shelf Front
36	Shelf, Ice Cube Pan
37	WPL 935319
37	Bin, Freezer (For Platinum Model
38	Pan, Crisper
38	Pan, Crisper (For Platinum Model Only)
39	Overlay, Front Cover
40	Pan, Meat
40	Pan, Meat (For Platinum Model Only)
41	WP982704 Whirlpool Refrigerator Container
42	WP841180A Whirlpool Microwave Glass Turntable Tray
43	Light Lens
44	Support, Light Lens
45	W11624204 Whirlpool Screw
46	RANGE ONLY 40W 120V APPL BULB
47	Light Lens, Freezer
48	Baffle, Liner Top
49	WP489069 Whirlpool Compactor Screw
50	Grommet
