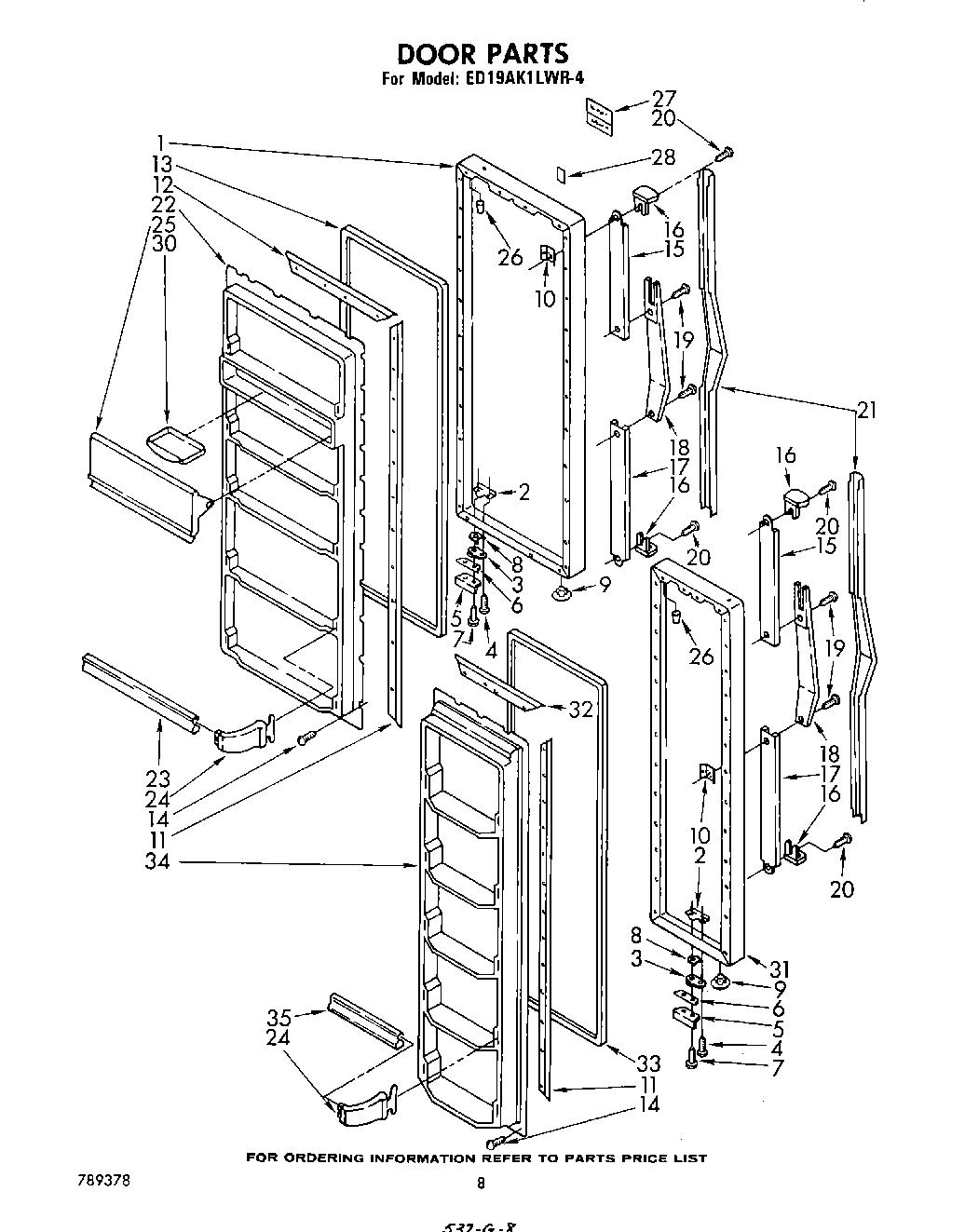

ED19AK1LWR4 05 – DOOR

Products

Position	Product
1	Door, Refrigerator (Golden Harvest)
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (Platinum)
1	Door, Refrigerator (White)
1	Door, Refrigerator (Almond)
1	Door, Refrigerator (Coffee)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	WP1104787 Whirlpool Refrigerator Shim
9	Hole Plug (2)
10	WP939101 Whirlpool Refrigerator Plate
11	Retainer Side, Gasket
12	Retainer, Top & Bottom
13	2188404A Whirlpool Refrigerator Door Gasket
14	SCREW
15	Retainer, Top
16	Cap, Handle (2)
17	Retainer, Bottom
18	Handle
19	W11624204 Whirlpool Screw
20	Screw, 10-32 x 5/8
21	Insert, Handle
21	Insert, Handle (For Platinum Model Only)
22	WPL 943827
22	Panel, Interior
23	Trim, Shelf (5)
24	WP849996 Whirlpool Refrigerator Endcap Trim
25	Compartment Door
26	Cap, Hinge Sleeve (2)
27	Nameplate
28	Tape Strip
31	Freezer, Door Panel (Toast)
31	Door, Freezer (Almond)
31	Freezer, Door Panel (Platinum)
31	Door, Freezer (White)
31	Door, Freezer (Coffee)
31	Door, Freezer (Golden Harvest)
32	Retainer, Top & Bottom Gasket
33	2188405A Whirlpool Refrigerator Door Gasket
34	Panel, Interior
34	Panel, Interior
35	WPL 935361
