ED19AK1LWR4 06 – UNIT , LIT/OPTIONAL

ED19AK1LWR4 06 – UNIT , LIT/OPTIONAL

Written by

in

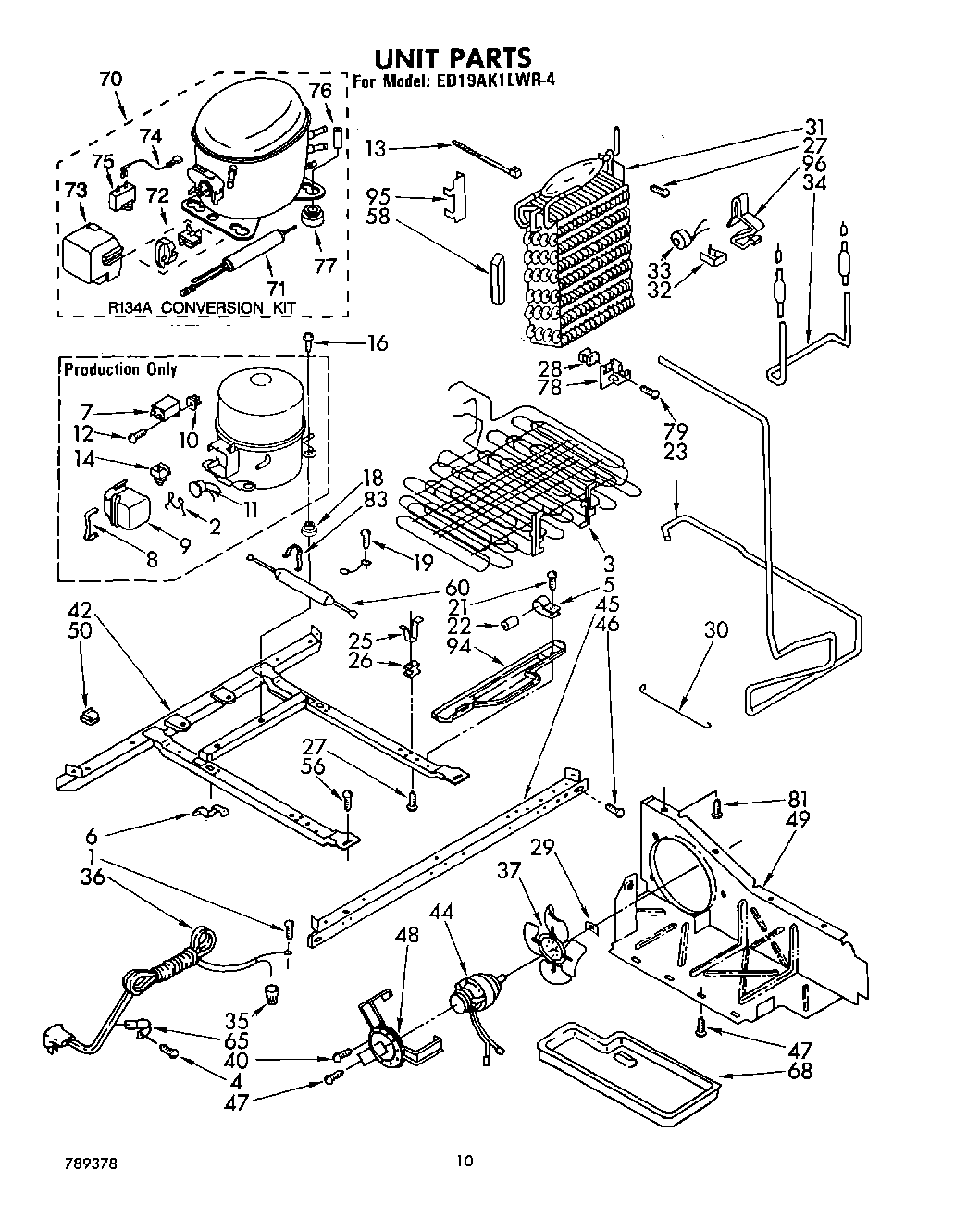

ED19AK1LWR4 06 – UNIT , LIT/OPTIONAL

Products

Position	Product
	WPL LIT945934
	WPL LIT945511
	WPL 677821
	WPL 677971
	WPL 677967
	WPL 677818
	WPL 677813
	WPL LIT789378
	WPL LIT944001
1	Screw, 8-32 x 3/8
2	Spring, Overload
3	Condenser & Precooler
5	Clamp Tube
6	Clip (2)
7	WPW10662129 Whirlpool Refrigerator Run Capacitor
8	case spring
9	Case, Relay
10	Screw Grommet
11	Overload
12	W11693756 Whirlpool Screw Assembly
13	Strap
14	Relay
18	876811 Whirlpool Grommet
19	303776 Whirlpool Dishwasher Screw
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Dampener (2)
23	Exchanger, Heat
25	Clamp (4)
26	Grommet (4)
27	W11624204 Whirlpool Screw
28	Grommet, Screw
29	WP486692 Whirlpool Refrigerator Nut
30	Guard, Fan
31	Evaporator
32	Clamp
33	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	WP549433 Whirlpool Refrigerator Heater
35	Wire Connector
36	Cord, Service
37	Fan, Blade
40	Screw, 8-36 x 3/8 (3)
42	Frame
44	833697 Whirlpool Condenser Fan Motor
45	Rail, Front
46	489340 Whirlpool Refrigerator Screw
47	Screw, 8 x 3/8
48	Bracket, Motor
49	Baffle
50	Clip, Wire (2)
56	Screw, 1/4-28 x 1/2 (2)
58	Air Baffle, Evaporator
65	549193 Whirlpool Refrigerator Power Clamp
68	WPL 842041
70	876765 Whirlpool Primary Mounting Kit Refrigerator
70	Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
71	W10843121 Whirlpool Refrigerator Tube
72	OVERLOAD
73	WP2162358 Whirlpool Refrigerator Terminal Cover
74	WP2172890 Whirlpool Refrigerator Wire
75	WP4387764 Whirlpool Run Capacitor
76	Sleeve (4) (Service Only)
77	WP4387558 Whirlpool Refrigerator Compressor Grommet
78	Support, Evaporator
79	SCREW
81	Screw, 8-32 x 1/2
83	Clamp
94	Pan, Drip
95	Shield, Heat (2)
96	Enamel, Golde
96	Toast
96	72113 Whirlpool Touch-Up Paint
96	350930 Whirlpool White Spray Paint
96	350956 Whirlpool Spray Assembly
96	72017 Whirlpool Appliance Touch-Up Paint White
96	799344 Whirlpool Refrigerator Paint
96	WP72107 Whirlpool Touchup
96	Leveler (Thinner)
96	Almond (Uncut)
96	Heater, Clamp (4)
96	VALVE, ACCESS (5/8“)
96	Golden Harvest
96	Kit, Evaporator Repair (Aluminum Epoxy)
96	WPL 799351
96	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
96	Paint, Spray (13 Oz.) (Platinum)
96	Enamal, Toast (1 Qt. Uncut)
96	978027 Whirlpool Refrigerator Primary Valve
96	WP542638 Whirlpool Refrigerator Grease
96	978030 Whirlpool Refrigerator Valve
96	WP978025 Whirlpool Refrigerator Valve
96	VALVE, ACCESS (1/2“)
96	paint, spray 13 oz. (coffee)
96	Paint, Touch-Up 1/2 Oz. (Coffee)
96	72032 Whirlpool Touch Up Paint Black
96	285006 Whirlpool Spray
96	TAPE, VINYL (3/4 X 108“)
96	WPL 876029
96	CEMENT, ALUMILASTIC (1 1/4 OZ.)
96	WP505587 Whirlpool Refrigerator Sealer
96	978026 Whirlpool Refrigerator Primary Valve
96	Platinum (Uncut)
96	WPL 72112
96	212643 Whirlpool Refrigerator Permagum Sealer
96	WPL 799833
96	350942 Whirlpool Spray Paint
96	511873 Whirlpool Refrigerator Paint
96	606755 Whirlpool Refrigerator Bag
96	Enamel, Coffee (1 Qt. Uncut)
96	833938 Whirlpool Refrigerator Terminal
96	876370 Whirlpool Refrigerator Insulation
96	WP503695 Whirlpool Refrigerator Sealer
96	876764 Whirlpool Refrigerator Primary Valve
96	Enamel, Black (1 Qt. Uncut)
