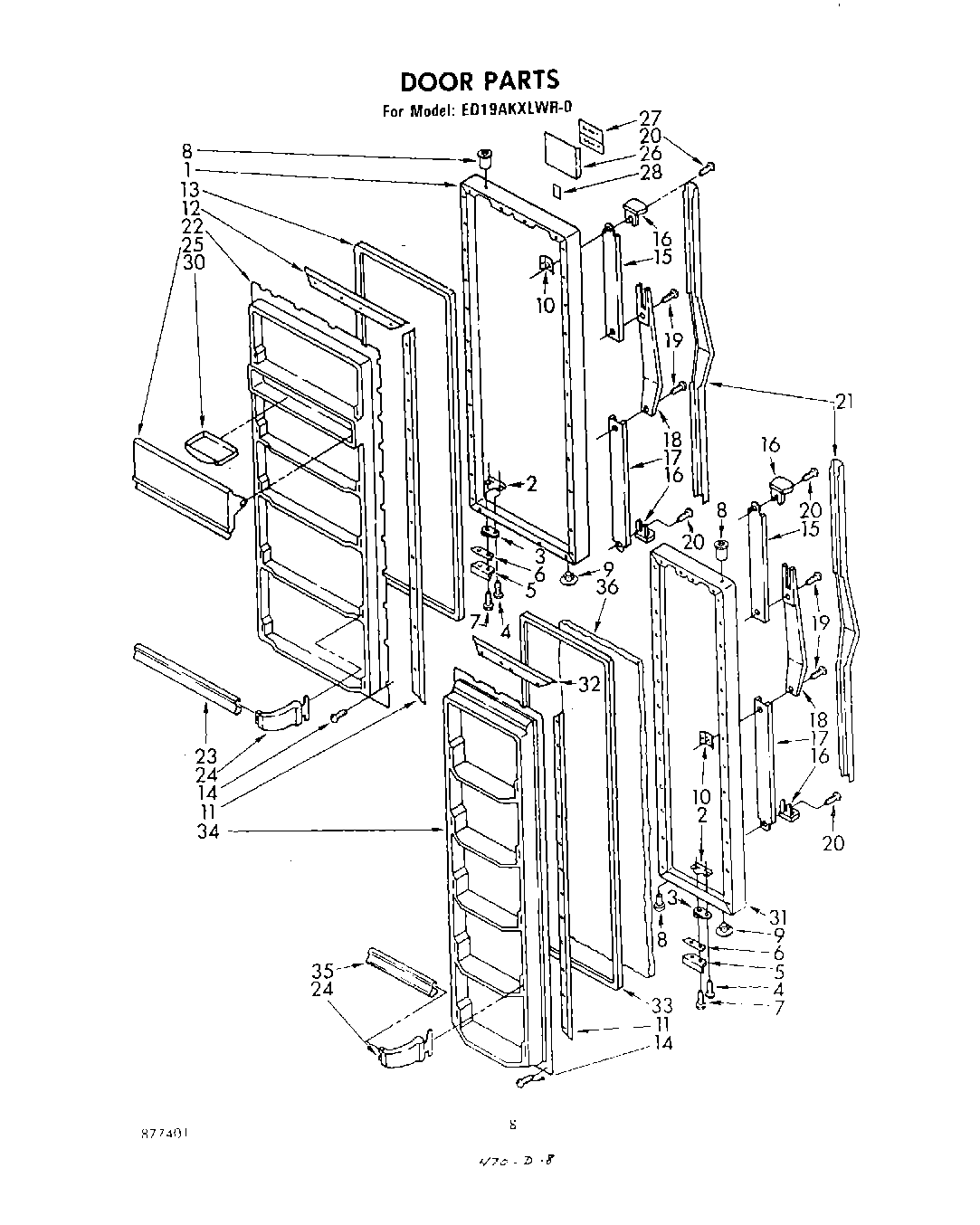

ED19AKXLWR0 05 – DOOR

Products

Position	Product
1	Door, Refrigerator (Almond)
1	Door, Refrigerator (Golden Harvest)
1	Door, Refrigerator (Coffee)
1	Door, Refrigerator (New Avocado)
1	Door, Refrigerator (White)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	Cap, Hinge Sleeve (2)
9	Hole Plug (2) (Golden Harvest)
9	Hole Plug (2) (New Avocado)
9	Hole Plug (2) (Almond)
9	Hole Plug (2)
9	Hole Plug (2) (Coffee)
10	WP939101 Whirlpool Refrigerator Plate
11	Retainer Side, Gasket
12	Retainer, Top & Bottom
13	2188404A Whirlpool Refrigerator Door Gasket
14	SCREW
15	Retainer, Top
16	Cap, Handle (2)
17	Retainer, Bottom
18	Handle
19	W11624204 Whirlpool Screw
20	Screw, 10-32 x 5/8
21	Insert, Handle
22	WPL 943827
23	Trim, Shelf (5)
24	WP849996 Whirlpool Refrigerator Endcap Trim
25	Compartment Door
26	WPL 849310
27	WPL 942217
28	Tape Strip
31	Door, Freezer (White)
31	Door, Freezer (Coffee)
31	Door, Freezer (Golden Harvest)
31	Door, Freezer (New Avocado)
31	Door, Freezer (Almond)
32	Retainer, Top & Bottom Gasket
33	2188405A Whirlpool Refrigerator Door Gasket
34	Panel, Interior
35	WPL 935361
36	WPL 876029
