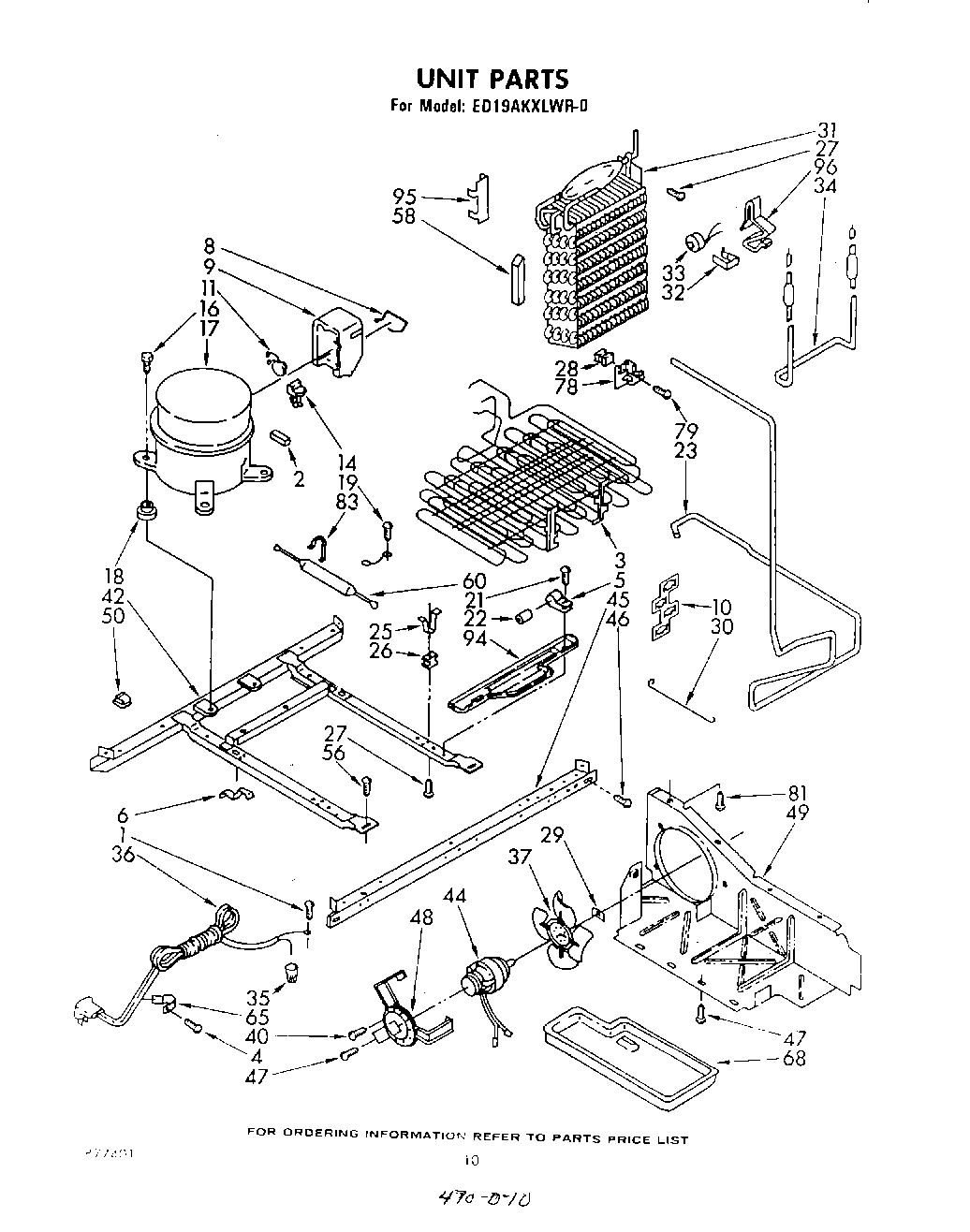

ED19AKXLWR0 06 – UNIT , NOT ILLUSTRATED AND OPTIONAL

Products

PositionProduct
1Screw, 8-32 x 3/8
2Bumper
3Condenser & Precooler Assembly
5Clamp Tube
6Clip (2)
8Spring
9Case, Relay
10Spacer Condenser (4)
11Overload
14Relay (Alternate)
14Relay
16Screw, 1/4-28 x 1“ (4)
17Compressor
18Grommet (4)
19303776 Whirlpool Dishwasher Screw
21WPW10141625 Whirlpool Refrigerator Screw Assembly
22Dampener (2)
23Exchanger, Heat
25Clamp (4)
26Grommet (4)
27W11624204 Whirlpool Screw
28Grommet, Screw
29WP486692 Whirlpool Refrigerator Nut
30Guard, Fan
31Evaporator
32Clamp
33WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34WP549433 Whirlpool Refrigerator Heater
35Wire Connector
36Cord, Service
37Fan, Blade
40Screw, 8-36 x 3/8 (3)
42Frame
44833697 Whirlpool Condenser Fan Motor
45Rail, Front
46489340 Whirlpool Refrigerator Screw
47Screw, 8 x 3/8
48Bracket, Motor
49Baffle
50Clip, Wire (2)
56Screw, 1/4-28 x 1/2 (2)
58Air Baffle, Evaporator
60W10843121 Whirlpool Refrigerator Tube
65549193 Whirlpool Refrigerator Power Clamp
68WPL 842041
78Support, Evaporator
79SCREW
81Screw, 8-15 x 3/8
83Clamp
94Pan, Drip
95Shield, Heat (2)
9672032 Whirlpool Touch Up Paint Black
96WPL 943011
96WPL 877401
96WPL 799351
96WPL 934460
96Kit, Evaporator Repair (Aluminum Epoxy)
96WPL 944001
96WPL 944002
96Heater, Clamp (4)
96Enamel, New Avocado (1 Qt. Uncut)
96WP503695 Whirlpool Refrigerator Sealer
96876370 Whirlpool Refrigerator Insulation
96833938 Whirlpool Refrigerator Terminal
96606755 Whirlpool Refrigerator Bag
96511873 Whirlpool Refrigerator Paint
96350942 Whirlpool Spray Paint
96212643 Whirlpool Refrigerator Permagum Sealer
96Golden Harvest (Uncut)
9672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
96VALVE, ACCESS (5/8“)
96Almond (Uncut)
96Leveler (Thinner)
96WP72107 Whirlpool Touchup
96799344 Whirlpool Refrigerator Paint
9672017 Whirlpool Appliance Touch-Up Paint White
96350956 Whirlpool Spray Assembly
96978026 Whirlpool Refrigerator Primary Valve
96WP505587 Whirlpool Refrigerator Sealer
96978027 Whirlpool Refrigerator Primary Valve
96Golden Harvest
96Enamel, Coffee (1 Qt. Uncut)
96Paint, Spray 13 Oz. (Avocado)
96paint, spray 13 oz. (coffee)
96Paint, Touch-Up 1/2 Oz. (Coffee)
9672109 Whirlpool Dacor Avocado Touch-Up Paint
96285006 Whirlpool Spray
96WPL 876029
96WPL 799833
96Enamel, Black (1 Qt. Uncut)
96CEMENT, ALUMILASTIC (1 1/4 OZ.)
96TAPE, VINYL (3/4 X 108“)
96VALVE, ACCESS (1/2“)
96WP978025 Whirlpool Refrigerator Valve
96978030 Whirlpool Refrigerator Valve
96WP542638 Whirlpool Refrigerator Grease
96350930 Whirlpool White Spray Paint
