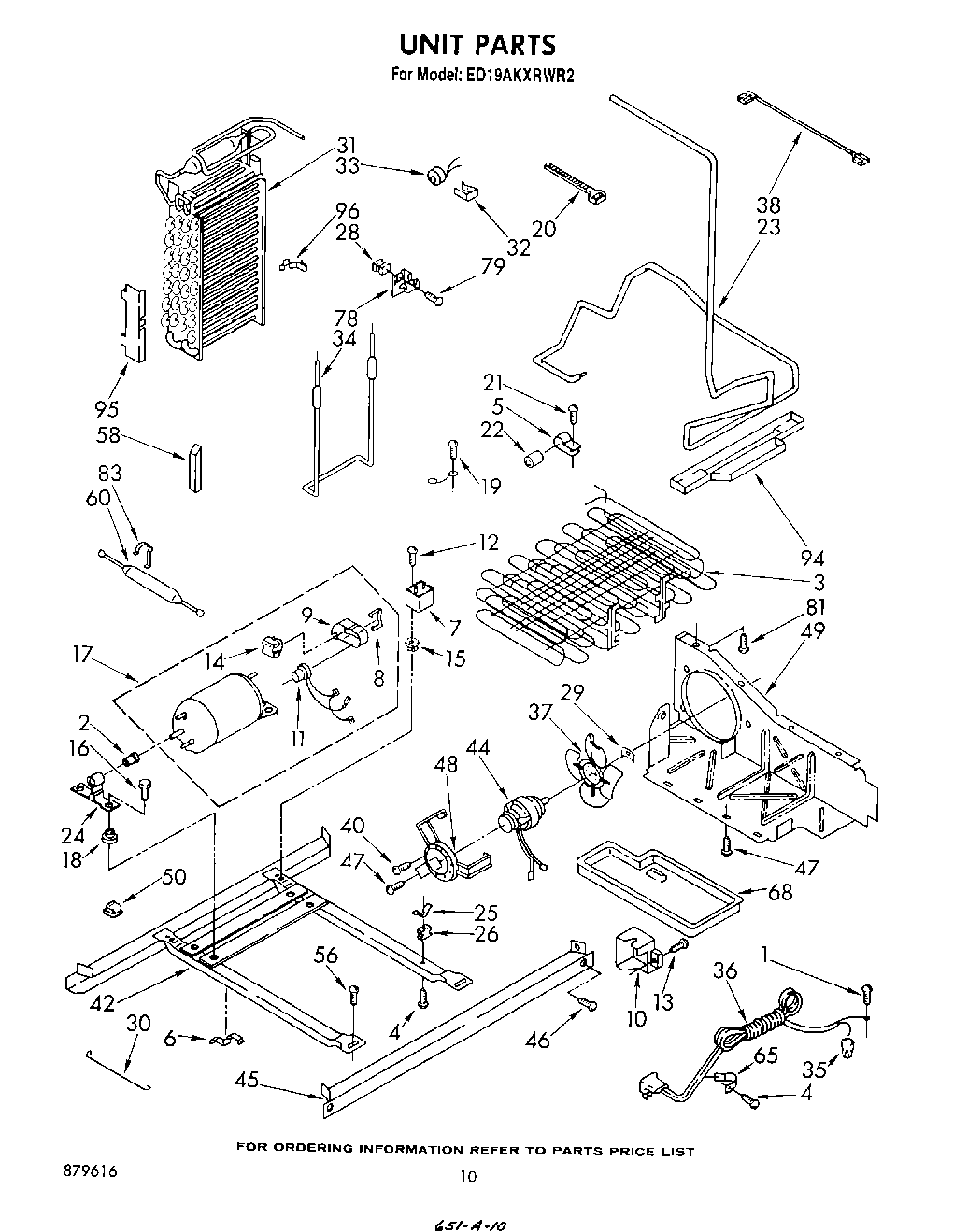

ED19AKXRWR2 06 – UNIT , NOT ILLUSTRATED

ED19AKXRWR2 06 – UNIT , NOT ILLUSTRATED

Written by

in

ED19AKXRWR2 06 – UNIT , NOT ILLUSTRATED

Products

Position	Product
	350930 Whirlpool White Spray Paint
	350942 Whirlpool Spray Paint
	285006 Whirlpool Spray
	Paint, Spray (13 Oz.) (Platinum)
	Toast
	Golden Harvest
	WPL LIT1105214
	WPL LIT879616
	Leveler (Thinner)
	WPL LIT1116002
	WPL LIT1108769
	350956 Whirlpool Spray Assembly
1	Screw, 8-32 x 3/8
2	Grommet, Compressor Bracket
3	Condenser & Precooler
4	W11624204 Whirlpool Screw
5	Clamp Tube
6	Clip (2)
7	Running Capacitor
8	Strap, Cover
9	Terminal Cover
10	WPL 549947
11	Overload
12	W11693756 Whirlpool Screw Assembly
13	WP488729 Whirlpool Refrigerator Door Screw
14	Start Relay
15	Screw Grommet
16	Screw (4)
17	Compressor KIt Includes Items (22, 23, 25, 26)
18	Grommet, Compressor (4)
19	303776 Whirlpool Dishwasher Screw
20	Strap
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Dampener (2)
23	Heat, Exchanger
24	Bracket, Mounting
25	Clamp (4)
26	Grommet (4)
28	Grommet, Screw
29	WP486692 Whirlpool Refrigerator Nut
30	Guard, Fan
31	Evaporator
32	Clamp
33	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	WP549433 Whirlpool Refrigerator Heater
35	Wire Connector
36	Cord, Service
37	Fan, Blade
38	Capacitor, Wiring
40	681390 Whirlpool Refrigerator Screw
42	Frame
44	833697 Whirlpool Condenser Fan Motor
45	Rail, Front
46	489340 Whirlpool Refrigerator Screw
47	Screw, 8 x 3/8
48	Bracket, Motor
49	Baffle
50	Clip, Wire (2)
56	Screw, 1/4-28 x 1/2 (2)
58	Air Baffle, Evaporator
60	W10843121 Whirlpool Refrigerator Tube
65	549193 Whirlpool Refrigerator Power Clamp
68	WPL 842041
78	Support, Evaporator
79	SCREW
81	Screw, 8-32 x 1/2
83	Clamp
94	Pan, Drip
95	Shield, Heat (2)
96	876764 Whirlpool Refrigerator Primary Valve
96	Kit, Evaporator Repair (Aluminum Epoxy)
96	CEMENT, ALUMILASTIC (1 1/4 OZ.)
96	Heater, Clamp (4)
96	Enamel, Black (1 Qt. Uncut)
96	72113 Whirlpool Touch-Up Paint
96	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
96	VALVE, ACCESS (5/8“)
96	876370 Whirlpool Refrigerator Insulation
96	72032 Whirlpool Touch Up Paint Black
96	WP72107 Whirlpool Touchup
96	WPL 799833
96	Enamel, Golde
96	799344 Whirlpool Refrigerator Paint
96	72017 Whirlpool Appliance Touch-Up Paint White
96	VALVE, ACCESS (1/2“)
96	Enamal, Toast (1 Qt. Uncut)
96	Platinum (Uncut)
96	TAPE, VINYL (3/4 X 108“)
96	978026 Whirlpool Refrigerator Primary Valve
96	WP503695 Whirlpool Refrigerator Sealer
96	WPL 876029
96	WP505587 Whirlpool Refrigerator Sealer
96	978027 Whirlpool Refrigerator Primary Valve
96	833938 Whirlpool Refrigerator Terminal
96	WP542638 Whirlpool Refrigerator Grease
96	WPL 799351
96	978030 Whirlpool Refrigerator Valve
96	606755 Whirlpool Refrigerator Bag
96	511873 Whirlpool Refrigerator Paint
96	212643 Whirlpool Refrigerator Permagum Sealer
96	WP978025 Whirlpool Refrigerator Valve
96	WPL 72112
96	Almond (Uncut)
