ED19AKXRWR4 06 – UNIT , LIT/OPTIONAL

ED19AKXRWR4 06 – UNIT , LIT/OPTIONAL

Written by

in

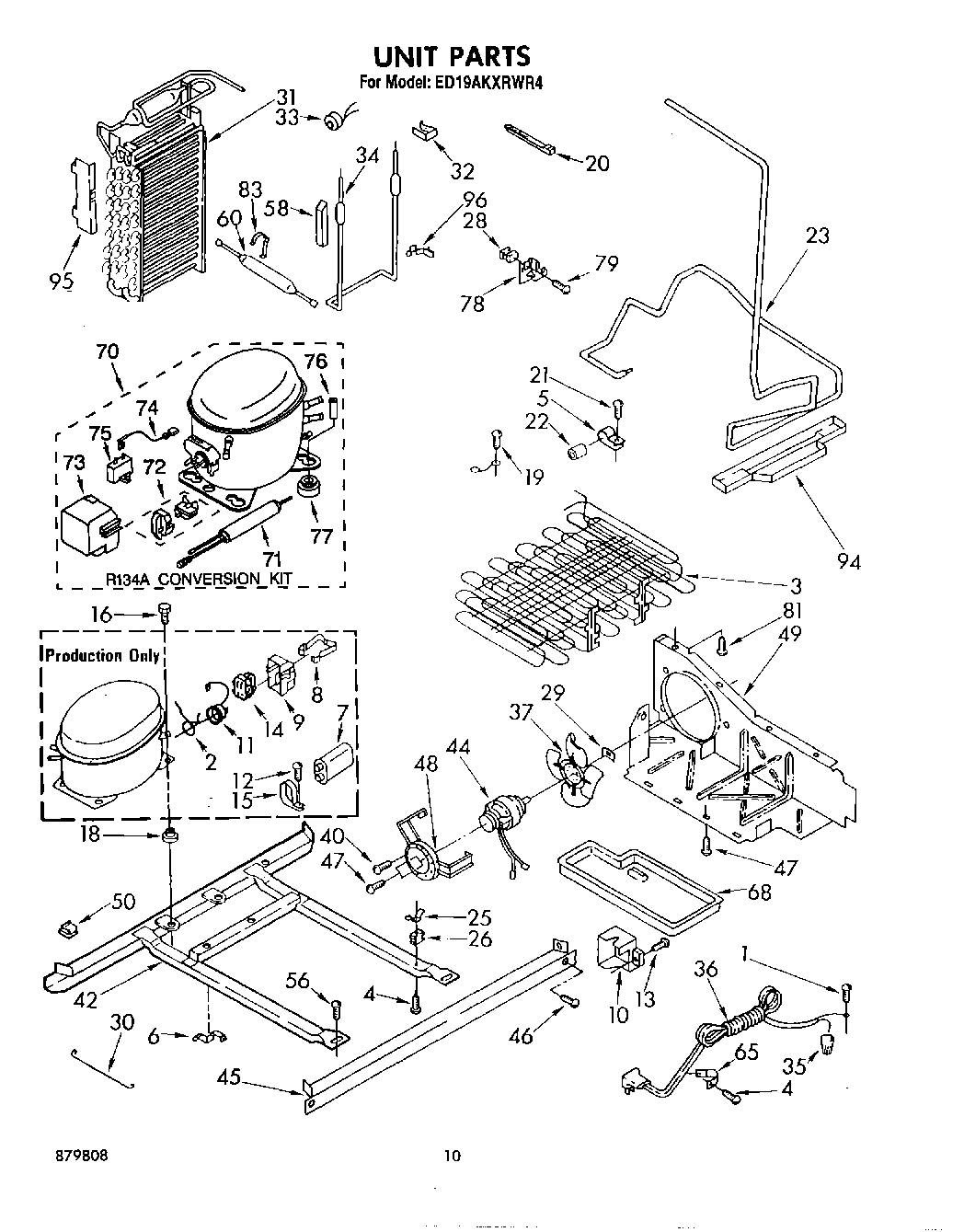

ED19AKXRWR4 06 – UNIT , LIT/OPTIONAL

Products

PositionProduct
WPL LIT1108769
WPL LIT879808
WPL LIT1118523
WPL LIT1116405
1Screw, 8-32 x 3/8
2Overload Spring
3Condenser & Precooler
4W11624204 Whirlpool Screw
5Clamp Tube
6Clip (2)
7Running Capacitor
8Strap
9Terminal Cover
10WPL 549947
11Overload
12WP489128 Whirlpool Refrigerator Screw
13WP488729 Whirlpool Refrigerator Door Screw
14WP2262181 Whirlpool Refrigerator Start Relay
15Clamp, Capacitor
18876811 Whirlpool Grommet
19303776 Whirlpool Dishwasher Screw
20Strap
21WPW10141625 Whirlpool Refrigerator Screw Assembly
22Dampener (2)
23Heat, Exchanger
25Clamp (4)
26Grommet (4)
28Grommet, Screw
29WP486692 Whirlpool Refrigerator Nut
30Guard, Fan
31Evaporator
32Clamp
33WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34WP549433 Whirlpool Refrigerator Heater
35Wire Connector
36Cord, Service
37Fan, Blade
40681390 Whirlpool Refrigerator Screw
42Frame
44833697 Whirlpool Condenser Fan Motor
45Rail, Front
46489340 Whirlpool Refrigerator Screw
47Screw, 8 x 3/8
48Bracket, Motor
49Baffle
50Clip, Wire (2)
56Screw, 1/4-28 x 1/2 (2)
58Air Baffle, Evaporator
65549193 Whirlpool Refrigerator Power Clamp
68WPL 842041
70876765 Whirlpool Primary Mounting Kit Refrigerator
70Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
71W10843121 Whirlpool Refrigerator Tube
72OVERLOAD
73WP2162358 Whirlpool Refrigerator Terminal Cover
74WP2172890 Whirlpool Refrigerator Wire
75WP4387764 Whirlpool Run Capacitor
76Sleeve (4) (Service Only)
77WP4387558 Whirlpool Refrigerator Compressor Grommet
78Support, Evaporator
79SCREW
81Screw, 8-32 x 1/2
83Clamp
94Pan, Drip
95Shield, Heat (2)
96Heater, Clamp (4)
96Golden Harvest
9672032 Whirlpool Touch Up Paint Black
96285006 Whirlpool Spray
96WPL 876029
96WPL 799833
96Kit, Evaporator Repair (Aluminum Epoxy)
96Almond (Uncut)
9672113 Whirlpool Touch-Up Paint
9672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
96350956 Whirlpool Spray Assembly
9672017 Whirlpool Appliance Touch-Up Paint White
96799344 Whirlpool Refrigerator Paint
96WP72107 Whirlpool Touchup
96Leveler (Thinner)
96Enamel, Golde
96350942 Whirlpool Spray Paint
96VALVE, ACCESS (5/8“)
96Enamel, Black (1 Qt. Uncut)
96Toast
96Paint, Spray (13 Oz.) (Platinum)
96876370 Whirlpool Refrigerator Insulation
96978030 Whirlpool Refrigerator Valve
96WP503695 Whirlpool Refrigerator Sealer
96876764 Whirlpool Refrigerator Primary Valve
96TAPE, VINYL (3/4 X 108“)
96978026 Whirlpool Refrigerator Primary Valve
96WP505587 Whirlpool Refrigerator Sealer
96978027 Whirlpool Refrigerator Primary Valve
96833938 Whirlpool Refrigerator Terminal
96WP978025 Whirlpool Refrigerator Valve
96350930 Whirlpool White Spray Paint
96Enamal, Toast (1 Qt. Uncut)
96Platinum (Uncut)
96WPL 72112
96CEMENT, ALUMILASTIC (1 1/4 OZ.)
96212643 Whirlpool Refrigerator Permagum Sealer
96VALVE, ACCESS (1/2“)
96511873 Whirlpool Refrigerator Paint
96606755 Whirlpool Refrigerator Bag
96WP542638 Whirlpool Refrigerator Grease
