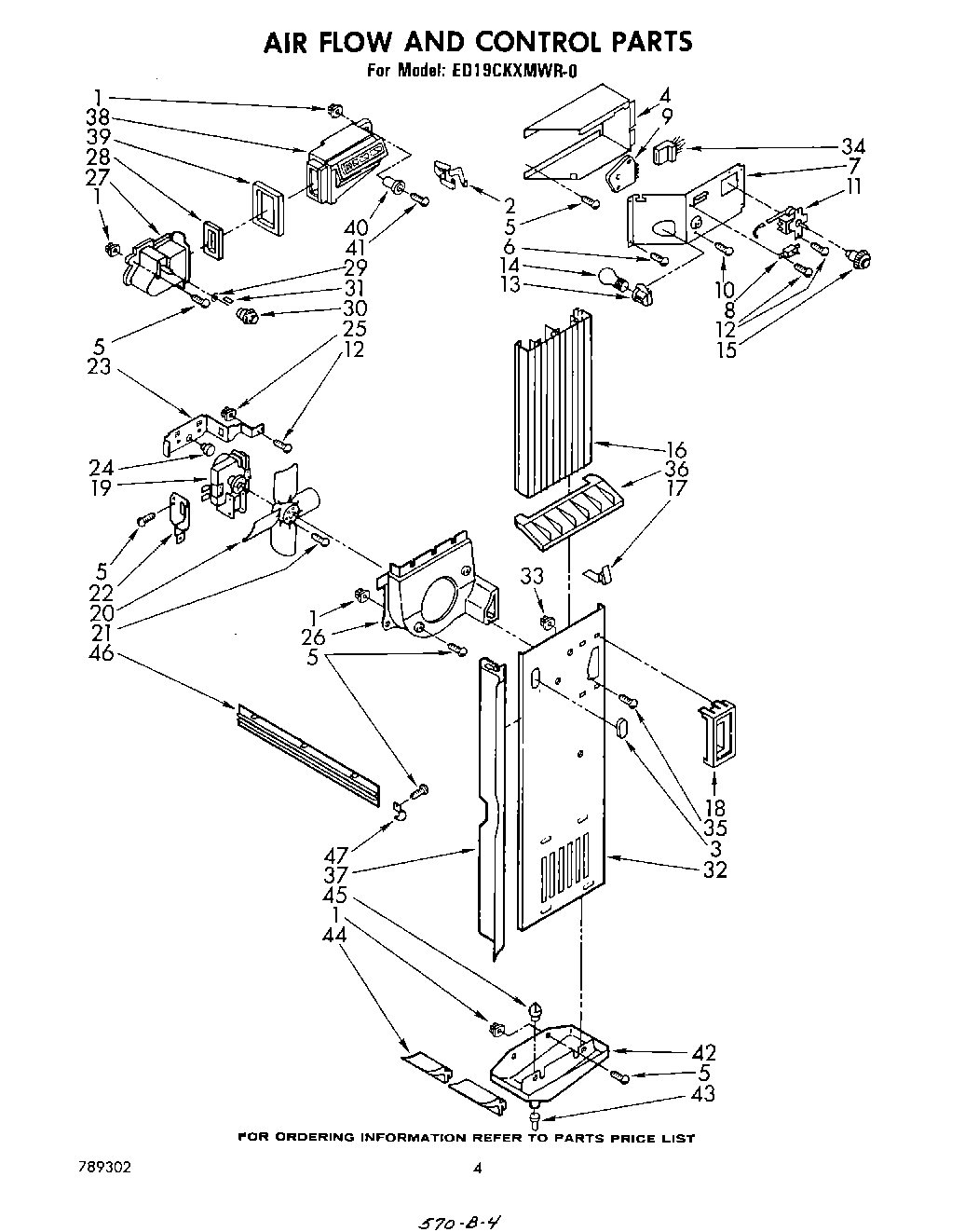

ED19CKXMWR0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Grommet
2	2215823 Whirlpool Refrigerator Clip
3	Hole Plug, Evaporator
4	Box, Control
5	W11624204 Whirlpool Screw
6	Screw, 8-32 x 3/8
7	Control Box Front
8	WP938213 Whirlpool Refrigerator Power Switch
9	Defrost Timer
10	WP3388228 Whirlpool Screw
11	WP4317800 Whirlpool Refrigerator Thermostat
12	WP489128 Whirlpool Refrigerator Screw
13	4387478 Whirlpool Refrigerator Light Socket
14	RANGE ONLY 40W 120V APPL BULB
15	Knob, Temperature Control
16	Duct, Air
17	Baffle, Air
18	Grille, Freezer
19	482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
20	Blade, Fan
21	WP487887 Whirlpool Refrigerator Screw
22	Fan, Bracket Double
23	Bracket, Fan Mounting (Single)
24	Grommet (3)
25	Screw Grommet
26	Scroll Fan
27	Air Scoop Assembly
28	Gasket, Air Scoop
29	Retainer, Damper
30	Control Knob
31	Knob, Retainer
32	Cover, Evaporator
33	Grommet
34	Liner Wiring (Defrost Timer)
35	WP488729 Whirlpool Refrigerator Door Screw
36	End Cap, Evaporator
37	Gasket (2)
38	Air Diffuser Assembly
39	Gasket, Air Diffuser
40	836667 Whirlpool Refrigerator Spacer
41	Screw, 8 x 1-1/4 (3)
42	Drain Pan
43	Fitting, Drain Pan
44	Gasket, Drain Pan
45	Cap, Drain
46	Cover, Exchanger
47	WPL 836077
