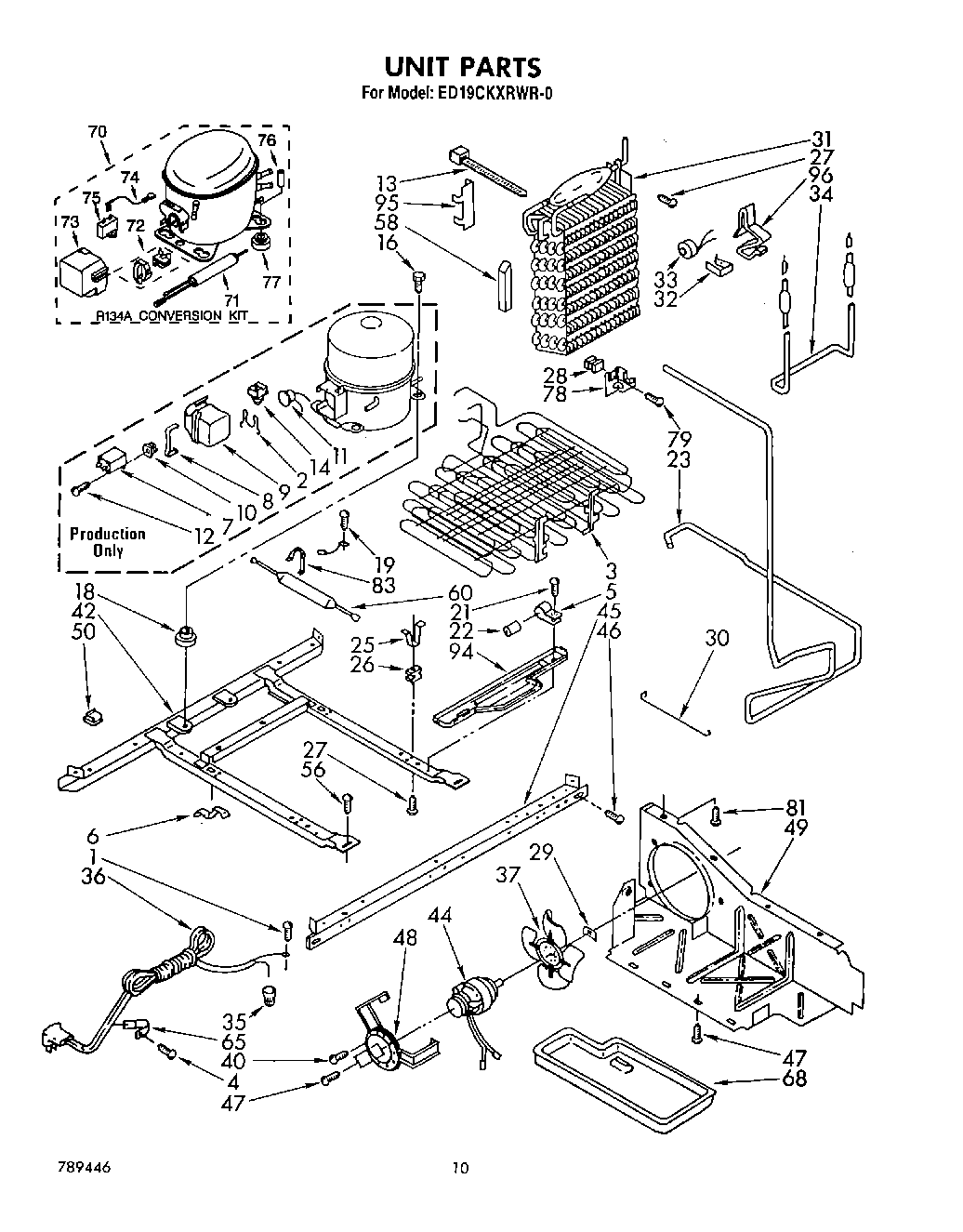

ED19CKXRWR0 06 – UNIT , NOT ILLUSTRATED

ED19CKXRWR0 06 – UNIT , NOT ILLUSTRATED

Written by

in

ED19CKXRWR0 06 – UNIT , NOT ILLUSTRATED

Products

PositionProduct
WPL LIT789446
WPL LIT1108774
WPL LIT1101061
WPL LIT1108769
1Screw, 8-32 x 3/8
2Spring, Overload
3Condenser & Precooler Assembly
5Clamp Tube
6Clip (2)
7WPW10662129 Whirlpool Refrigerator Run Capacitor
8case spring
9Case, Relay
10Screw Grommet
11Overload
12W11693756 Whirlpool Screw Assembly
13Strap
14Relay
18876811 Whirlpool Grommet
19303776 Whirlpool Dishwasher Screw
21WPW10141625 Whirlpool Refrigerator Screw Assembly
22Dampener (2)
23Exchanger, Heat
25Clamp (4)
26Grommet (4)
27W11624204 Whirlpool Screw
28Grommet, Screw
29WP486692 Whirlpool Refrigerator Nut
30Guard, Fan
31Evaporator
32Clamp
33WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34WP549433 Whirlpool Refrigerator Heater
35Wire Connector
36Cord, Service
37BLADE-FAN
40Screw, 8-36 x 3/8 (3)
42Frame
44833697 Whirlpool Condenser Fan Motor
45Rail, Front
46489340 Whirlpool Refrigerator Screw
47Screw, 8 x 3/8
48Bracket, Motor
49Baffle
50Clip, Wire (2)
56Screw, 1/4-28 x 1/2 (2)
58Air Baffle, Evaporator
65549193 Whirlpool Refrigerator Power Clamp
68WPL 842041
70876765 Whirlpool Primary Mounting Kit Refrigerator
70Compressor (Includes Items 71, 72, 73, 74, 75, 76, & 77) (Also Order
71W10843121 Whirlpool Refrigerator Tube
72OVERLOAD
73WP2162358 Whirlpool Refrigerator Terminal Cover
74WP2172890 Whirlpool Refrigerator Wire
75WP4387764 Whirlpool Run Capacitor
76Sleeve (4) (Service Only)
77WP4387558 Whirlpool Refrigerator Compressor Grommet
78Support, Evaporator
79SCREW
81Screw, 8-32 x 1/2
83Clamp
94Pan, Drip
95Shield, Heat (2)
96VALVE, ACCESS (5/8“)
96Almond (Uncut)
96Toast
96285006 Whirlpool Spray
96350956 Whirlpool Spray Assembly
9672017 Whirlpool Appliance Touch-Up Paint White
96Golden Harvest (Uncut)
9672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
96Golden Harvest
96Heater, Clamp (4)
96799344 Whirlpool Refrigerator Paint
96Kit, Evaporator Repair (Aluminum Epoxy)
96WP72107 Whirlpool Touchup
96350930 Whirlpool White Spray Paint
9672113 Whirlpool Touch-Up Paint
96Leveler (Thinner)
96Paint, Spray (13 Oz.) (Platinum)
96Enamal, Toast (1 Qt. Uncut)
96978026 Whirlpool Refrigerator Primary Valve
96WP505587 Whirlpool Refrigerator Sealer
96978027 Whirlpool Refrigerator Primary Valve
96WP542638 Whirlpool Refrigerator Grease
9672032 Whirlpool Touch Up Paint Black
96978030 Whirlpool Refrigerator Valve
96WPL 876029
96WPL 799833
96Enamel, Black (1 Qt. Uncut)
96CEMENT, ALUMILASTIC (1 1/4 OZ.)
96WP978025 Whirlpool Refrigerator Valve
96876764 Whirlpool Refrigerator Primary Valve
96Platinum (Uncut)
96WPL 72112
96511873 Whirlpool Refrigerator Paint
96212643 Whirlpool Refrigerator Permagum Sealer
96350942 Whirlpool Spray Paint
96VALVE, ACCESS (1/2“)
96606755 Whirlpool Refrigerator Bag
96833938 Whirlpool Refrigerator Terminal
96876370 Whirlpool Refrigerator Insulation
96WP503695 Whirlpool Refrigerator Sealer
96TAPE, VINYL (3/4 X 108“)
