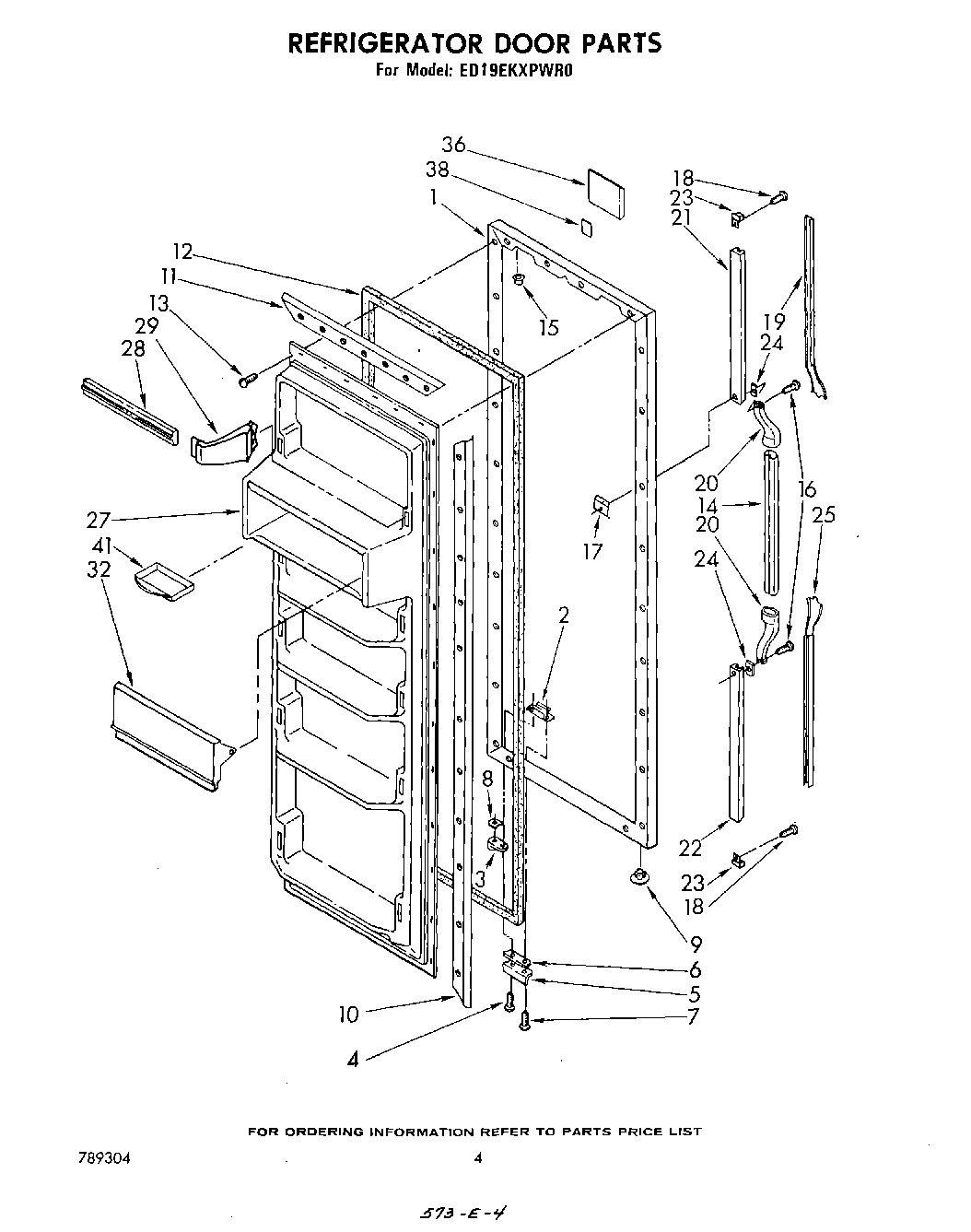

ED19EKXPWR0 03 – REFRIGERATOR DOOR

Products

Position	Product
1	Refrigerator, Door Panel (Platinum)
1	Refrigerator, Door Panel (Toast)
1	Refrigerator, Door Panel (Coffee)
1	Refrigerator, Door Panel (White)
1	Refrigerator, Door Panel (Golden Harvest)
1	Refrigerator, Door Panel (Almond)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	WP1104787 Whirlpool Refrigerator Shim
9	Hole Plug (2)
10	Retainer Side, Gasket
11	Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	SCREW
14	Handle, Center
15	Cap, Hinge Sleeve (2)
17	Screw Anchor (2)
18	Screw
19	Insert, Handle (Top)
20	Center End Cap, Handle
21	Retainer Insert
22	Retainer Insert (Bottom)
23	End Cap
24	Shim
25	Insert, Handle
27	Panel, Interior
28	Trim, Door Shelf
29	WP849996 Whirlpool Refrigerator Endcap Trim
32	Compartment Door
36	Escutcheon, Nameplate
38	Tape Strip
