ED19EKXPWR0 04 – FREEZER DOOR

ED19EKXPWR0 04 – FREEZER DOOR

Written by

in

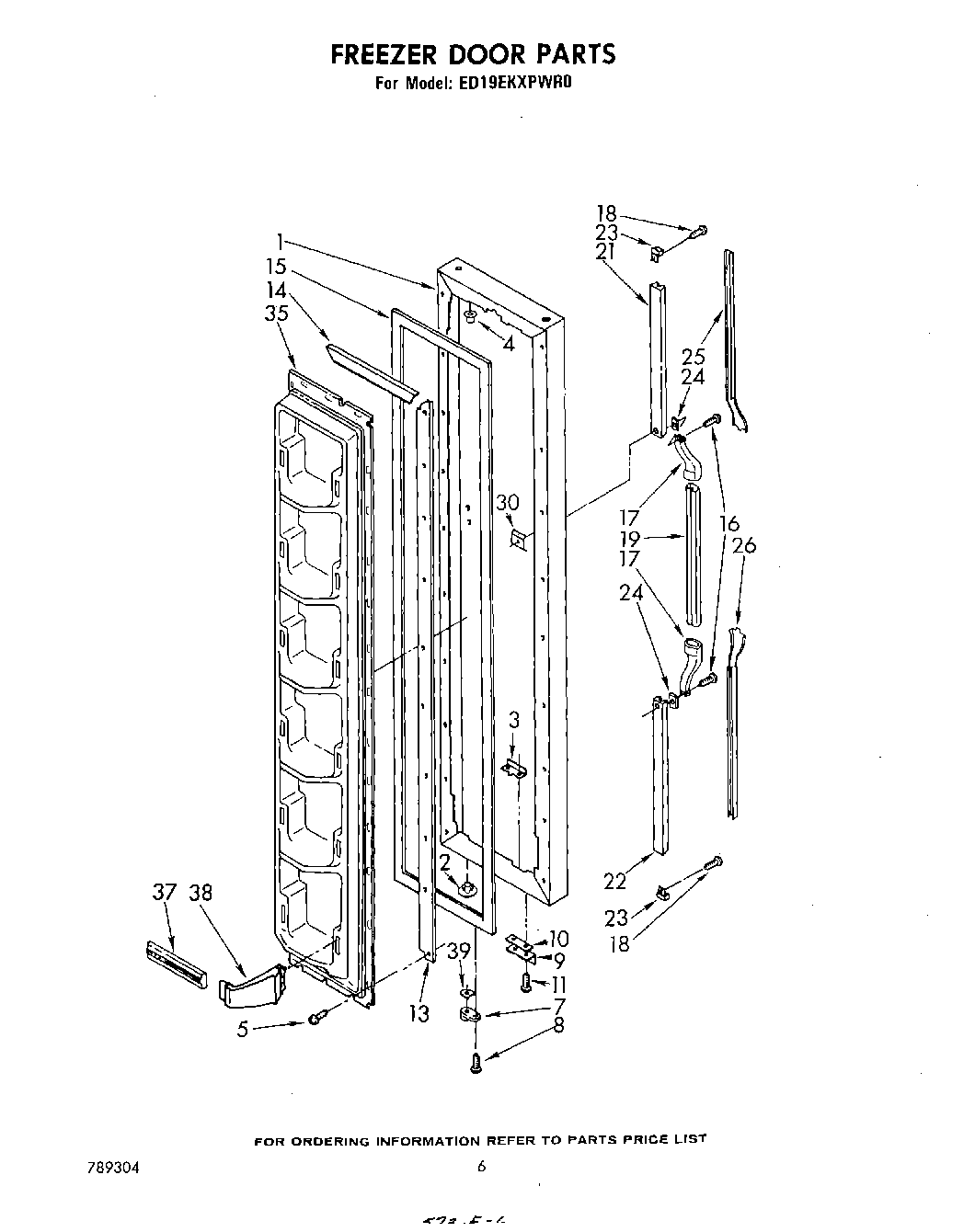

ED19EKXPWR0 04 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (Golden Harvest)
1Freezer, Door Panel (White)
1Freezer, Door Panel (Coffee)
1Freezer Door Panel (Platinum)
1Freezer, Door Panel (Toast)
1Freezer, Door Panel (Almond)
2Hole Plug (2)
3Tap Plate
4Cap, Hinge Sleeve (2)
74318165 Whirlpool Refrigerator Door Closure Cam Kit
8WP489069 Whirlpool Compactor Screw
9Bracket, Door Stop
10Shim
11Screw (Repair)
11Screw, 89 x 5/8
13Retainer Side, Gasket
14Retainer, Top & Bottom Gasket
152188405A Whirlpool Refrigerator Door Gasket
16SCREW
17Center End Cap, Handle
18Screw
19Handle, Center
21Retainer Insert
22Retainer Insert (Bottom)
23End Cap
24Shim
25Insert, Handle (Top)
26Insert, Handle
30Screw Anchor (2)
35Panel, Interior
37Trim, Door Shelf
38WP849996 Whirlpool Refrigerator Endcap Trim
39WP1104787 Whirlpool Refrigerator Shim
