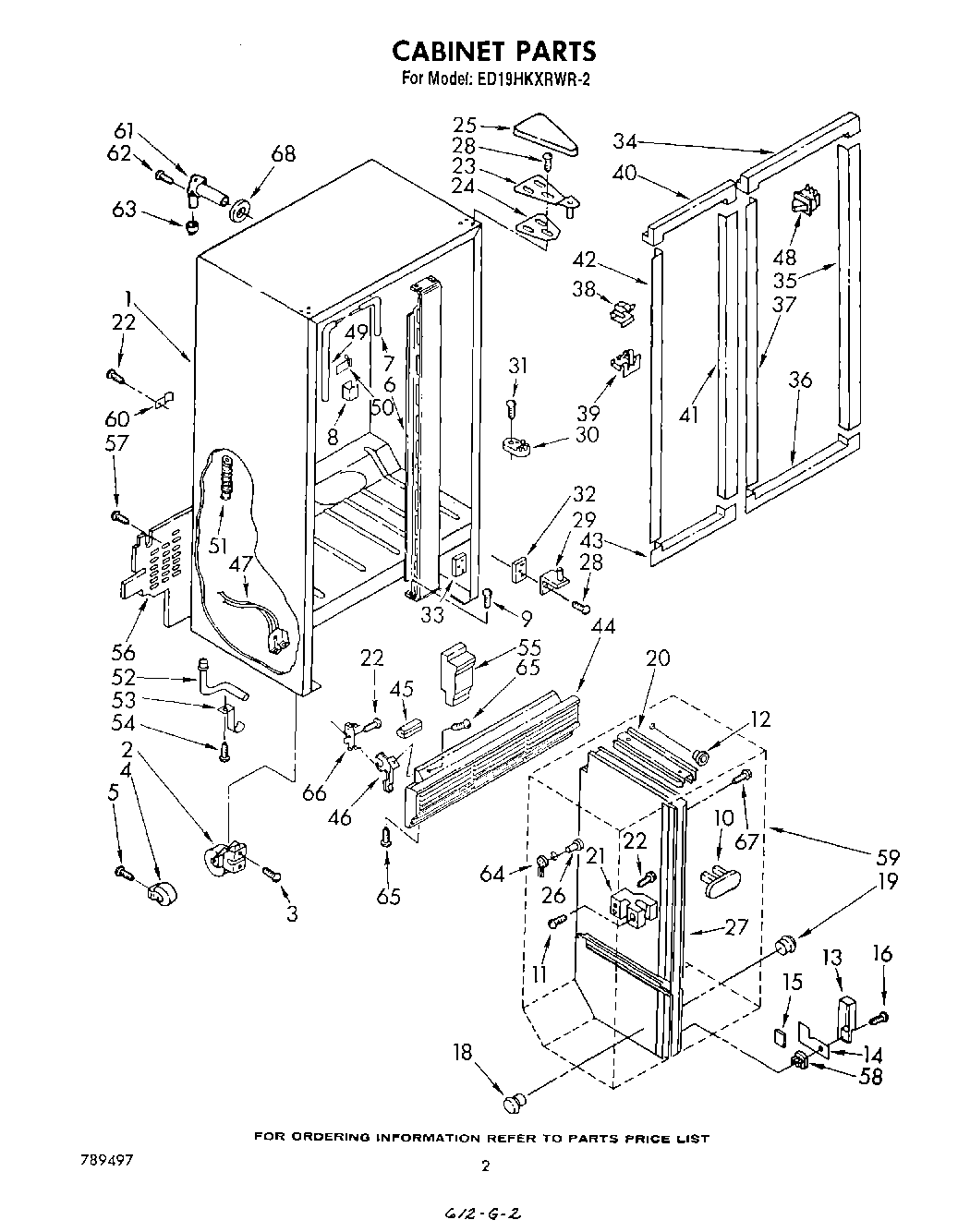

ED19HKXRFR2 02 – CABINET

Products

PositionProduct
1Cabinet (Not A Serviceable Part)
2Roller, Front
3Screw, 5/16-24 x 1
4WPW10250570 Whirlpool Refrigerator Cabinet Roller
5Screw, 1/4-28 x 1/2 (2)
6Center Rail & Bracket Assembly (Platinum)
6Center Rail & Bracket Assembly (White)
6Center Rail & Bracket Assembly (Golden Harvest)
6Center Rail & Bracket Assembly (Almond)
6Center Rail & Bracket Assembly (Toast)
7WPL 851874
8Clip, Heater (2)
9WP308685 Whirlpool Microwave Screw
9Screw, 8 x 3/8
10WPL 836080
11Screw (2)
12Grommet, Wiring
13Escutcheon Meat
14Slide, Meat Pan Control
15Pad, Foam
16Screw, 8-15 x 1/2 (4)
18Retainer, Hole Insert
19Insert, Hole
20WPL 842435
21WPL 836079
22W11624204 Whirlpool Screw
23Hinge, Top
24Shim, Hinge
251119787 Whirlpool Refrigerator Hinge Cover
25Hinge Cover (Golden Harvest)
25Hinge Cover (Toast)
26Receptacle Cap
27Div
28WP999367 Whirlpool Refrigerator Screw
28Screw (Repair)
29Hinge Bottom (L.H)
29Hinge Bottom (R.H)
30WPW10329686 Whirlpool Door Cam Black
31Screw (Repair)
31WP486579 Whirlpool Air Conditioner Screw
32Shim, Bottom Hinge
33Tap Plate
34WPL 843335
35WPL 842178
36WPL 836446
37WPL 836213
38Breaker, Clip
39Clip, Breaker Retainer (2)
40WPL 843334
41WPL 836108
42WPL 836174
43WPL 836447
44Exterior, Grille (Platinum)
44Exterior, Grille (White)
44Exterior, Grille (Almond)
44Exterior, Grille (Golden Harvest)
44Exterior, Grille (Toast)
45Bumper, Grille
46WP944224 Whirlpool Refrigerator Support
47WPL 548734
48W11384469 Whirlpool Door Switch
49Heater, Stile
50WPL 935663
51WPL 836068
52Extension, Drain Fitting
53Cup, Drain Extension
54Screw, 8-15 x 3/8
55WPL 836372
56WPL 850457
58Grommet
59WPL ARI25650A9
60WPL 836077
61Fitting, Water Tube
62WP98165 Whirlpool Screw
63WP487996 Whirlpool Refrigerator Cap Tube
64Wiring, Ice Maker
65WPL 489085
66WPL 989068
67WP489069 Whirlpool Compactor Screw
68WP1106508 Whirlpool Refrigerator Gasket
