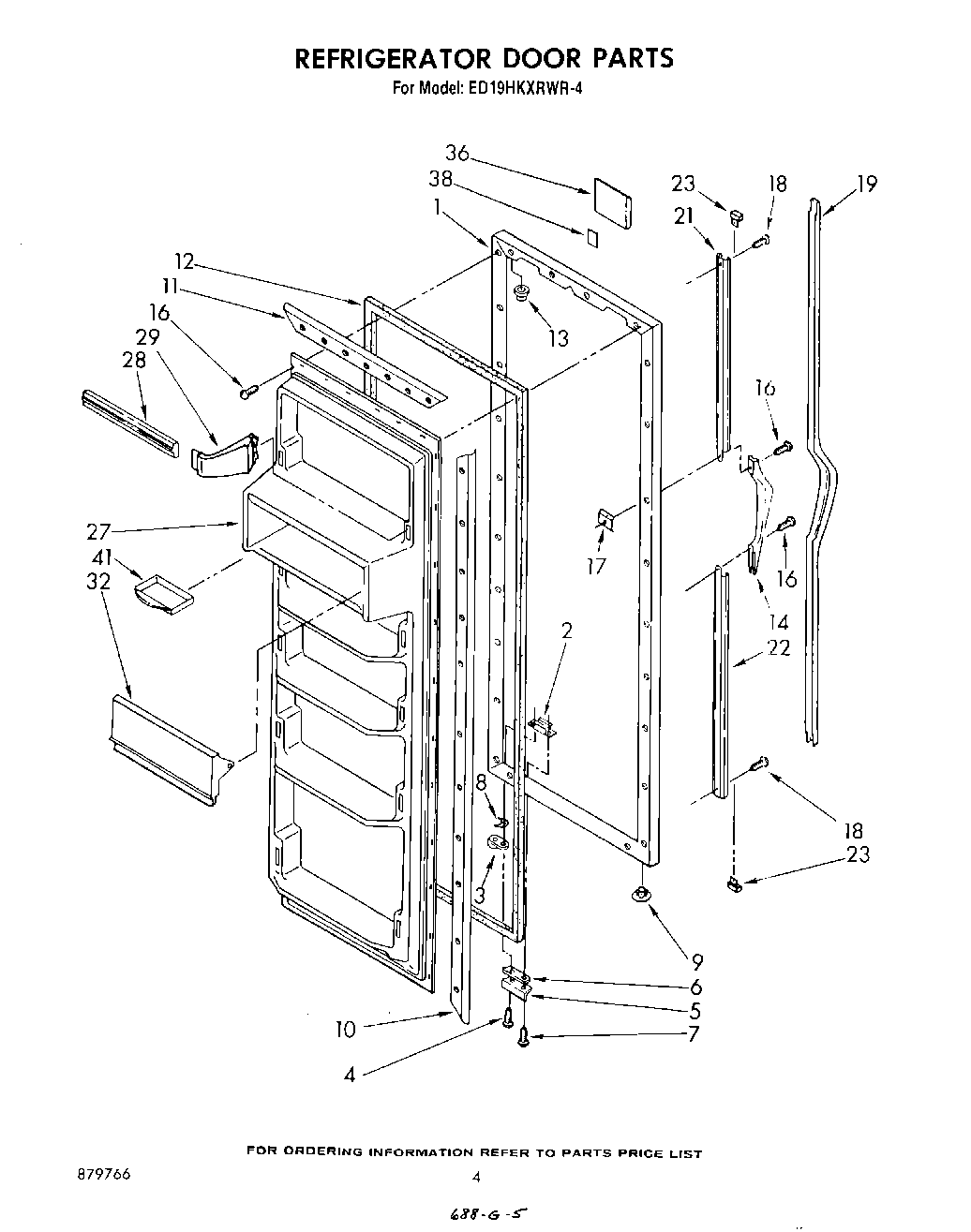

ED19HKXRFR4 03 – REFRIGERATOR DOOR

Products

Position	Product
1	Door, Refrigerator (Almond)
1	Door, Refrigerator (Golden Harvest)
1	Door, Refrigerator (White)
1	Refrigerator, Door Panel (Platinum)
1	Refrigerator, Door Panel (Toast)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	WP1104787 Whirlpool Refrigerator Shim
9	Hole Plug (2)
10	Retainer Side, Gasket
11	Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle
17	WP939101 Whirlpool Refrigerator Plate
18	Screw, 10-32 x 5/8
19	Insert, Handle (Golden Harvest)
19	Insert Handle (Gold)
21	Retainer, Top
22	Retainer, Bottom
23	Cap, Handle (2)
27	Panel, Interior
28	Trim, Door Shelf
29	WP849996 Whirlpool Refrigerator Endcap Trim
32	Compartment, Door Utility
36	Nameplate
38	Tape Strip
