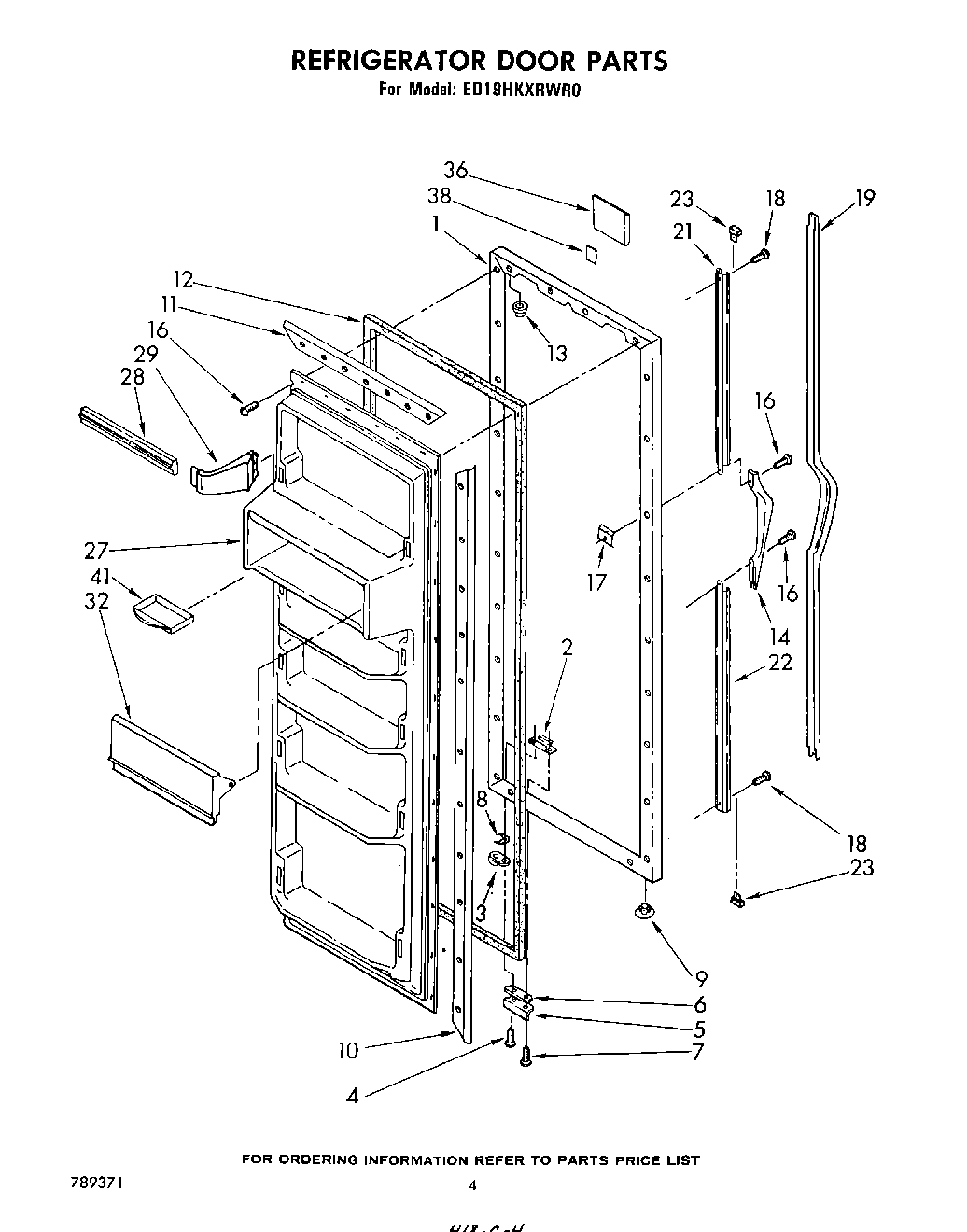

ED19HKXRGR0 03 – REFRIGERATOR DOOR

Products

Position	Product
1	Door, Refrigerator (Coffee)
1	Door, Refrigerator (White)
1	Refrigerator, Door Panel (Platinum)
1	Refrigerator, Door Panel (Toast)
1	Door, Refrigerator (Golden Harvest)
1	Door, Refrigerator (Almond)
2	Tap Plate
3	4318165 Whirlpool Refrigerator Door Closure Cam Kit
4	WP489069 Whirlpool Compactor Screw
5	Bracket, Door Stop
6	Shim
7	Screw, 89 x 5/8
8	WP1104787 Whirlpool Refrigerator Shim
9	Hole Plug (2)
10	Retainer Side, Gasket
11	Retainer, Top & Bottom
12	2188404A Whirlpool Refrigerator Door Gasket
13	Cap, Hinge Sleeve (2)
14	Handle
17	WP939101 Whirlpool Refrigerator Plate
18	Screw, 10-32 x 5/8
19	Insert, Handle
21	Retainer, Top
22	Retainer, Bottom
23	Cap, Handle (2)
27	Panel, Interior
27	WPL 943827
28	Trim, Shelf (5)
29	WP849996 Whirlpool Refrigerator Endcap Trim
32	Compartment Door
36	Nameplate
38	Tape Strip
