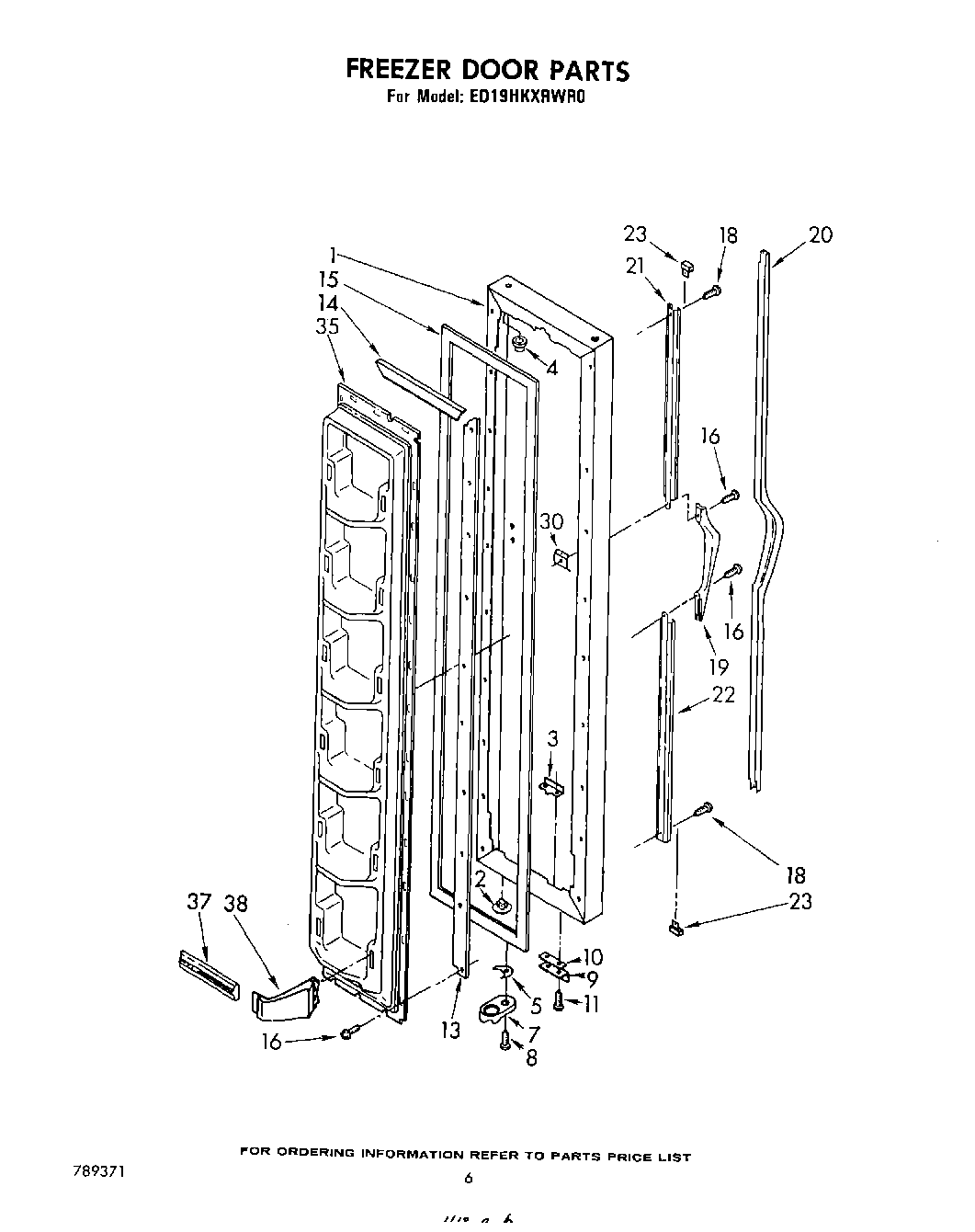

ED19HKXRGR0 04 – FREEZER DOOR

ED19HKXRGR0 04 – FREEZER DOOR

Written by

in

ED19HKXRGR0 04 – FREEZER DOOR

Products

PositionProduct
1Freezer, Door Panel (Toast)
1Door, Freezer (Almond)
1Door, Freezer (Golden Harvest)
1Freezer, Door Panel (Platinum)
1Door, Freezer (White)
1Door, Freezer (Coffee)
2Hole Plug (2)
3Tap Plate
4Cap, Hinge Sleeve (2)
5WP1104787 Whirlpool Refrigerator Shim
74318165 Whirlpool Refrigerator Door Closure Cam Kit
8WP489069 Whirlpool Compactor Screw
9Bracket, Door Stop
10Shim
11Screw, 89 x 5/8
11Screw (Repair)
13Retainer Side, Gasket
14Retainer, Top & Bottom Gasket
152188405A Whirlpool Refrigerator Door Gasket
16SCREW
18Screw, 10-32 x 5/8
19Handle
20Insert, Handle
21Retainer, Top
22Retainer, Bottom
23Cap, Handle (2)
30WP939101 Whirlpool Refrigerator Plate
35Panel, Interior
35Panel, Interior
37WPL 935361
38WP849996 Whirlpool Refrigerator Endcap Trim
