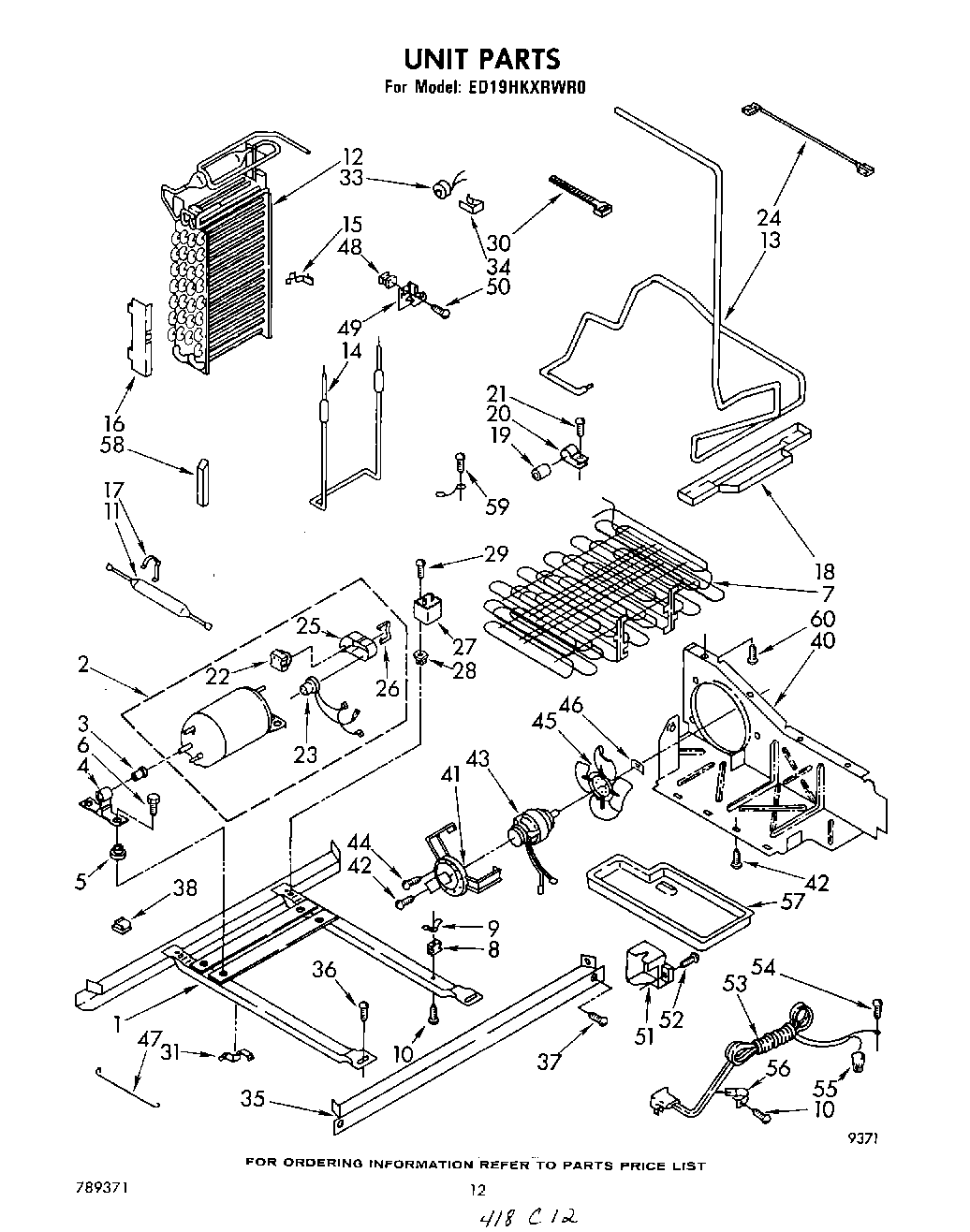

ED19HKXRGR0 07 – UNIT

Products

Position	Product
1	Frame
2	Compressor KIt Includes Items (22, 23, 25, 26)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser & Precooler
8	Grommet (4)
9	Clamp (4)
10	W11624204 Whirlpool Screw
11	W10843121 Whirlpool Refrigerator Tube
12	Evaporator
13	Heat, Exchanger
14	WP549433 Whirlpool Refrigerator Heater
15	Heater, Clamp (4)
16	Shield, Heat (2)
17	Clamp
18	Pan, Drip
19	Dampener (2)
20	Clamp Tube
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Start Relay
23	Overload
24	Capacitor, Wiring
25	Terminal Cover
26	Strap, Cover
27	Running Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	Strap
31	Clip (2)
33	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	Clamp
35	Rail, Front
36	Screw, 1/4-28 x 1/2 (2)
37	489340 Whirlpool Refrigerator Screw
38	Clip, Wire (2)
40	Baffle
41	Bracket, Motor
42	Screw, 8 x 3/8
43	833697 Whirlpool Condenser Fan Motor
44	Screw, 8-36 x 3/8 (3)
45	Fan, Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Guard, Fan
48	Grommet, Screw
49	Support, Evaporator
50	SCREW
51	WPL 549947
52	WP488729 Whirlpool Refrigerator Door Screw
53	Cord, Service
54	Screw, 8-32 x 3/8
55	Wire Connector
56	549193 Whirlpool Refrigerator Power Clamp
57	WPL 842041
58	Air Baffle, Evaporator
59	303776 Whirlpool Dishwasher Screw
60	VALVE, ACCESS (5/8“)
60	Screw, 8-15 x 3/8
60	876764 Whirlpool Refrigerator Primary Valve
60	978026 Whirlpool Refrigerator Primary Valve
60	978027 Whirlpool Refrigerator Primary Valve
60	978030 Whirlpool Refrigerator Valve
60	VALVE, ACCESS (1/2“)
60	WP978025 Whirlpool Refrigerator Valve
