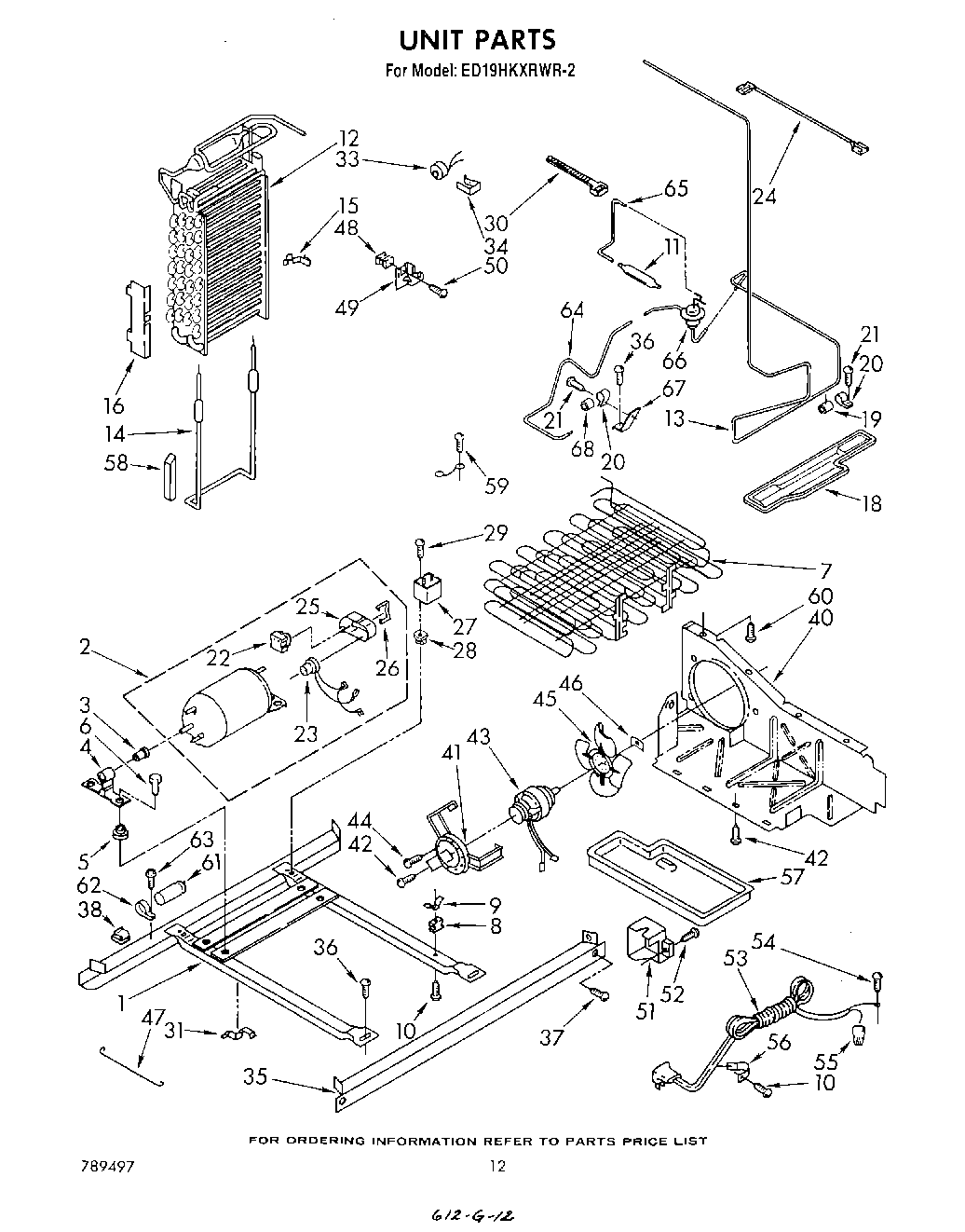

ED19HKXRNR2 07 – UNIT

Products

Position	Product
1	Frame
2	Compressor KIt Includes Items (22, 23, 25, 26)
3	Grommet, Compressor Bracket
4	Bracket, Mounting
5	Grommet, Compressor (4)
6	Screw (4)
7	Condenser & Precooler
8	Grommet (4)
9	Clamp (4)
10	W11624204 Whirlpool Screw
11	Drier
12	Evaporator
13	Heat, Exchanger
14	WP549433 Whirlpool Refrigerator Heater
15	Heater, Clamp (4)
16	Shield, Heat (2)
18	Pan, Drip
19	Dampener (2)
20	Clamp Tube
21	WPW10141625 Whirlpool Refrigerator Screw Assembly
22	Relay, (For Service Compressor Only)
23	Overload, (For Service Compressor Only)
24	Capacitor, Wiring
25	Terminal Cover
26	Strap, Cover
27	Running Capacitor
28	Screw Grommet
29	W11693756 Whirlpool Screw Assembly
30	Strap
31	Clip (2)
33	WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat
34	Clamp
35	Rail, Front
36	Screw, 1/4-28 x 1/2 (2)
37	489340 Whirlpool Refrigerator Screw
38	Clip, Wire (2)
40	Baffle
41	Bracket, Motor
42	Screw, 8 x 3/8
43	833697 Whirlpool Condenser Fan Motor
44	Screw, 8-36 x 3/8 (3)
45	Fan, Blade
46	WP486692 Whirlpool Refrigerator Nut
47	Guard, Fan
48	Grommet, Screw
49	Support, Evaporator
50	SCREW
51	WPL 549947
52	WP488729 Whirlpool Refrigerator Door Screw
53	Cord, Service
54	Screw, 8-32 x 3/8
55	Wire Connector
56	549193 Whirlpool Refrigerator Power Clamp
57	WPL 842041
58	Air Baffle, Evaporator
59	303776 Whirlpool Dishwasher Screw
60	Screw, 8-15 x 3/8
61	Capacitor, Start
62	Tube Clamp
63	WP489128 Whirlpool Refrigerator Screw
64	Heat, Exchanger Tube Extension
65	Drier, Extension Tube
66	Valve, Fluid Control
67	Heat, Exchanger Bracket
68	876764 Whirlpool Refrigerator Primary Valve
68	VALVE, ACCESS (5/8“)
68	978026 Whirlpool Refrigerator Primary Valve
68	WP2158826 Whirlpool Refrigerator Dampener
68	VALVE, ACCESS (1/2“)
68	WP978025 Whirlpool Refrigerator Valve
68	978030 Whirlpool Refrigerator Valve
68	978027 Whirlpool Refrigerator Primary Valve
