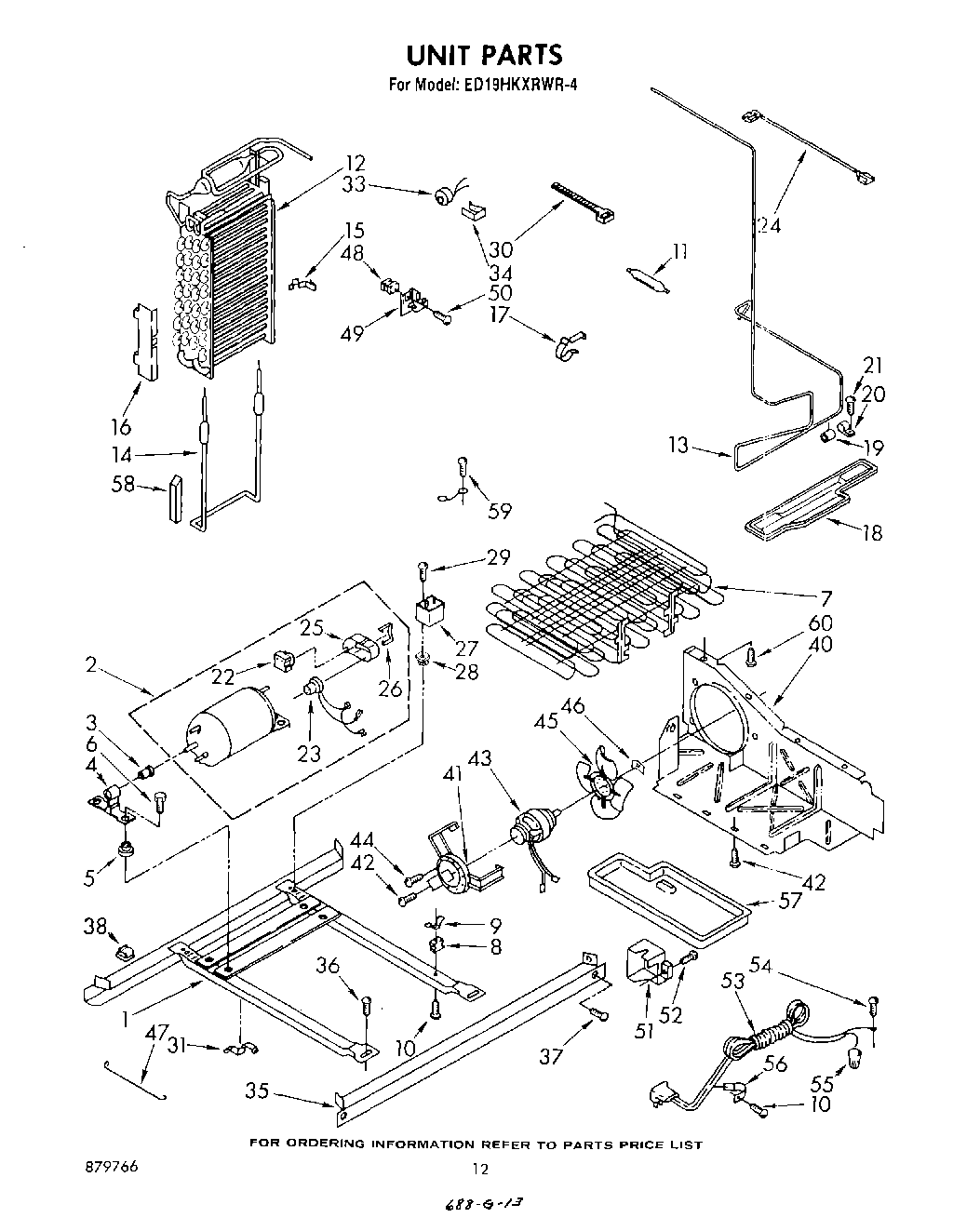

| 1 | Frame |
| 2 | Compressor KIt Includes Items (22, 23, 25, 26) |
| 3 | Grommet, Compressor Bracket |
| 4 | Bracket, Mounting |
| 5 | Grommet, Compressor (4) |
| 6 | Screw (4) |
| 7 | Condenser & Precooler |
| 8 | Grommet (4) |
| 9 | Clamp (4) |
| 10 | W11624204 Whirlpool Screw |
| 11 | W10843121 Whirlpool Refrigerator Tube |
| 12 | Evaporator |
| 13 | Heat, Exchanger |
| 14 | WP549433 Whirlpool Refrigerator Heater |
| 15 | Heater, Clamp (4) |
| 16 | Shield, Heat (2) |
| 17 | Clamp |
| 18 | Pan, Drip |
| 19 | Dampener (2) |
| 20 | Clamp Tube |
| 21 | WPW10141625 Whirlpool Refrigerator Screw Assembly |
| 22 | Start Relay |
| 23 | Overload |
| 24 | Capacitor, Wiring |
| 25 | Terminal Cover |
| 26 | Strap, Cover |
| 27 | Running Capacitor |
| 28 | Screw Grommet |
| 29 | W11693756 Whirlpool Screw Assembly |
| 30 | Strap |
| 31 | Clip (2) |
| 33 | WP4387489 Whirlpool Refrigerator Bi-Metal Defrost Thermostat |
| 34 | Clamp |
| 35 | Rail, Front |
| 36 | Screw, 1/4-28 x 1/2 (2) |
| 37 | 489340 Whirlpool Refrigerator Screw |
| 38 | Clip, Wire (2) |
| 40 | Baffle |
| 41 | Bracket, Motor |
| 42 | Screw, 8 x 3/8 |
| 43 | 833697 Whirlpool Condenser Fan Motor |
| 44 | 681390 Whirlpool Refrigerator Screw |
| 45 | Fan, Blade |
| 46 | WP486692 Whirlpool Refrigerator Nut |
| 47 | Guard, Fan |
| 48 | Grommet, Screw |
| 49 | Support, Evaporator |
| 50 | SCREW |
| 51 | WPL 549947 |
| 52 | WP488729 Whirlpool Refrigerator Door Screw |
| 53 | Cord, Service |
| 54 | Screw, 8-32 x 3/8 |
| 55 | Wire Connector |
| 56 | 549193 Whirlpool Refrigerator Power Clamp |
| 57 | WPL 842041 |
| 58 | Air Baffle, Evaporator |
| 59 | 303776 Whirlpool Dishwasher Screw |
| 60 | Screw, 8-15 x 3/8 |
| 60 | VALVE, ACCESS (5/8``) |
| 60 | 978030 Whirlpool Refrigerator Valve |
| 60 | 876764 Whirlpool Refrigerator Primary Valve |
| 60 | 978026 Whirlpool Refrigerator Primary Valve |
| 60 | 978027 Whirlpool Refrigerator Primary Valve |
| 60 | WP978025 Whirlpool Refrigerator Valve |
| 60 | VALVE, ACCESS (1/2``) |
