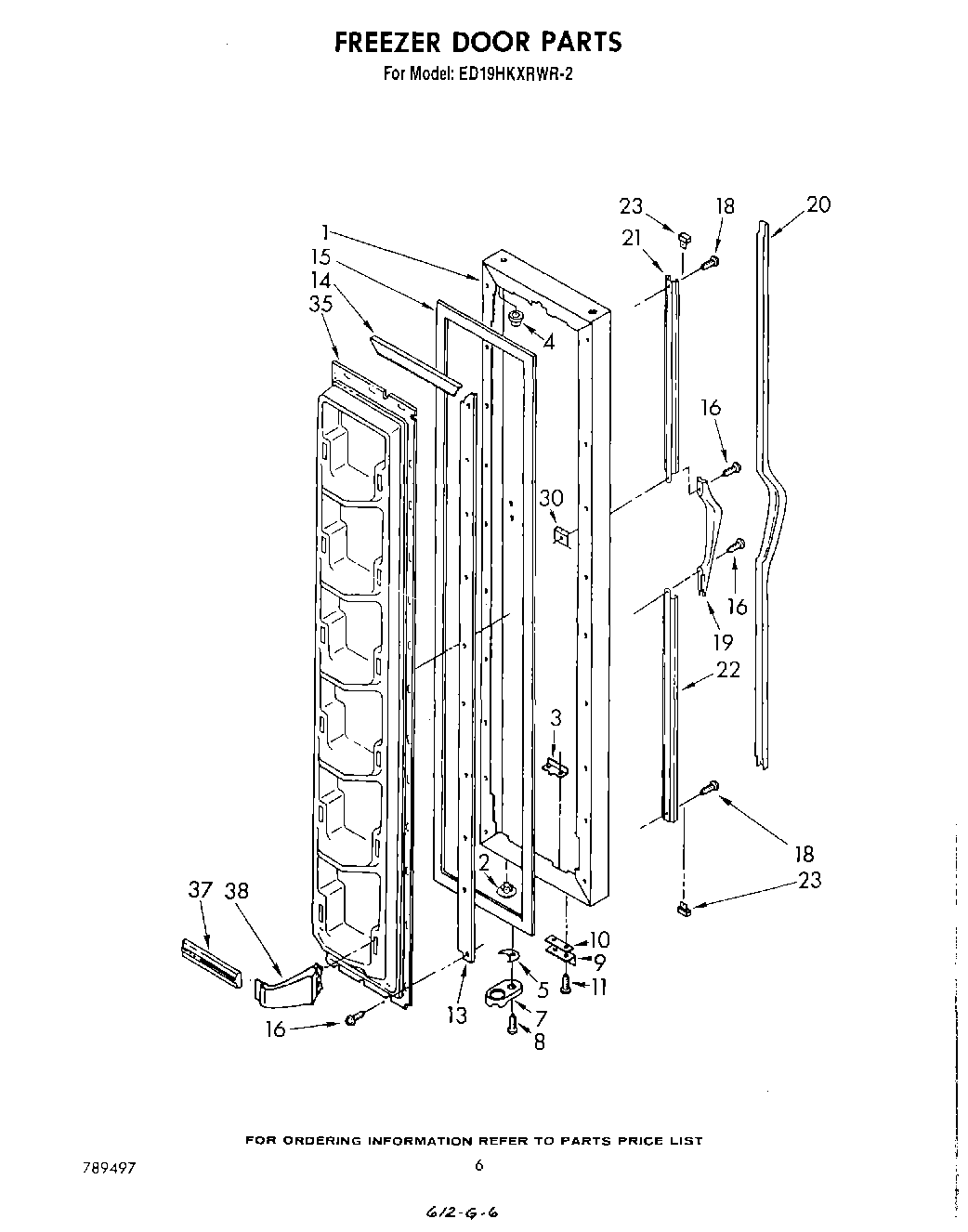

ED19HKXRWR2 04 – FREEZER DOORadmin2025-04-26T11:50:23+00:00ED19HKXRWR2 04 – FREEZER DOOR
Products
| Position | Product |
|---|
| 1 | Freezer, Door Panel (Toast) |
| 1 | Door, Freezer (Almond) |
| 1 | Door, Freezer (Golden Harvest) |
| 1 | Freezer, Door Panel (Platinum) |
| 1 | Door, Freezer (White) |
| 2 | Hole Plug (2) |
| 3 | Tap Plate |
| 4 | Cap, Hinge Sleeve (2) |
| 5 | WP1104787 Whirlpool Refrigerator Shim |
| 7 | 4318165 Whirlpool Refrigerator Door Closure Cam Kit |
| 8 | WP489069 Whirlpool Compactor Screw |
| 9 | Bracket, Door Stop |
| 10 | Shim |
| 11 | Screw (Repair) |
| 11 | Screw, 89 x 5/8 |
| 13 | Retainer Side, Gasket |
| 14 | Retainer, Top & Bottom Gasket |
| 15 | 2188405A Whirlpool Refrigerator Door Gasket |
| 16 | SCREW |
| 18 | Screw, 10-32 x 5/8 |
| 19 | Handle |
| 20 | Insert Handle (Gold) |
| 20 | Insert, Handle (Golden Harvest) |
| 21 | Retainer, Top |
| 22 | Retainer, Bottom |
| 23 | Cap, Handle (2) |
| 30 | WP939101 Whirlpool Refrigerator Plate |
| 35 | Panel, Interior |
| 37 | Trim, Door Shelf |
| 38 | WP849996 Whirlpool Refrigerator Endcap Trim |
