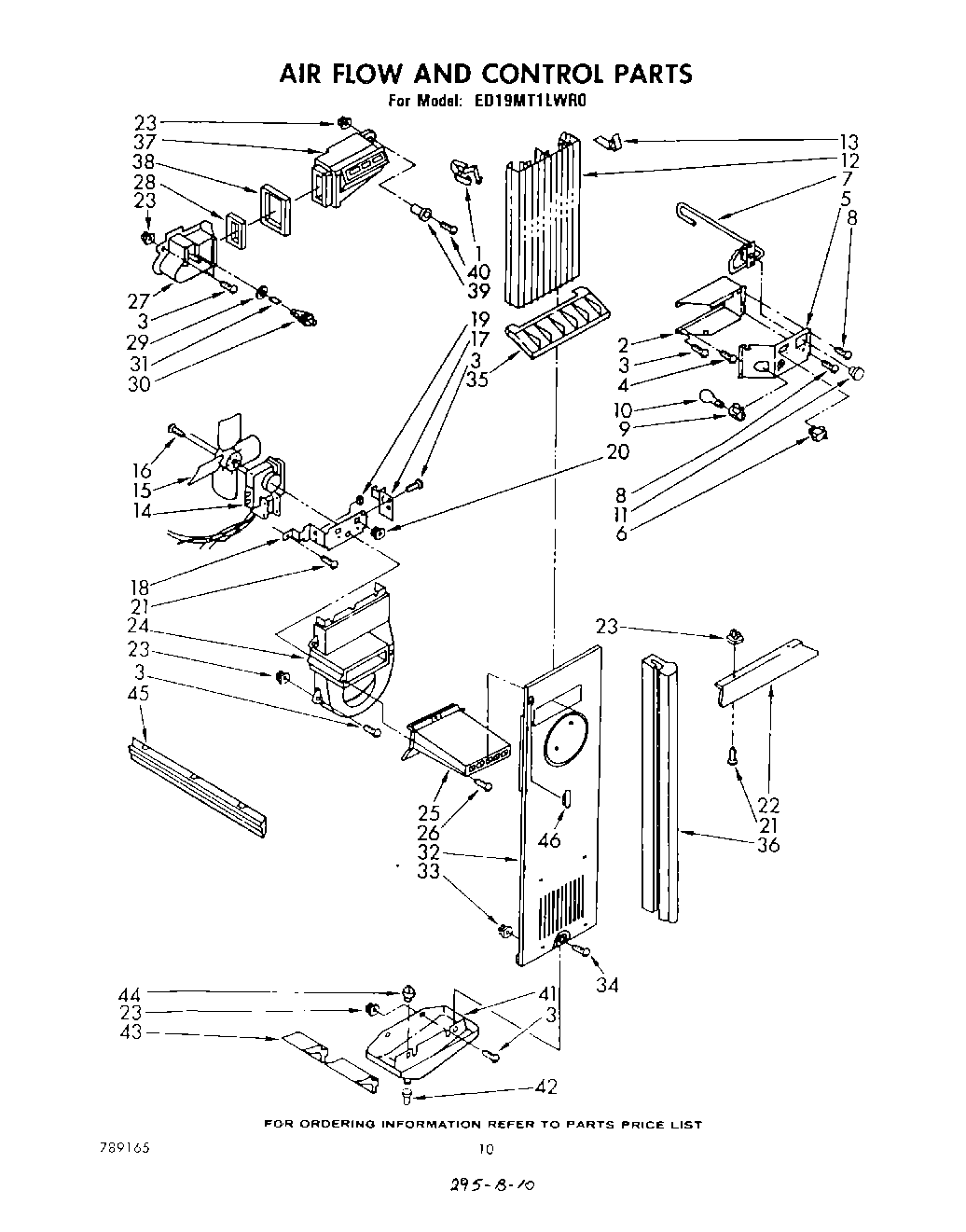

ED19MT1LWR0 06 – AIR FLOW AND CONTROL, LIT/OPTIONAL

ED19MT1LWR0 06 – AIR FLOW AND CONTROL, LIT/OPTIONAL

Written by

in

ED19MT1LWR0 06 – AIR FLOW AND CONTROL, LIT/OPTIONAL

Products

PositionProduct
12215823 Whirlpool Refrigerator Clip
2Box, Control
3W11624204 Whirlpool Screw
4Screw, 8-32 x 3/8
5Control Box Front
6WP938213 Whirlpool Refrigerator Power Switch
7WP4317800 Whirlpool Refrigerator Thermostat
8WP489128 Whirlpool Refrigerator Screw
94387478 Whirlpool Refrigerator Light Socket
10RANGE ONLY 40W 120V APPL BULB
11Knob, Temperature Control
12Air Duct
13Baffle, Air
14482469 Whirlpool Refrigerator Evaporator Fan Motor Kit
15Blade, Fan
16WP487887 Whirlpool Refrigerator Screw
17Fan, Bracket Double
18Fan Bracket, Single
19Grommet (3)
20Screw Grommet
21WP489069 Whirlpool Compactor Screw
22Baffle, Liner Top
23Grommet
24Scroll, Fan
25Air, Duct Extension
26WP488729 Whirlpool Refrigerator Door Screw
27Air Scoop Assembly
28Gasket, Air Scoop
29Retainer, Damper
30Control Knob
31Knob, Retainer
32Cover, Evaporator
33Screw, Grommet
35End Cap, Evaporator
36Gasket, Evaporator Cover
37Air Diffuser Assembly
38Gasket, Air Diffuser
39836667 Whirlpool Refrigerator Spacer
40Screw, 8 x 1-1/4 (3)
41Drain Pan
42Fitting, Drain Pan
43Gasket, Drain Pan
44Cap, Drain
45Cover, Exchanger
46Golden Harvest (Uncut)
46Toast
46Hole Plug
46Enamal, Toast (1 Qt. Uncut)
46WPL 799351
46Kit, Evaporator Repair (Aluminum Epoxy)
46Transformer (115-230 Volt)
46Paint, Spray (13 Oz.) (Platinum)
4672110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
46WPL 789165
46Energy Guide
46Consumer Checklist
46WPL 946693
46WPL 943291
46350956 Whirlpool Spray Assembly
4672017 Whirlpool Appliance Touch-Up Paint White
46799344 Whirlpool Refrigerator Paint
46WP72107 Whirlpool Touchup
46Leveler (Thinner)
46Golden Harvest
46Almond (Uncut)
46Platinum (Uncut)
46WPL 72112
46WP542638 Whirlpool Refrigerator Grease
46TAPE, VINYL (3/4 X 108“)
46CEMENT, ALUMILASTIC (1 1/4 OZ.)
46Enamel, Black (1 Qt. Uncut)
46WPL 799832
46WPL 876029
4672032 Whirlpool Touch Up Paint Black
4672109 Whirlpool Dacor Avocado Touch-Up Paint
46Paint, Touch-Up 1/2 Oz. (Coffee)
46Paint, Spray 13 Oz. (Avocado)
46Enamel, Coffee (1 Qt. Uncut)
46Enamel, New Avocado (1 Qt. Uncut)
46WP505587 Whirlpool Refrigerator Sealer
46212643 Whirlpool Refrigerator Permagum Sealer
46350942 Whirlpool Spray Paint
46511873 Whirlpool Refrigerator Paint
46606755 Whirlpool Refrigerator Bag
46350930 Whirlpool White Spray Paint
46833938 Whirlpool Refrigerator Terminal
46876370 Whirlpool Refrigerator Insulation
46285006 Whirlpool Spray
46Silicone (Spray)
46WP503695 Whirlpool Refrigerator Sealer
46paint, spray 13 oz. (coffee)
